AR41.10-P-0200T Replace Centering Sleeve

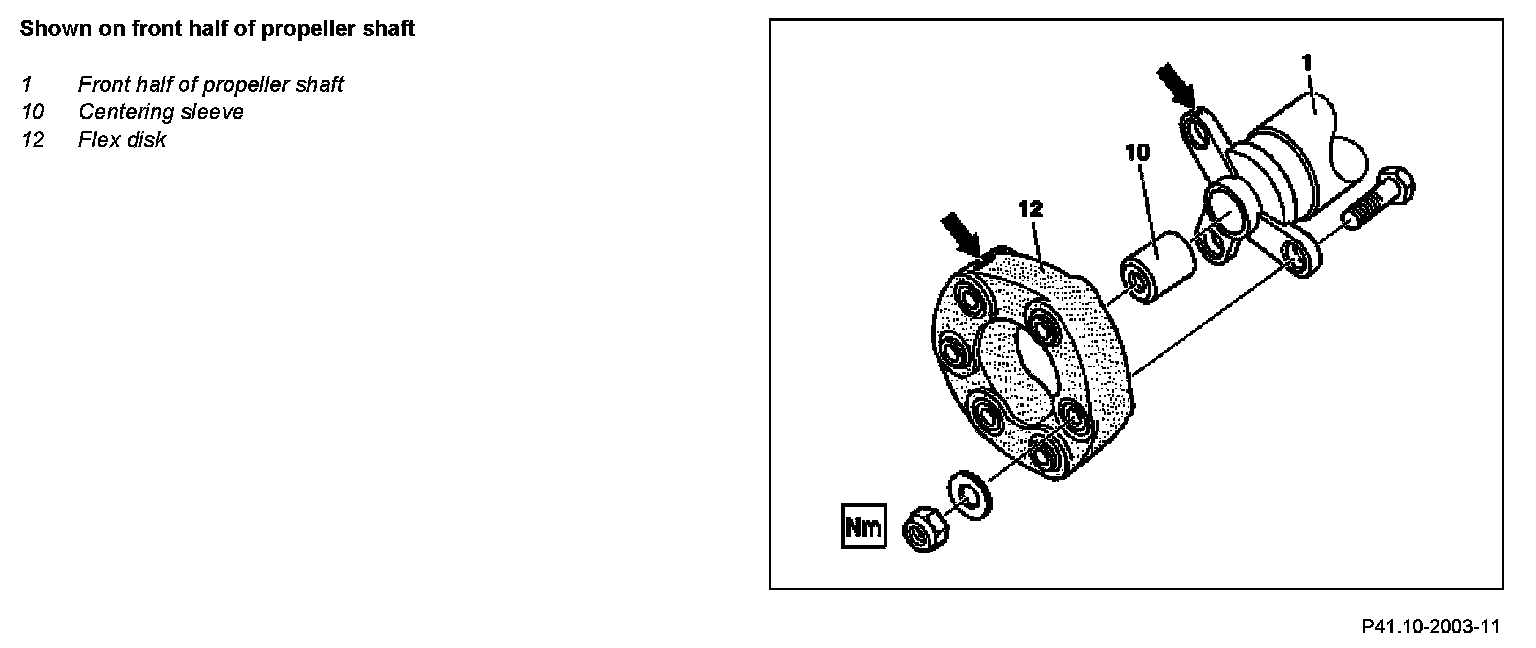

Component Identification:

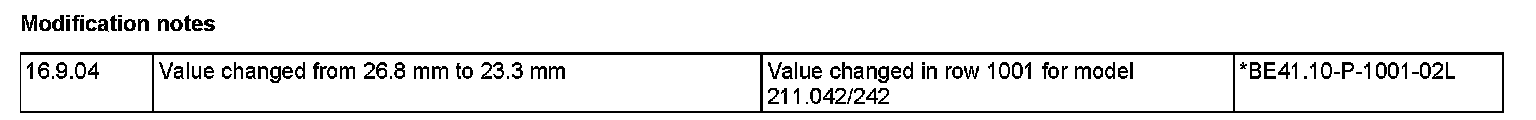

Modification Notes:

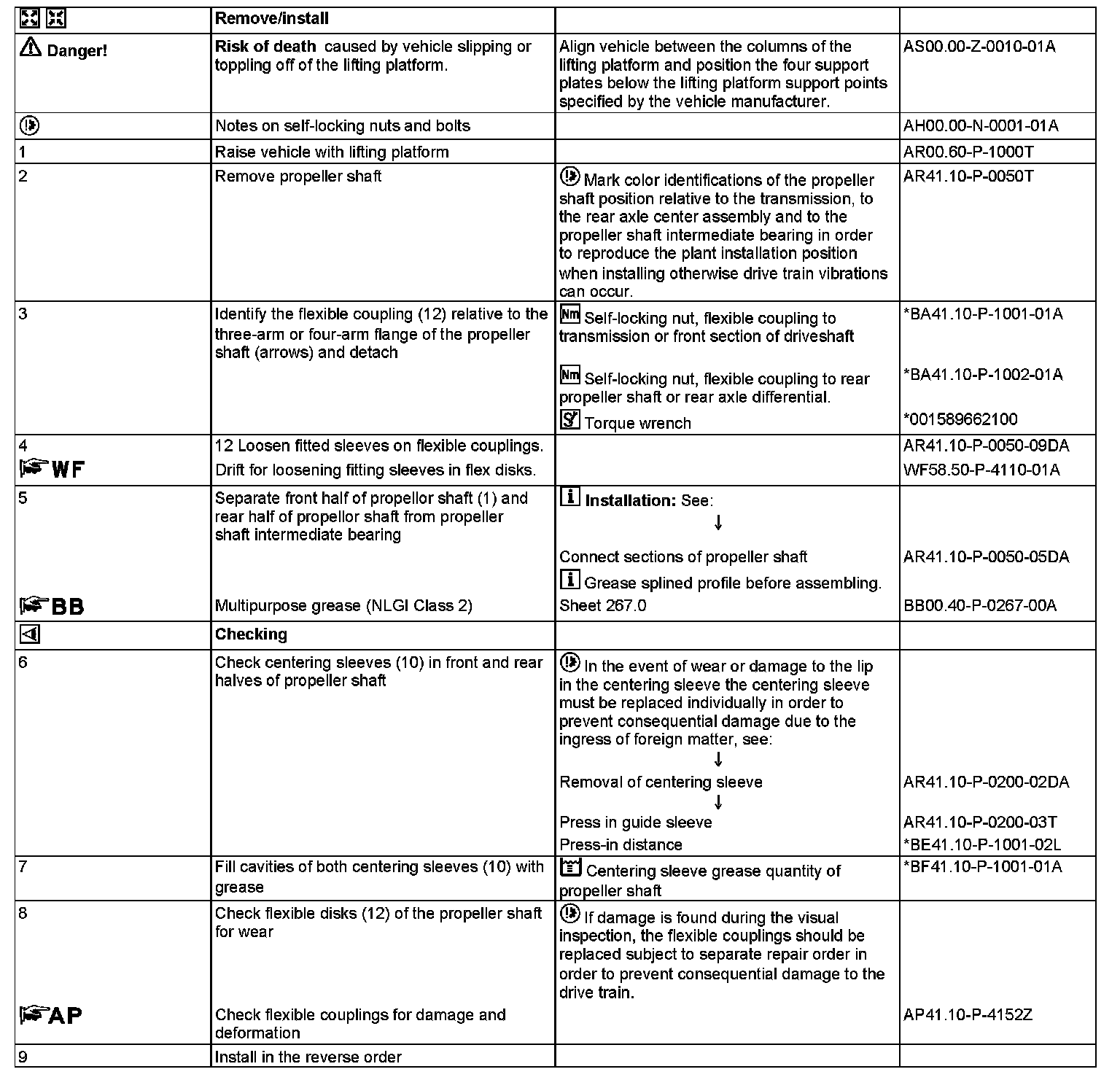

Steps 1-9:

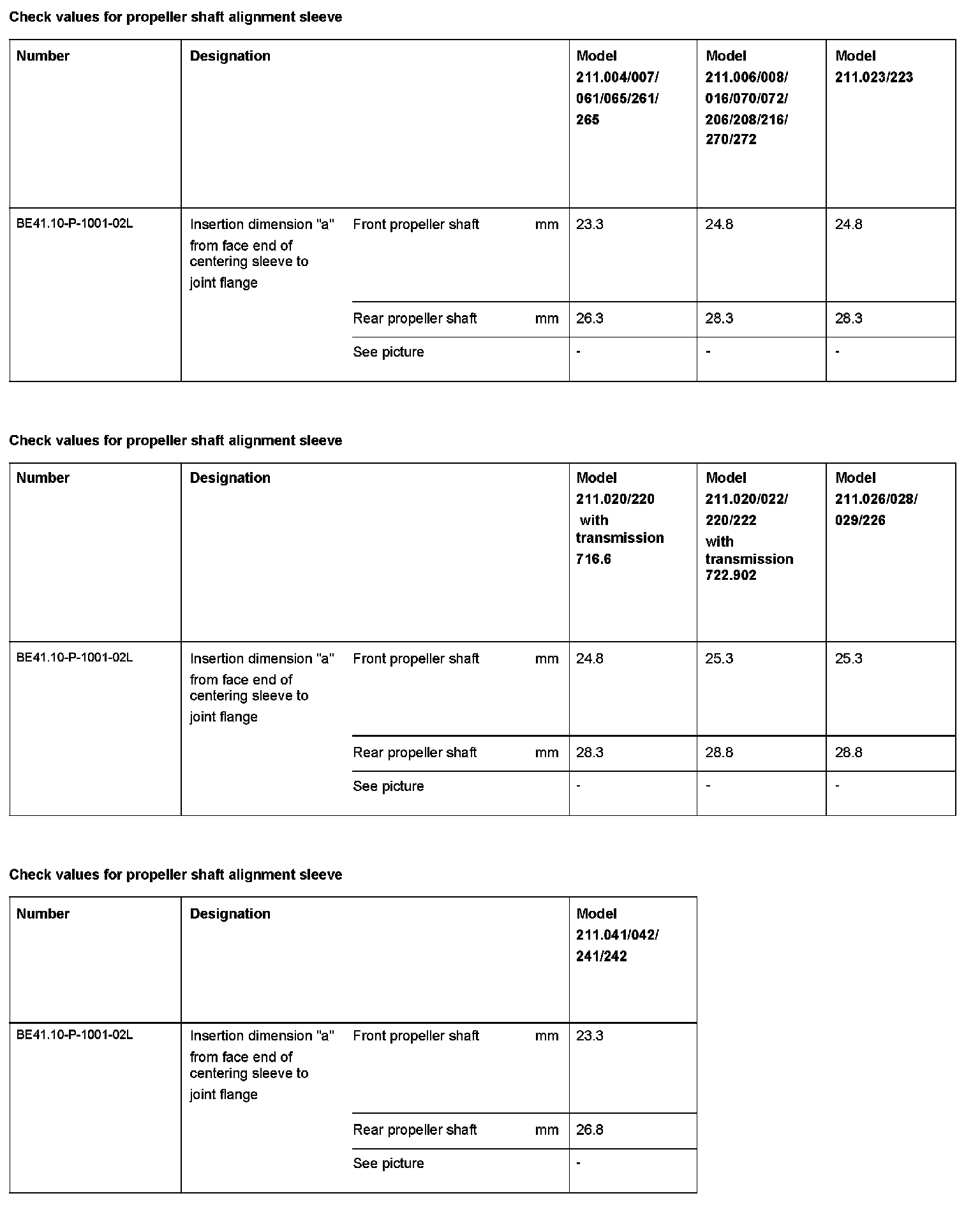

Check Values For Propeller Shaft Alignment Sleeve:

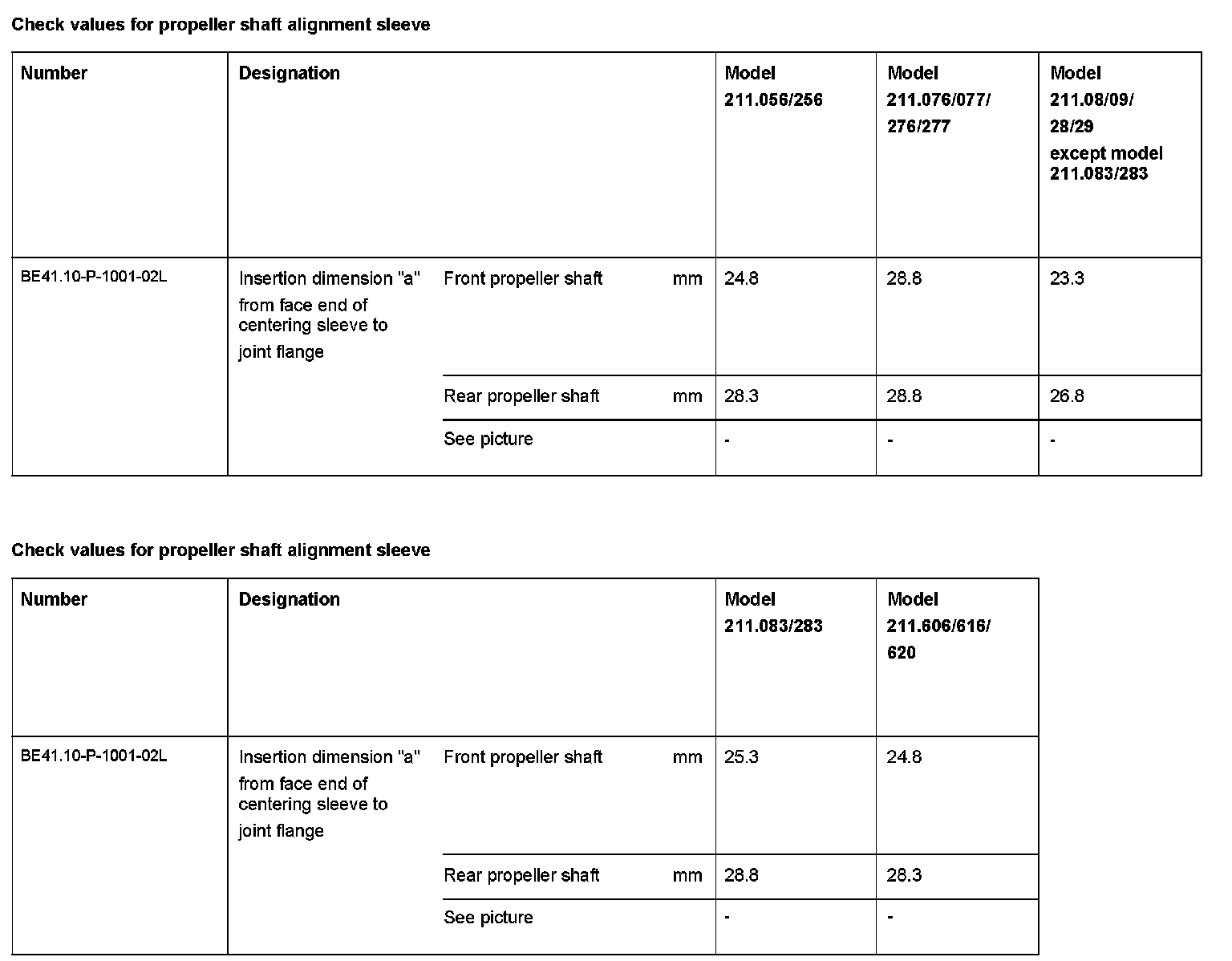

Check Values For Propeller Shaft Alignment Sleeve:

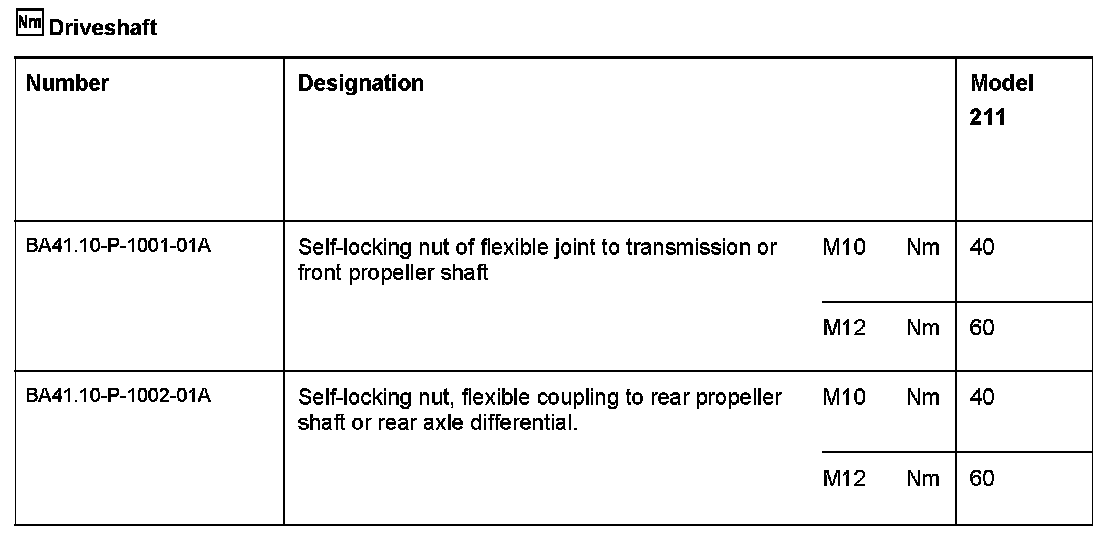

Driveshaft:

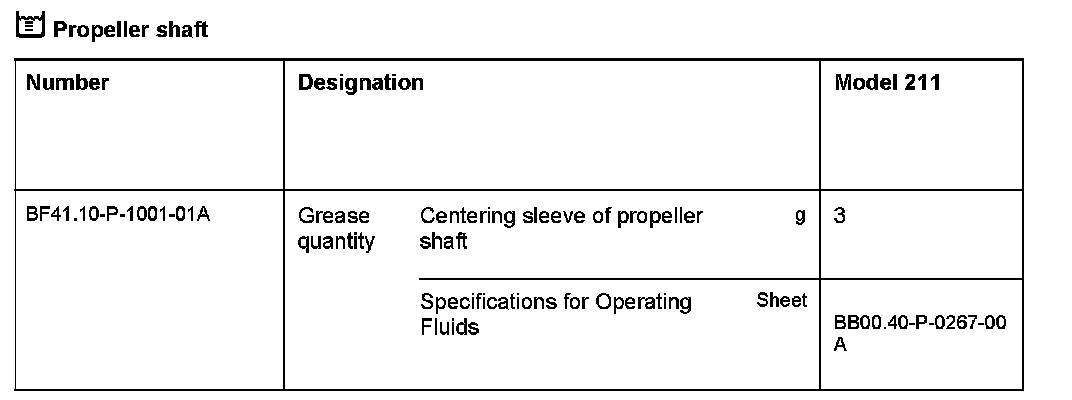

Propeller Shaft:

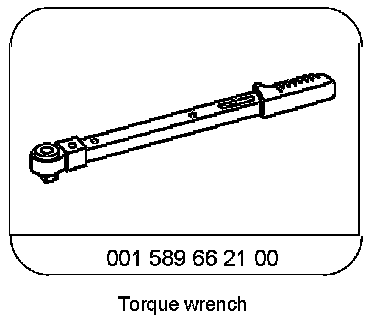

Special Tools:
