AR41.10-P-0050-02T Dismantle Front Propeller Shaft From Transmission

AR41.10-P-0050-02T Dismantle front propeller shaft from transmission

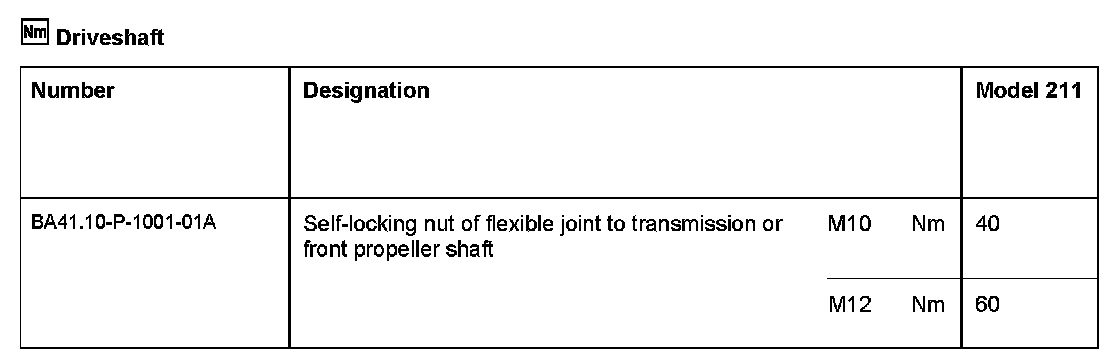

Driveshaft:

Component Identification:

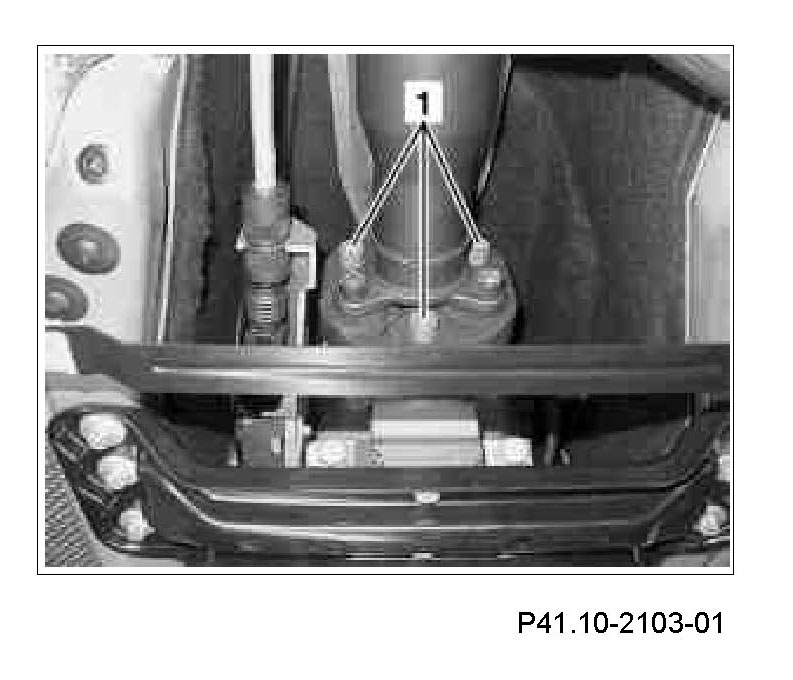

1 Unscrew bolts (1).

The flexible coupling remains on the propeller shaft.

Shown on engine 646.961 in model 211.006 with transmission 716
