Clutch Master Cylinder: Testing and Inspection
AR25.20-P-0102P Check master cylinder for clutch operator (clutch removed)

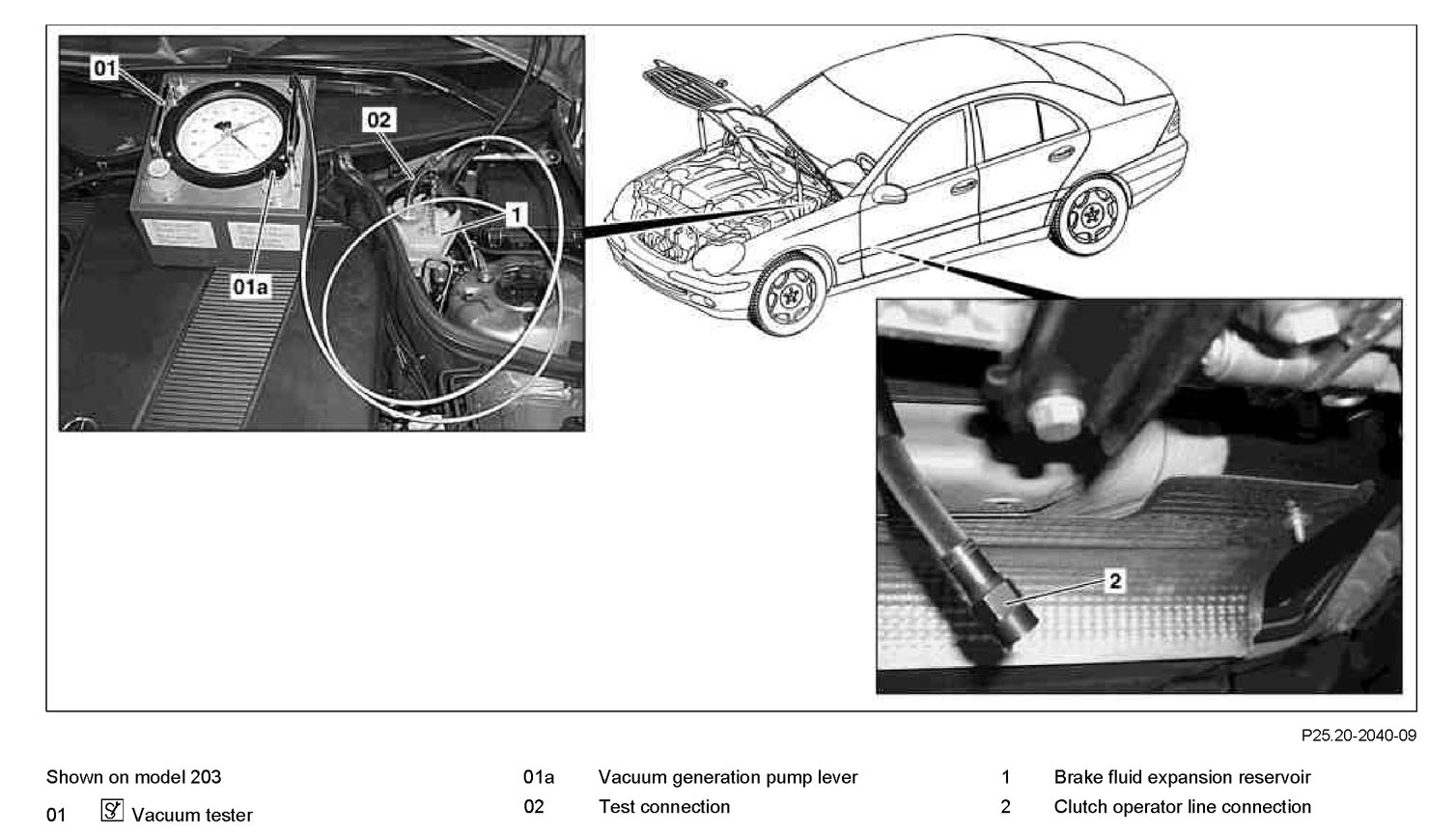

Component Identification:

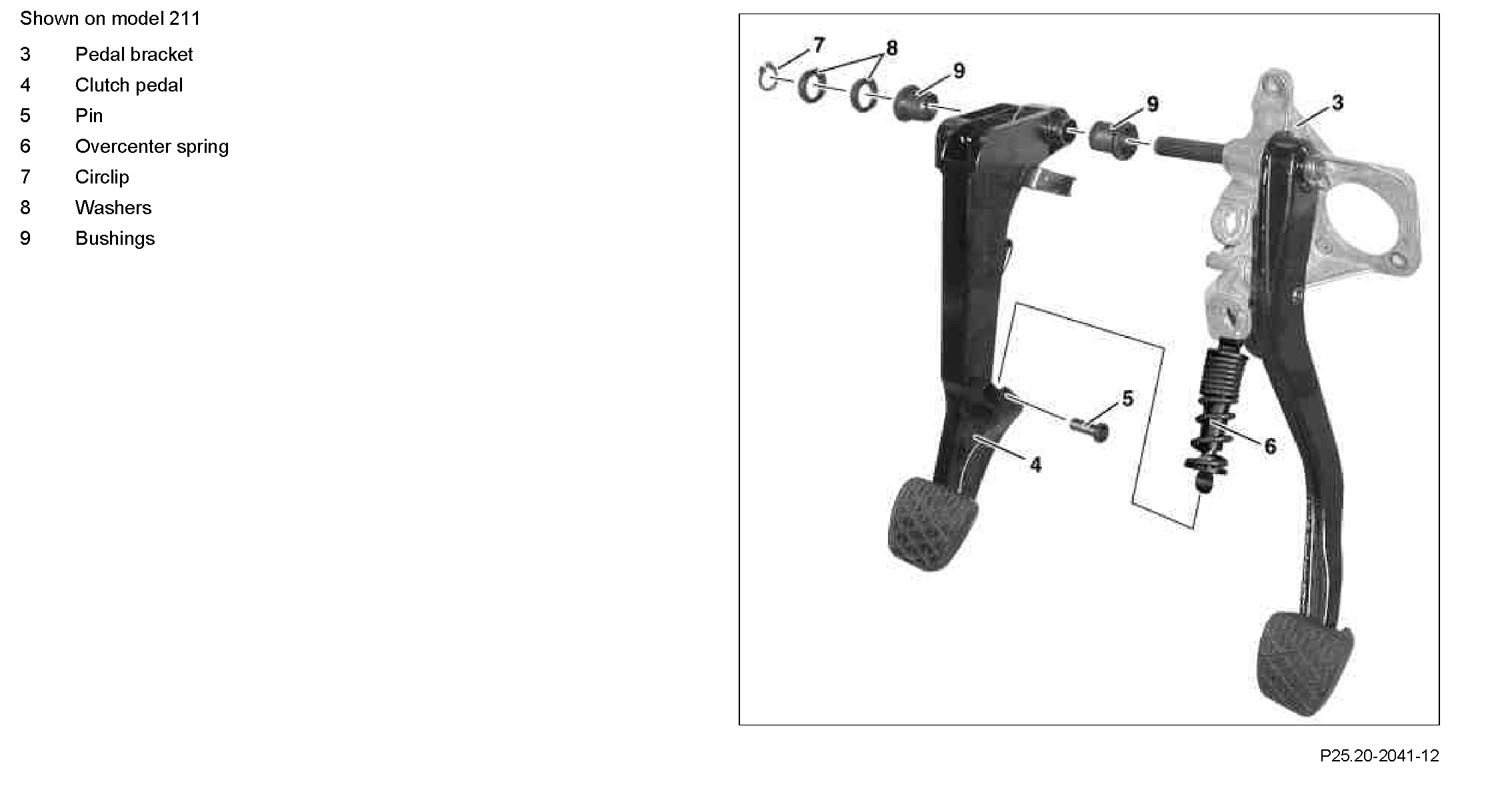

Component Identification:

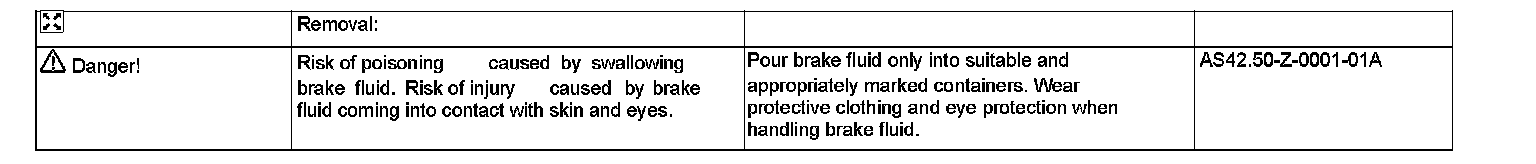

Warning:

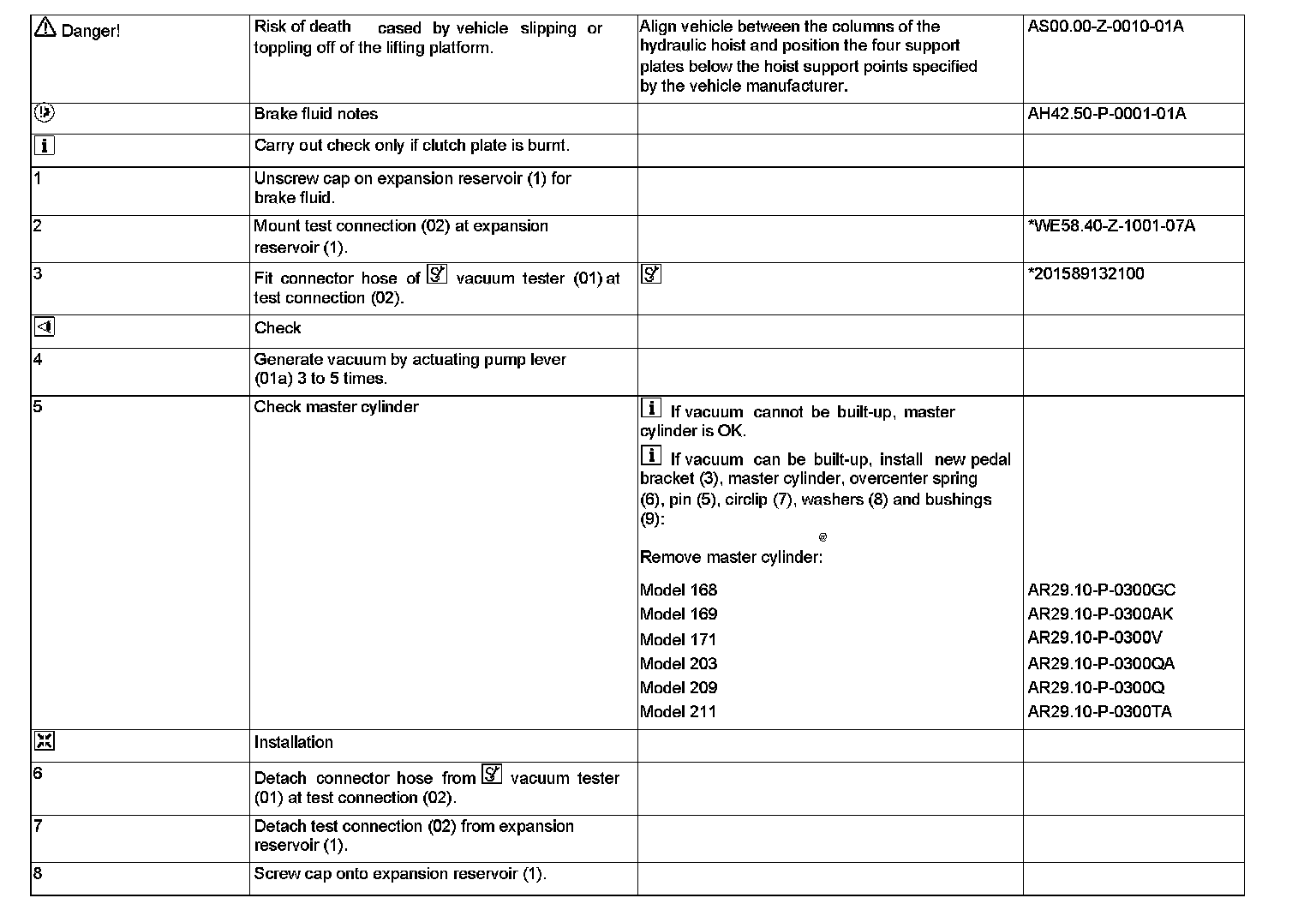

Steps 1 - 8:

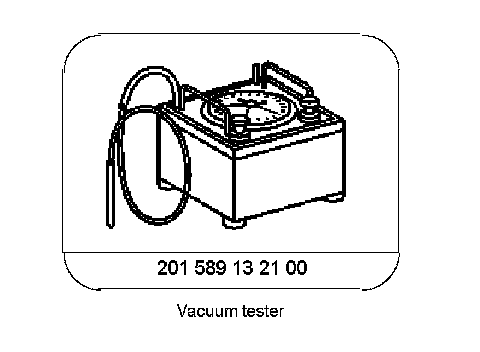

Special Tools:

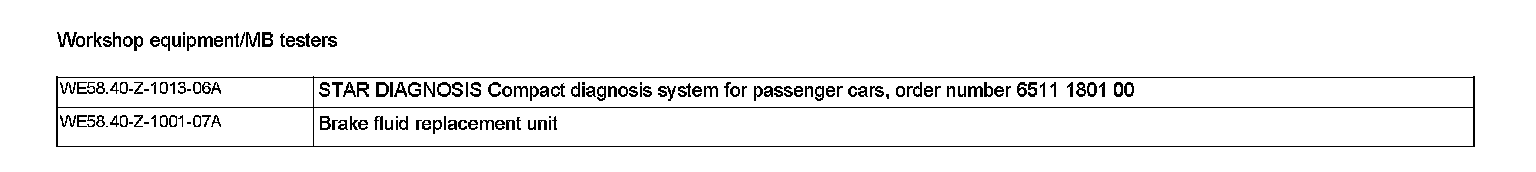

Workshop Equipment/MB Testers:
AR25.20-P-0102P Check master cylinder for clutch operator (clutch removed)
