GF27.19-P-4013N VGS Control Unit, Location/Task
GF27.19-P-4013N VGS Control Unit, Location/Task
GF27.19-P-4013N VGS control unit, location/task
- TRANSMISSION 722.9

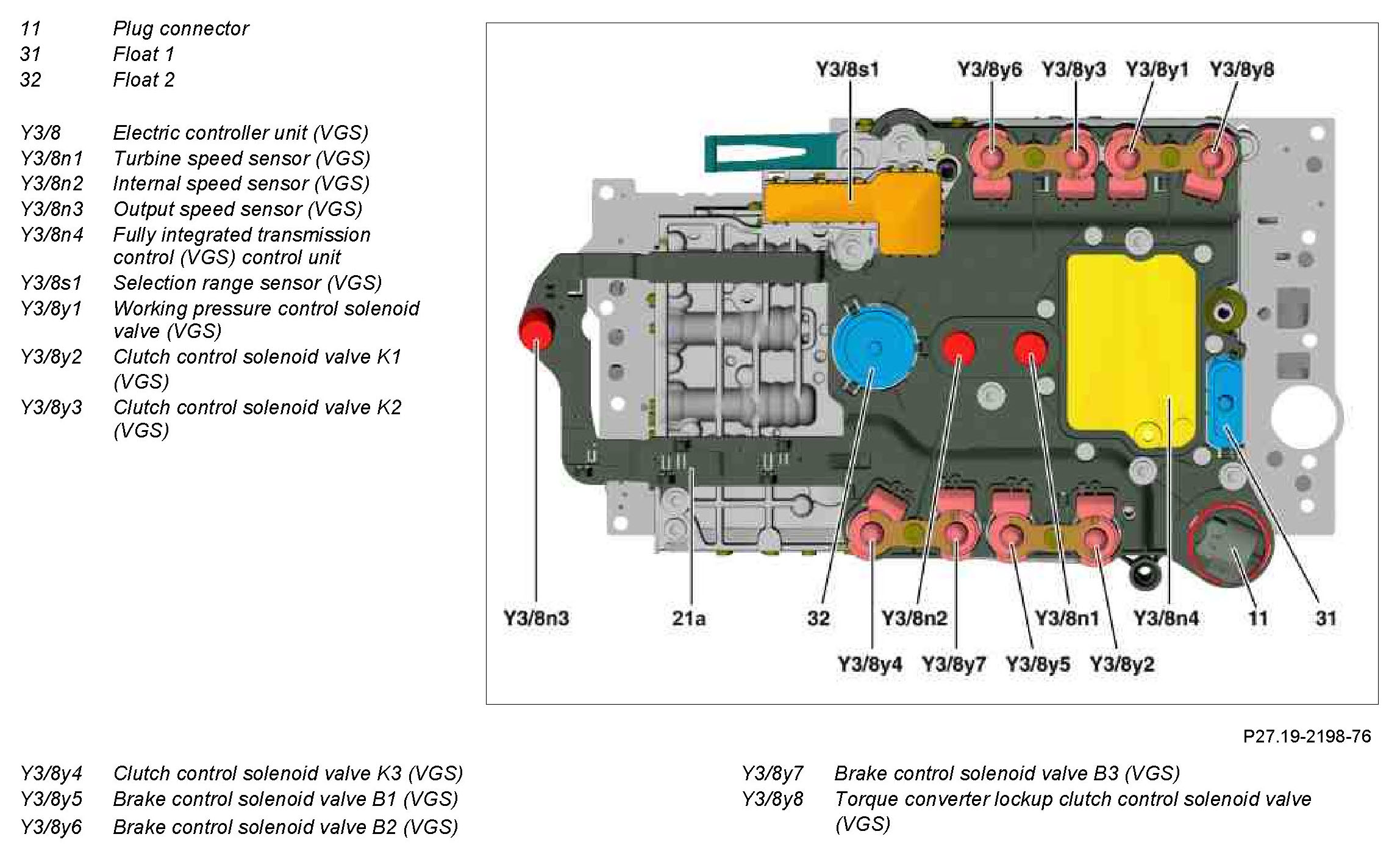

Component Identification:
