Transmission 722.6



AP27.00-P-2702I Automatic transmission - oil and filter change
- with transmission 722.6

Component Identification:

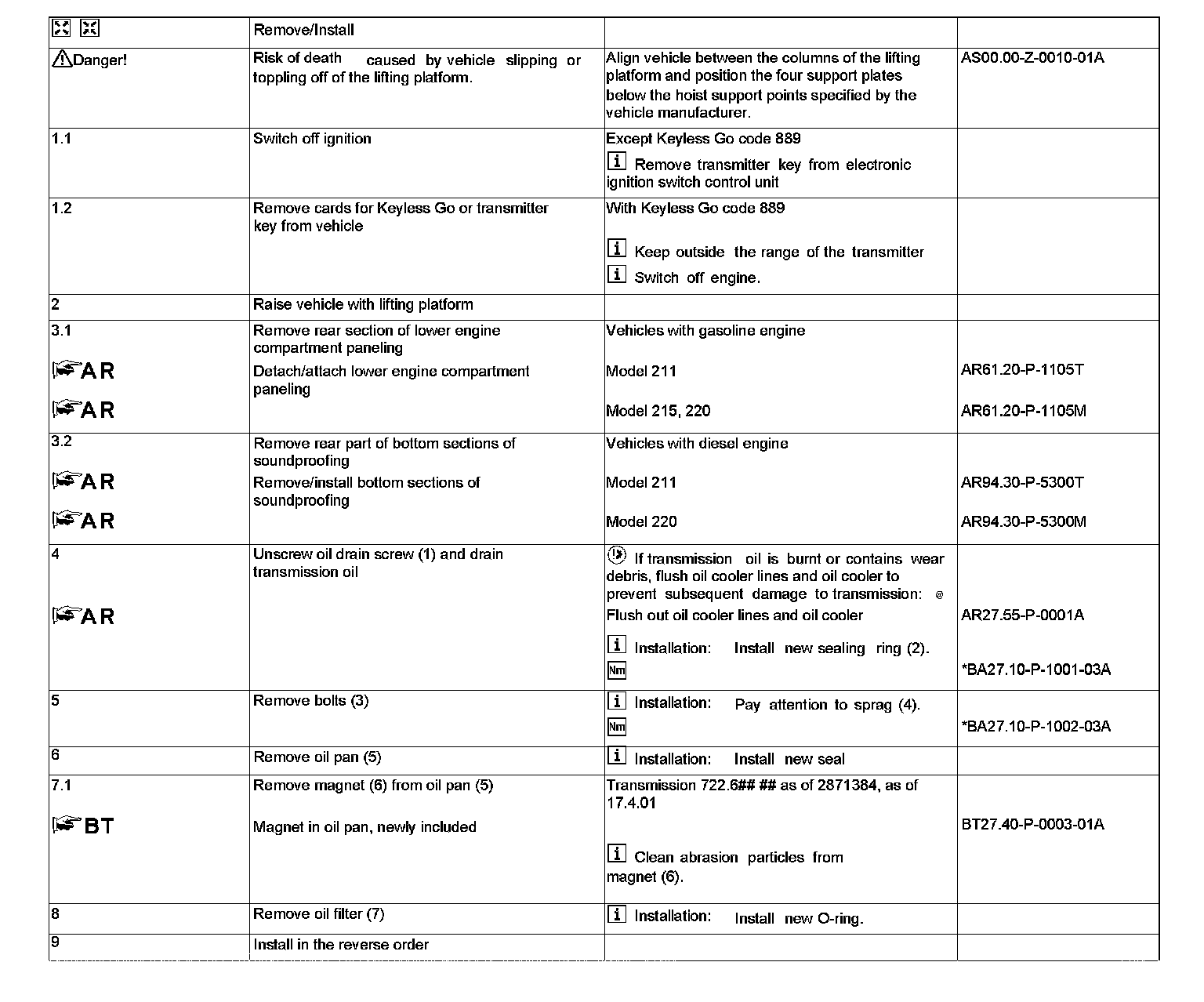

Steps 1.1 - 9:

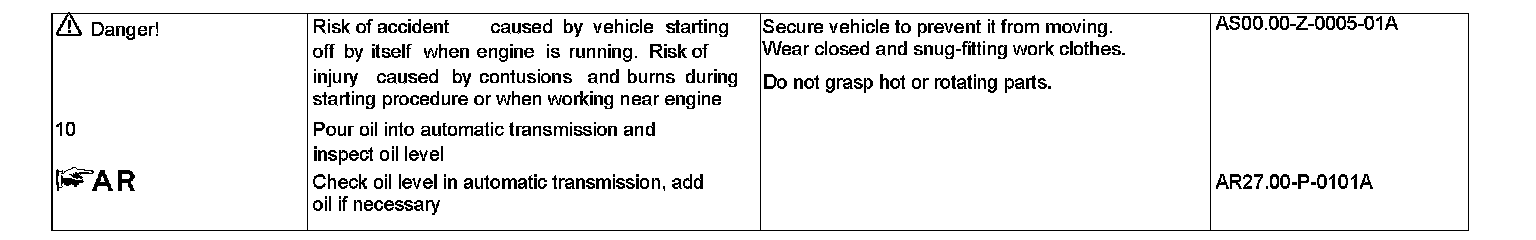

Steps 10:

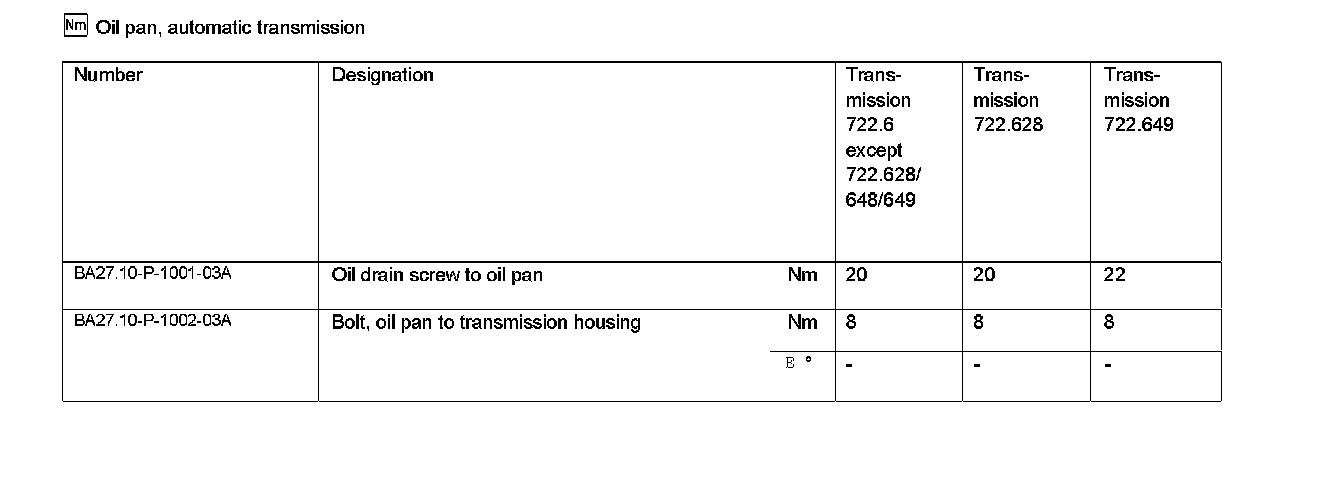

Drain Plug, Trans Oil Pan:
