AR27.00-P-0100AC Check Oil Level In Automatic Transmission and Correct If Necessary


AR27.00-P-0100AC Check oil level in automatic transmission and correct if necessary.




Transmission 722.6

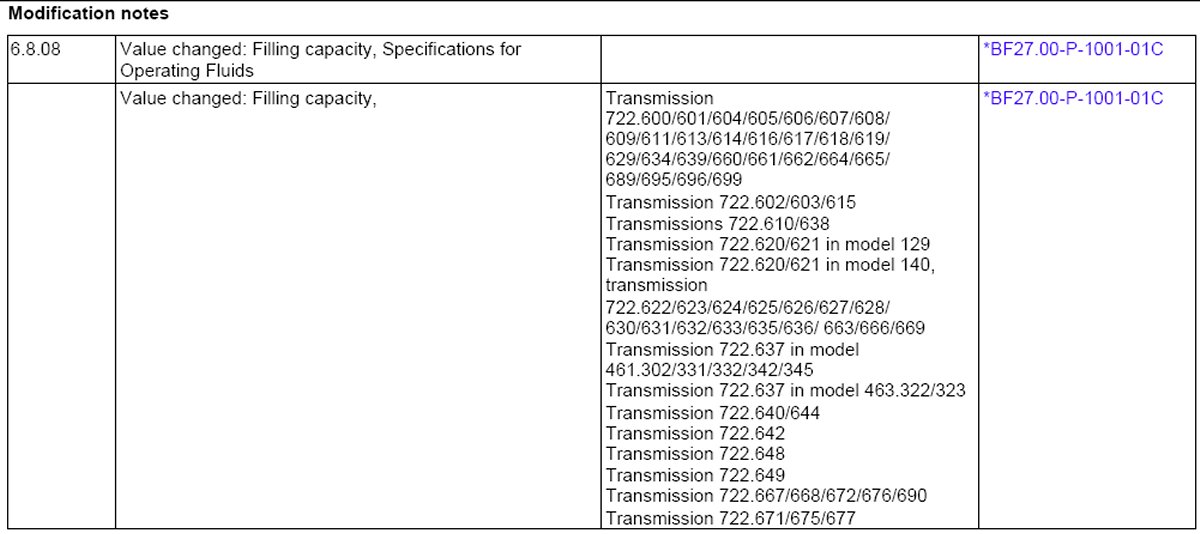

Modification Notes

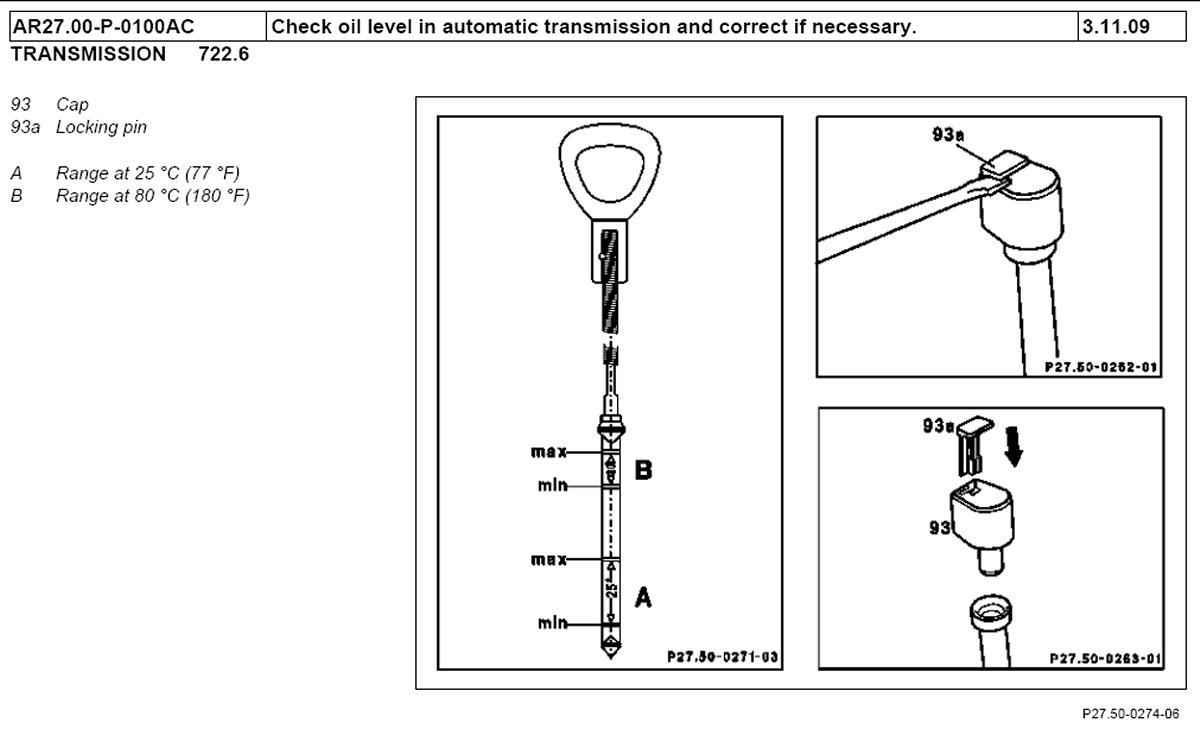

Steps 1 - 5

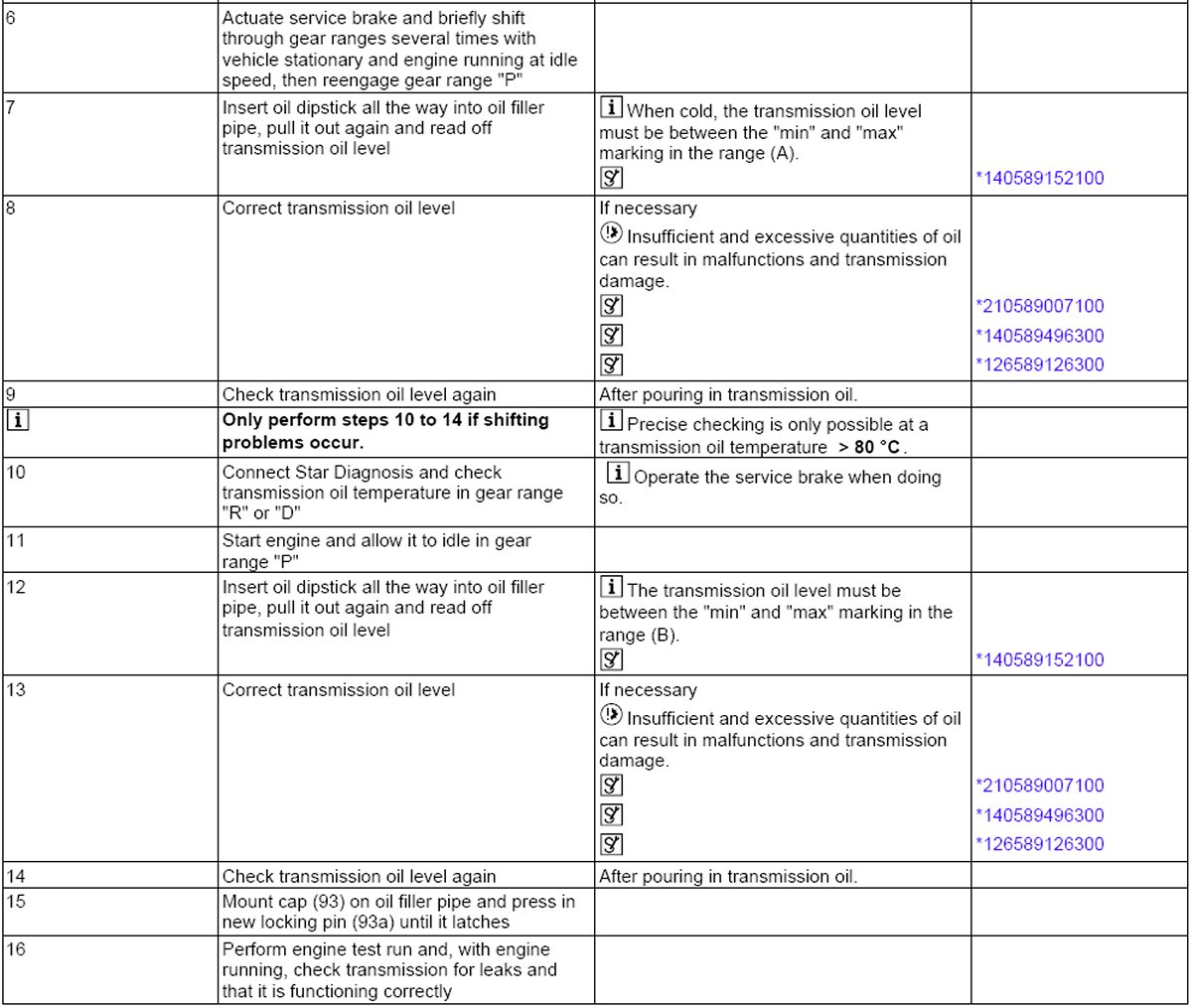

Steps 6 - 16
