GF27.10-P-0001-09AHW Automatic Transmission (AT), Location of Hydraulic Components



GF27.10-P-0001-09AHW Automatic transmission (AT), location of hydraulic components
- Transmission 722.902/906/907/960/962/963/964/998/999

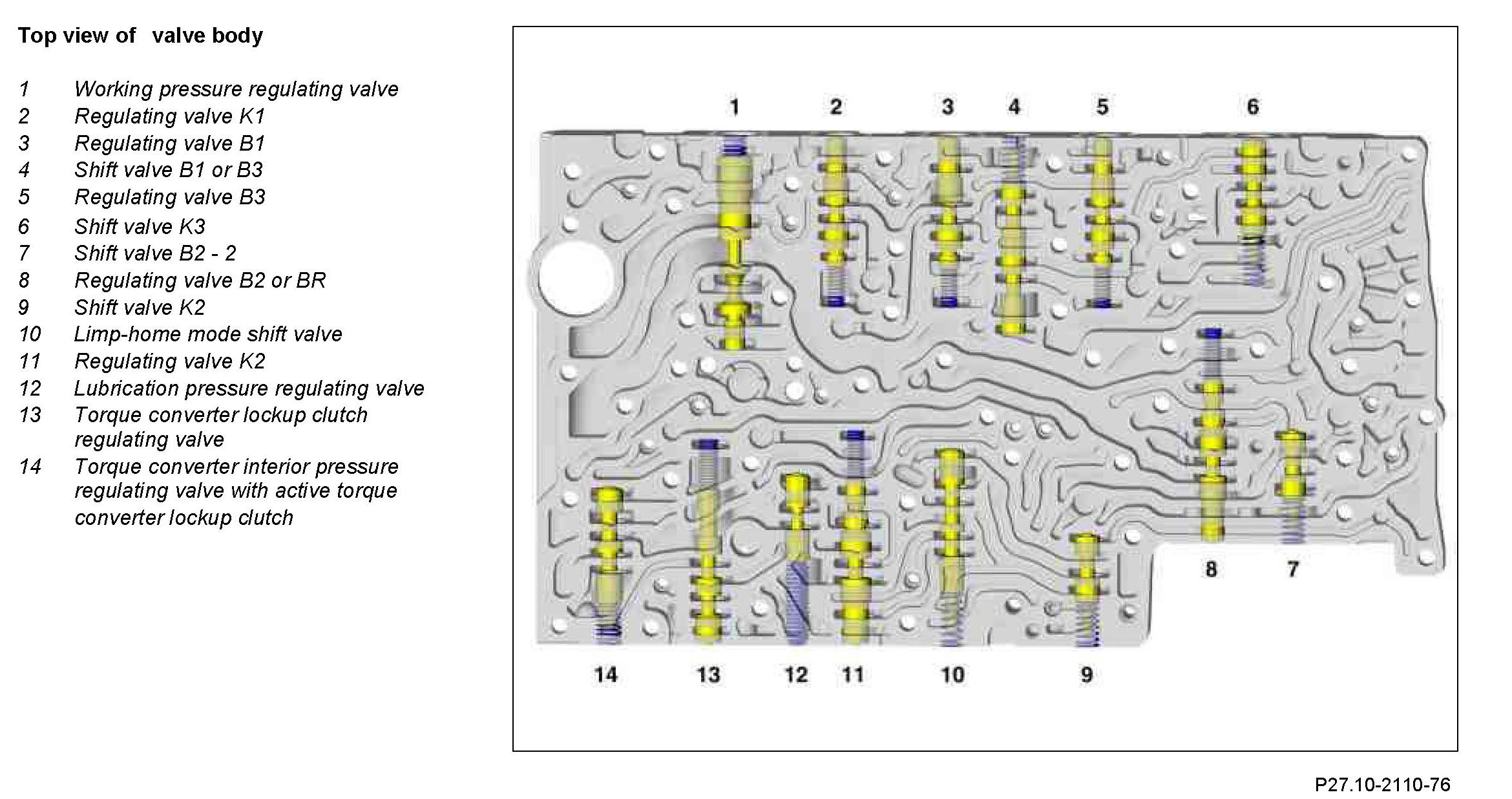

Component Identification:

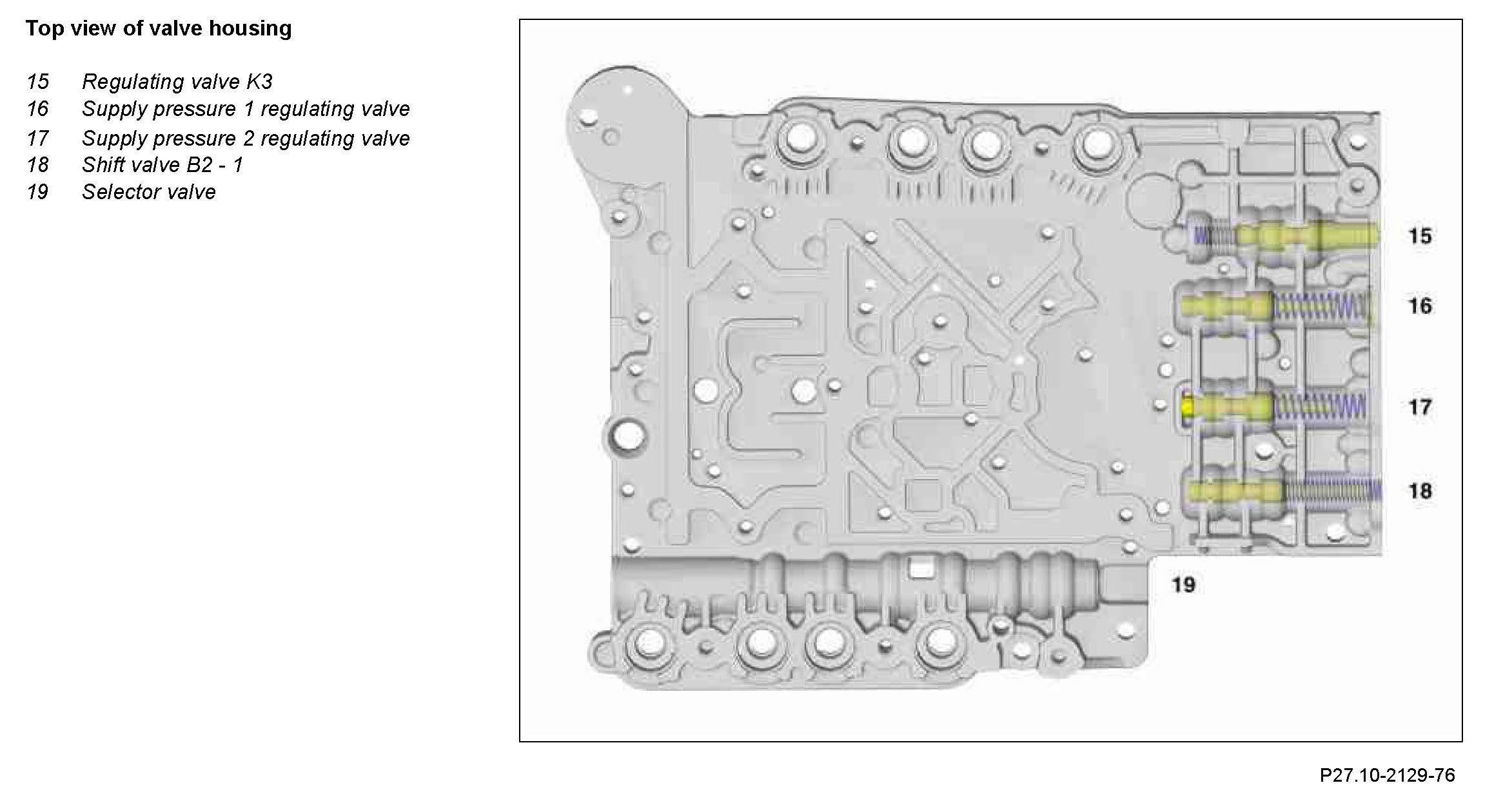

Component Identification:
