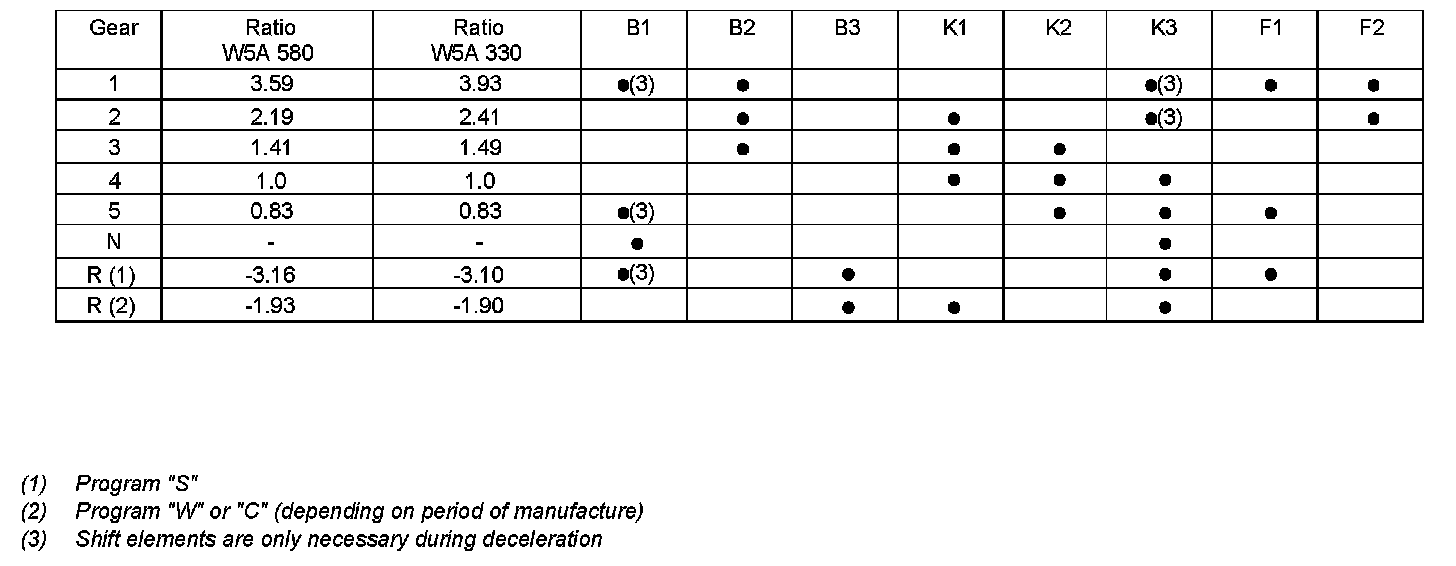

GF27.10-P-0001-01G Automatic Transmission (AT), Gear Ratios
GF27.10-P-0001-01G Automatic Transmission (AT), Gear Ratios
GF27.10-P-0001-01G Automatic transmission (AT), gear ratios
- TRANSMISSION 722.6
