AZ40.10-P-0003T Retrofit AMG Light Alloy Wheels

AZ40.10-P-0003T Retrofit AMG light alloy wheels
- except CODE (Z04) Light armoring
- except CODE (Z06) B6 armoring
- except CODE (Z07) Top protection
- except except 4-MATIC
- with CODE (489) Airmatic (semi-active air suspension_
- with CODE (950) AMG sport package
- with CODE (952) Sport package
- with 4-MATIC

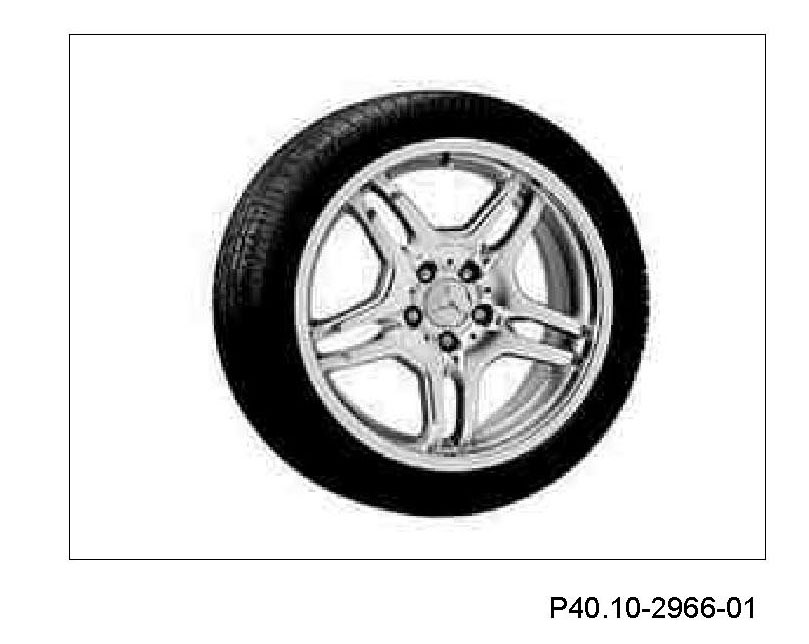

AMG spoked wheel Styling III
8Jx1 8 EH2 ET 30 (B6 603 1220)
9JX1 8 EH2 ET 39 (B6 603 1221)
or
8.5Jx18 EH2 ET 30 (B6 603 1222)
9.5JX1 8 EH2 ET 33 (B6 603 1223)

For possible tires see Technical Inspection Association (TUV) approval certificate.

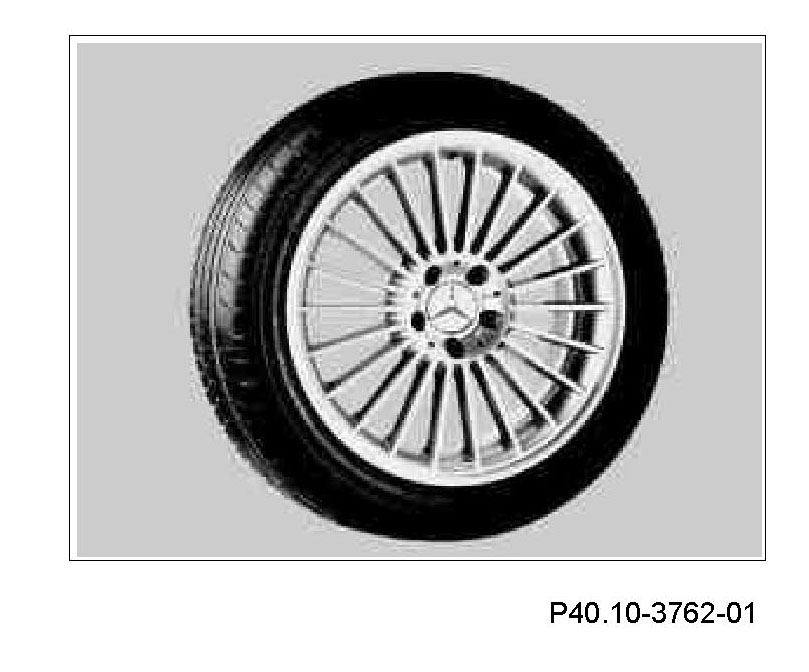

AMG spoked wheel Styling IV
8Jx18 EH2 ET 30 (B6 603 1300)
9Jx18 EH2 ET 39 (B6 603 1301)
or
8.5Jx18 H2 ET 30 (B6 603 1311)
9.5J X18 H2 ET 33 (B6 603 1312)

For possible tires see Technical Inspection Association (TUV) approval certificate.

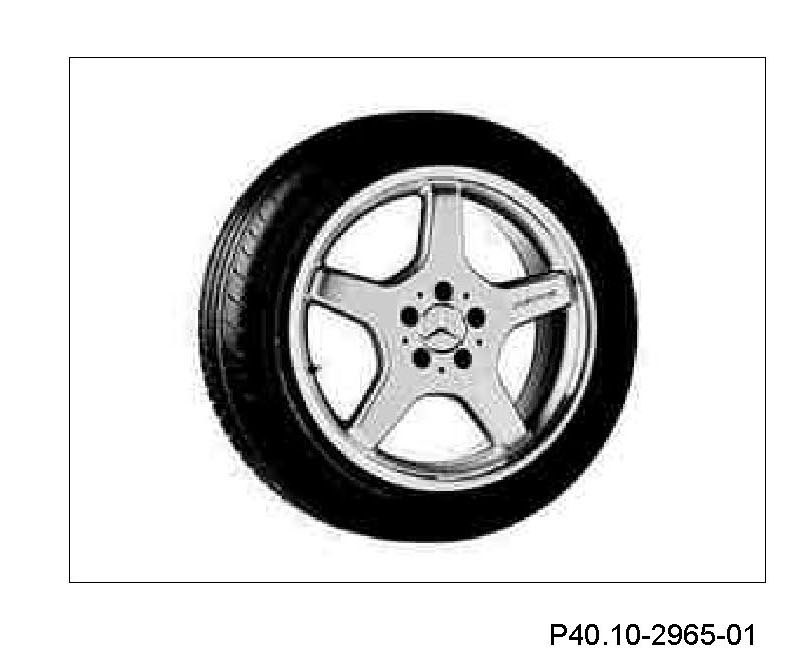

AMG spoked wheel Styling V
8.5Jx18 H2 ET 30 (B6 603 1111)
9.5Jx18 H2 ET 33 (B6 603 1112)

For possible tires see Technical Inspection Association (TUV) approval certificate.

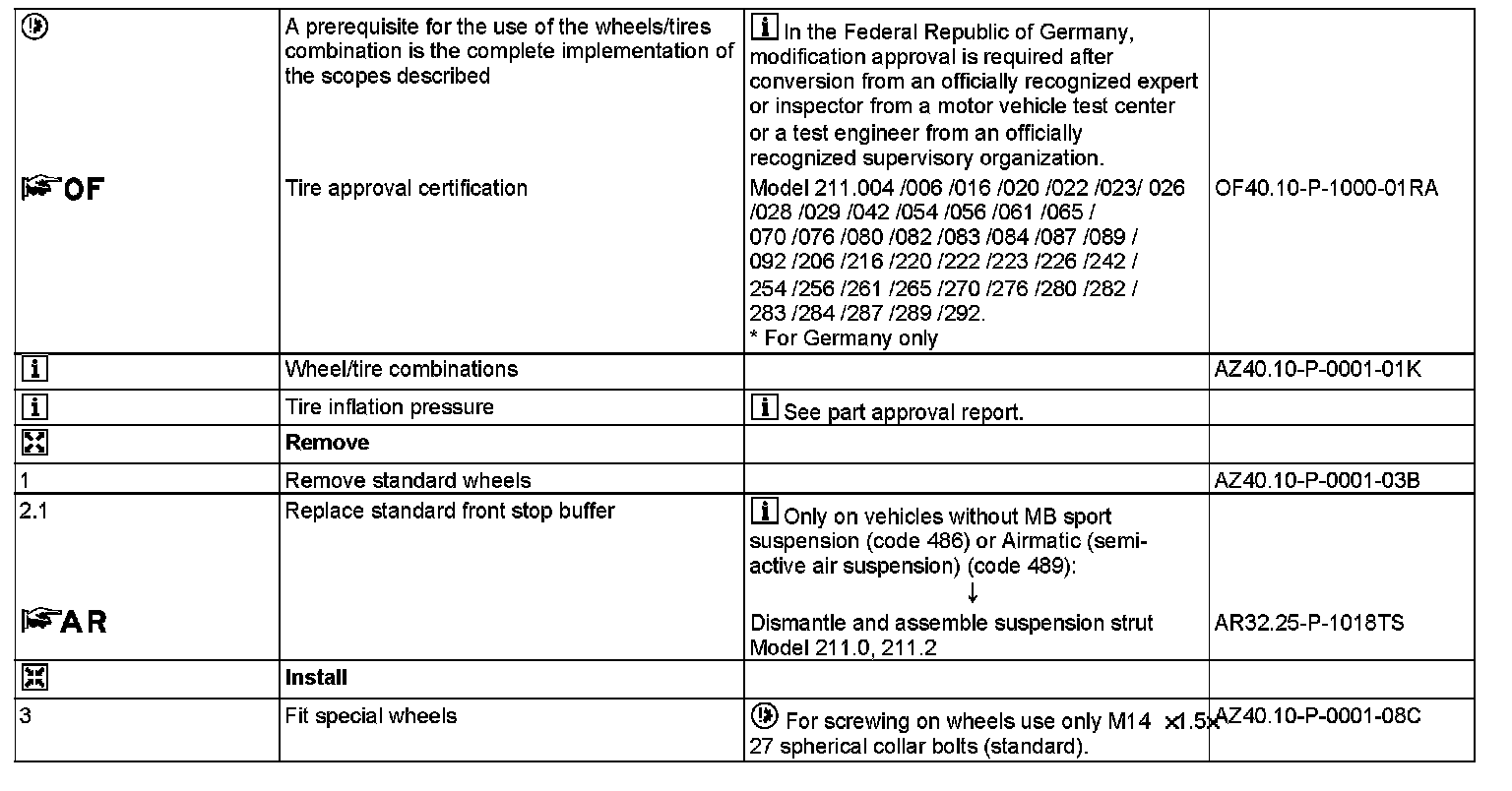

Steps 1-3:

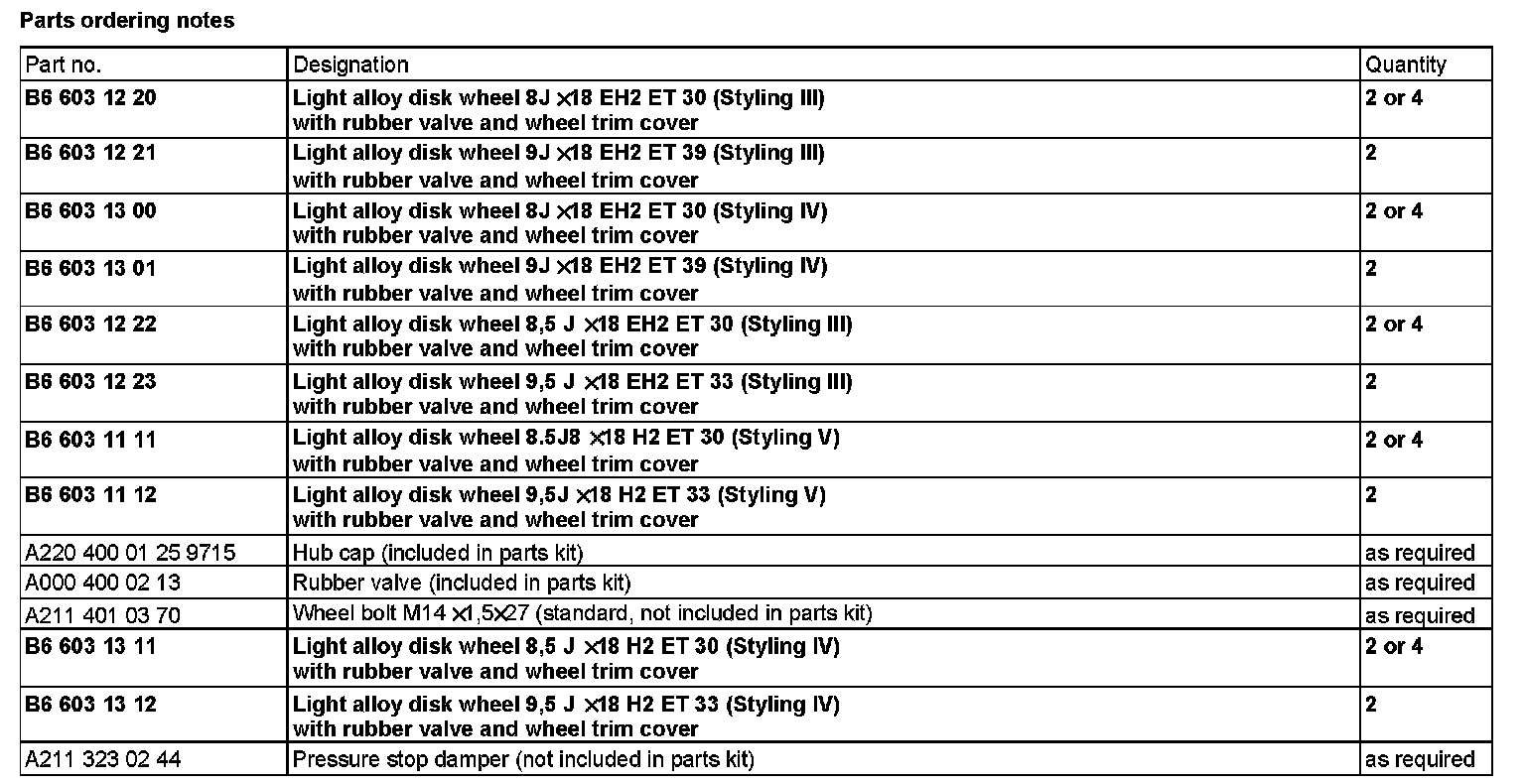

Parts Ordering Notes:
