Suspension Travel Bumper: Service and Repair



AR32.00-P-1000TX Install/remove emergency buffer
- for vehicle axles without steel suspension

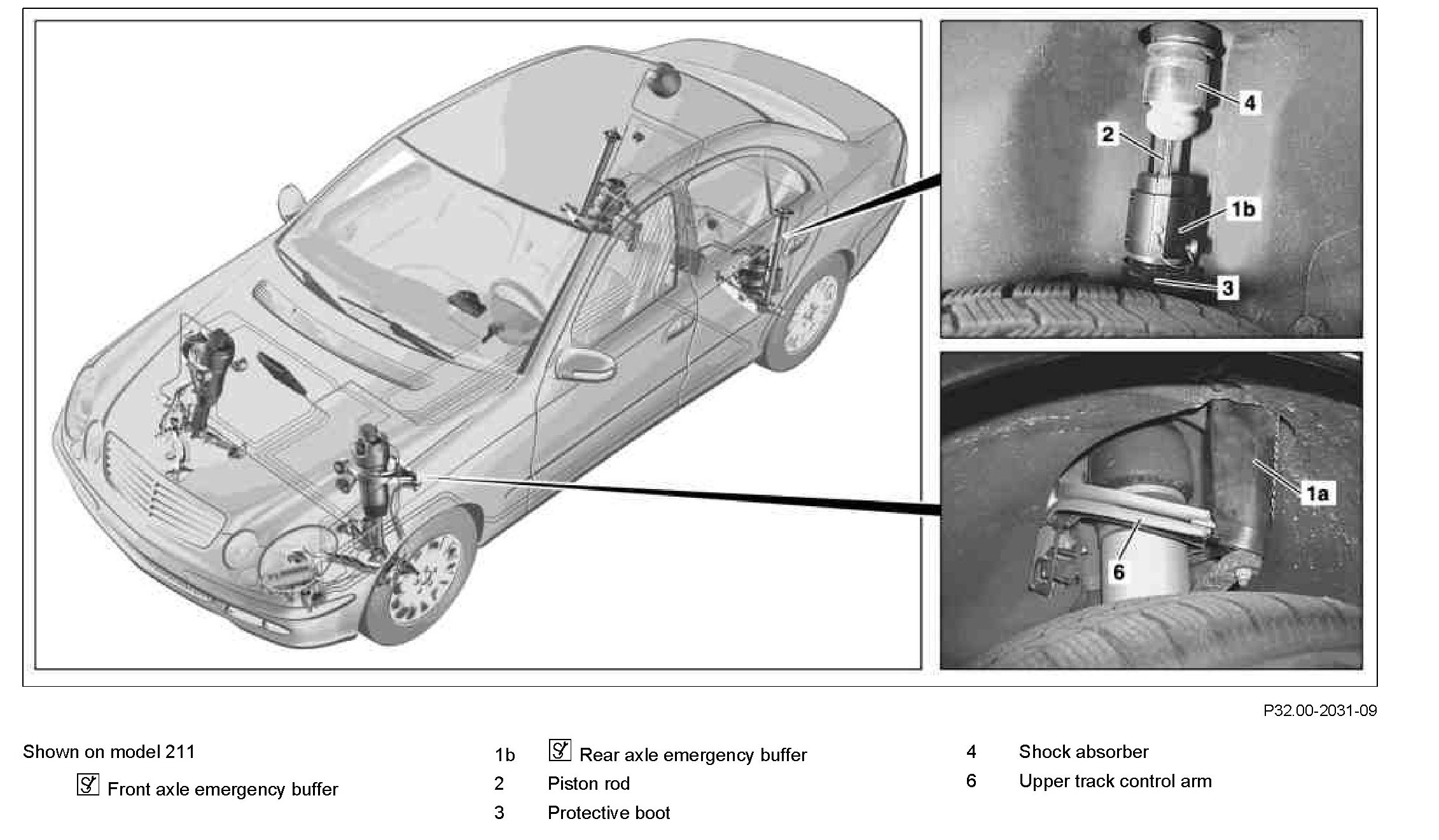

Component Identification:

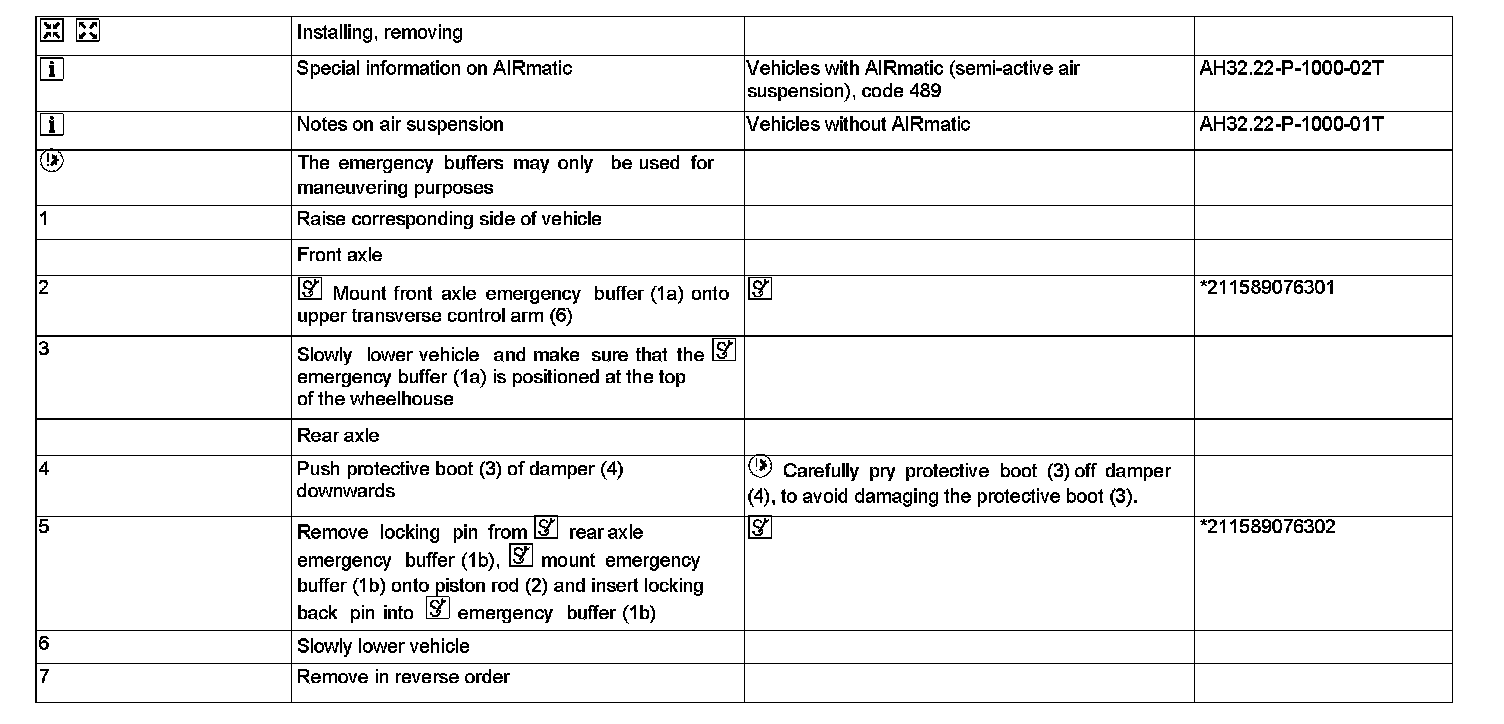

Steps 1 - 7:

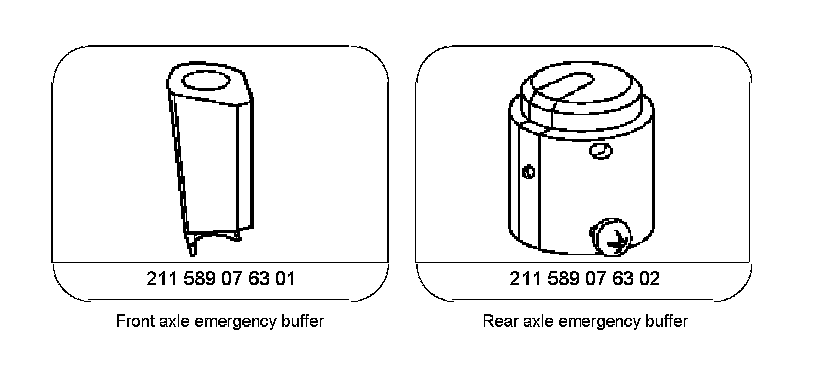

Special Tools:
