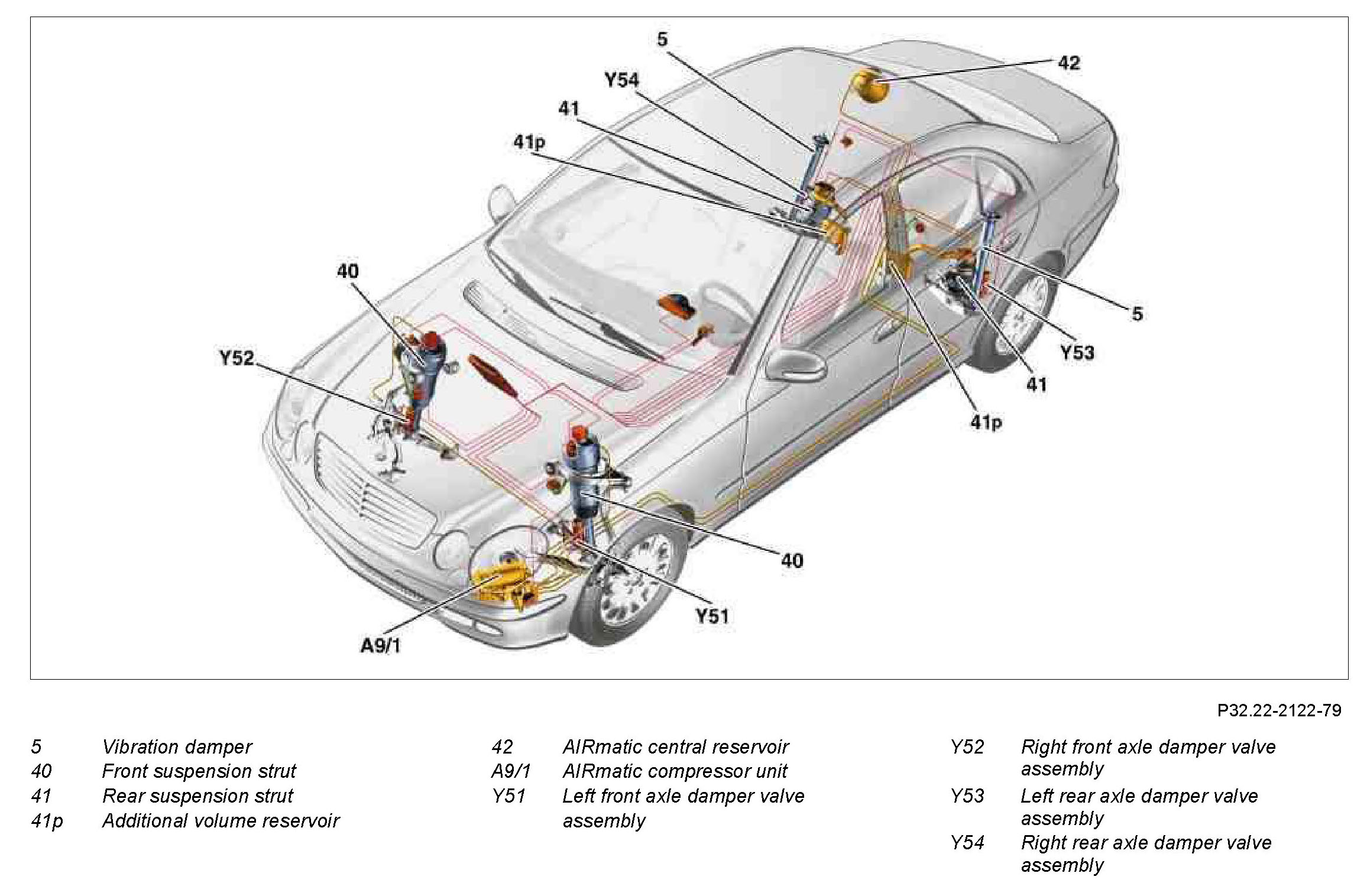

GF32.22-P-0003-02E AIRmatic, Location of Pneumatic/Hydraulic Components



GF32.22-P-0003-02E AIRmatic, location of pneumatic/hydraulic components
- with CODE (489a) Airmatic (semi-active air suspension)


Component Identification:
