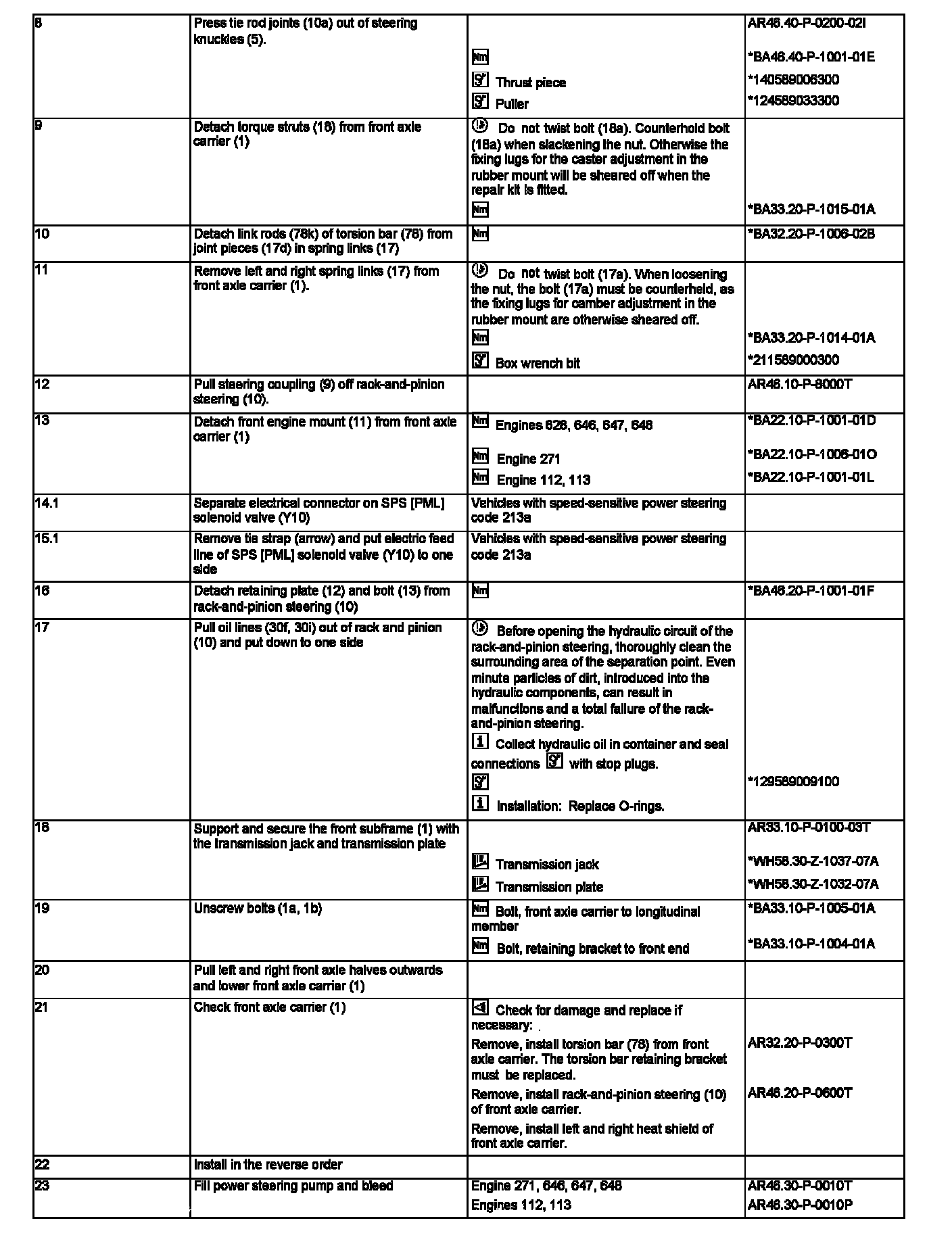

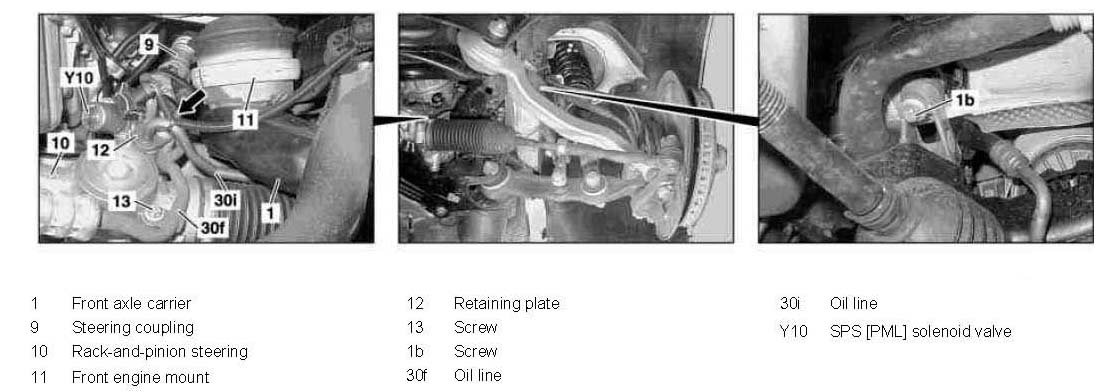

AR33.10-P-0001T Remove/Install Front Axle Carrier
AR33.10-P-0001T Remove/Install Front Axle Carrier
AR33.10-P-0001T Remove/Install Front Axle Carrier
Front axle torsion strut:
