AR46.20-P-3501T Remove/Install Pipeline Between Control Head and Steering Gear Housing

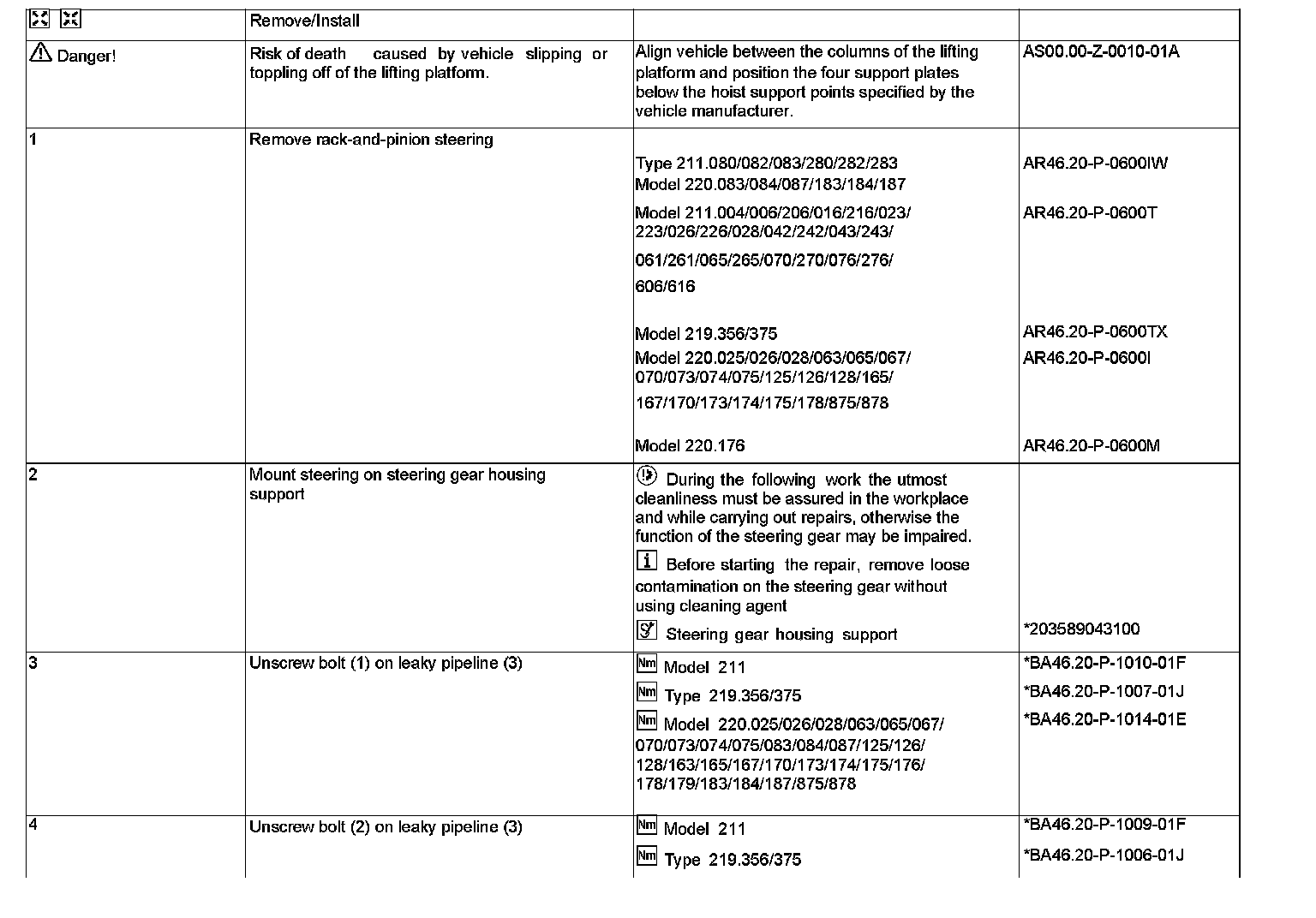

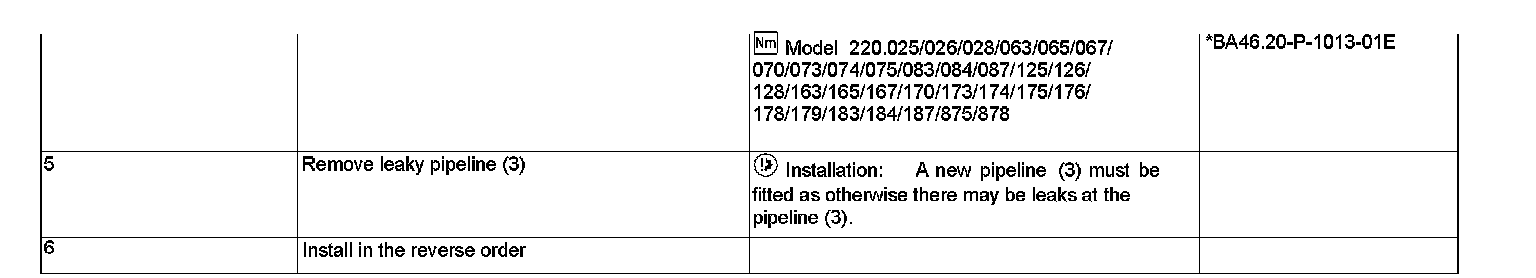

AR46.20-P-3501T Remove/install pipeline between control head and steering gear housing.

Component Identification:




Steps 1 - 4:




Steps 5 - 6:

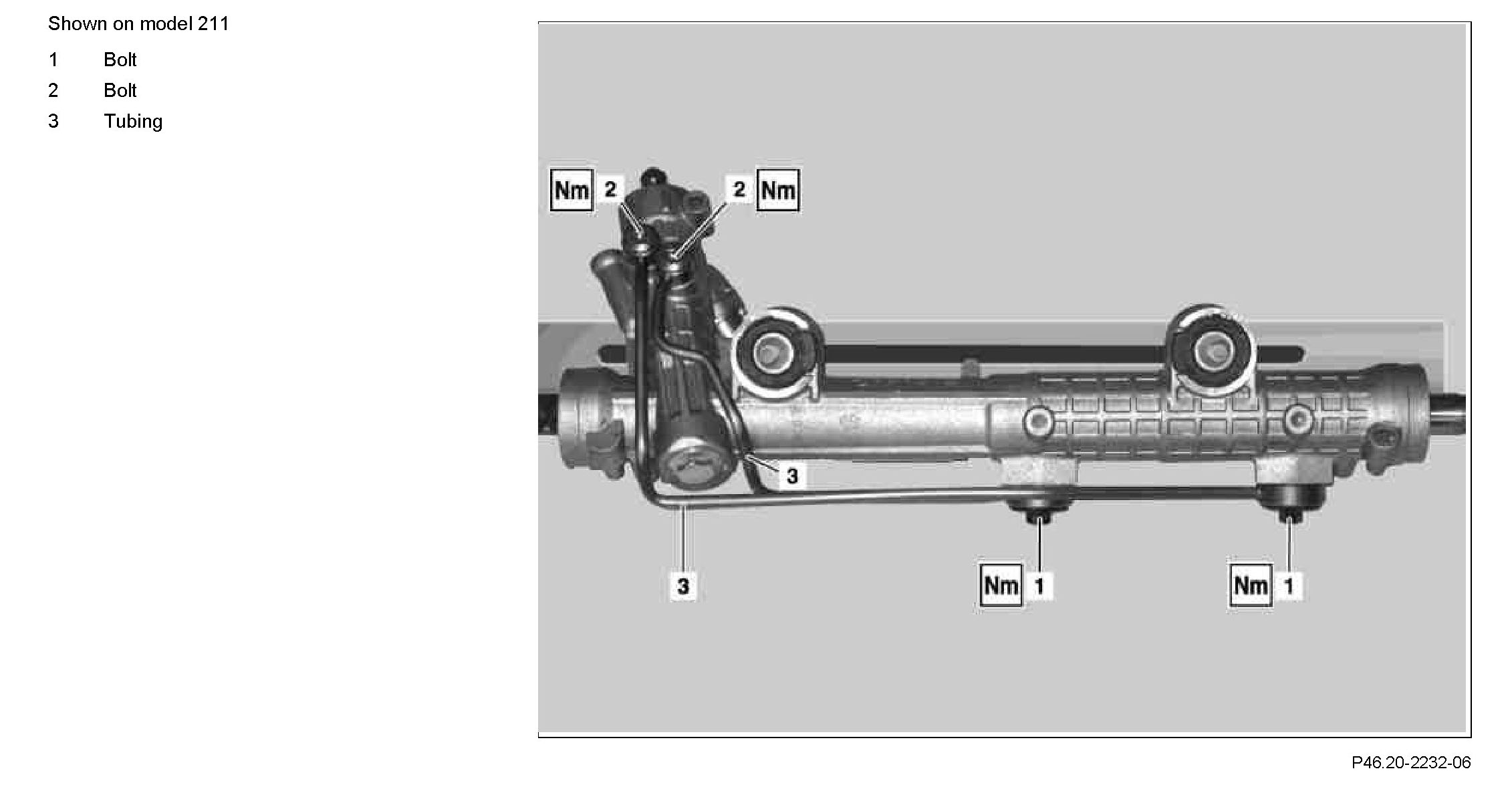

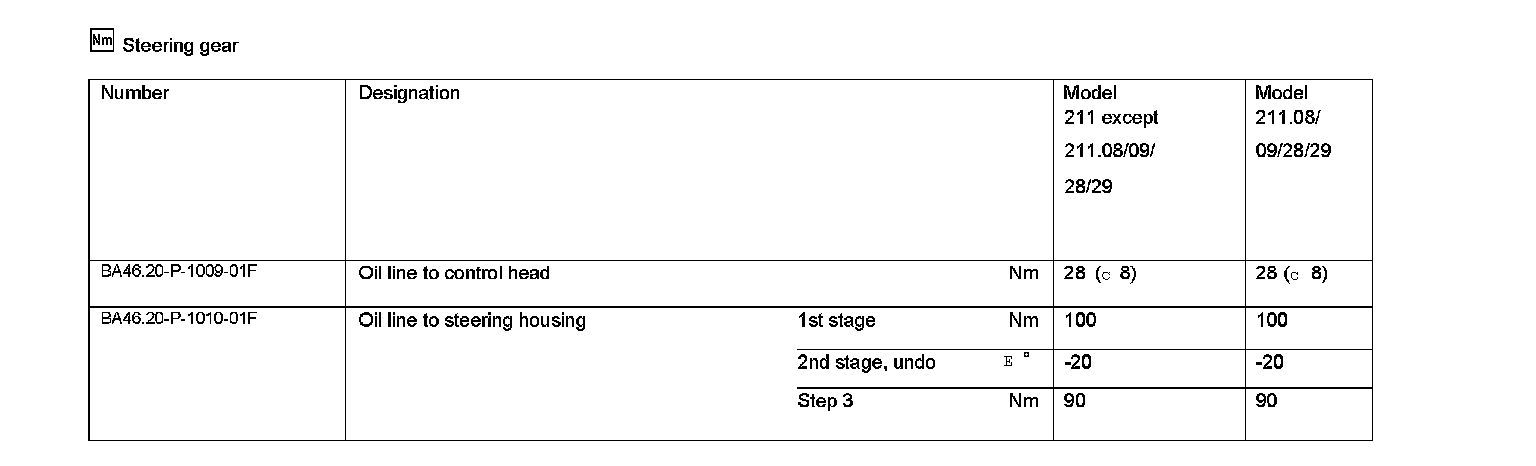

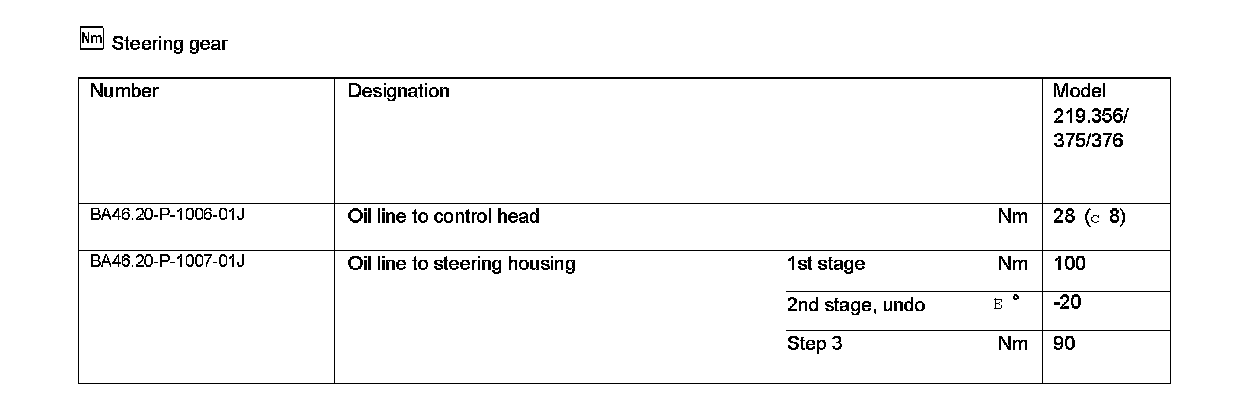

Steering Gear:




Steering Gear:




Steering Gear:

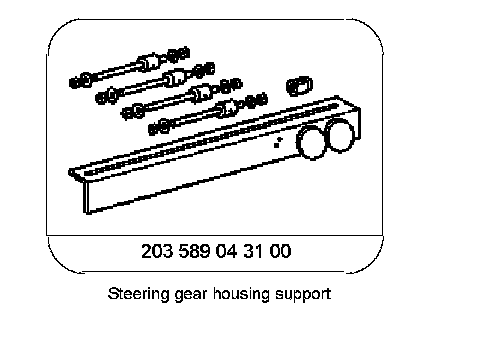

Special Tools:
