Starter Motor: Service and Repair



AR15.30-P-7100TI Remove/install starter

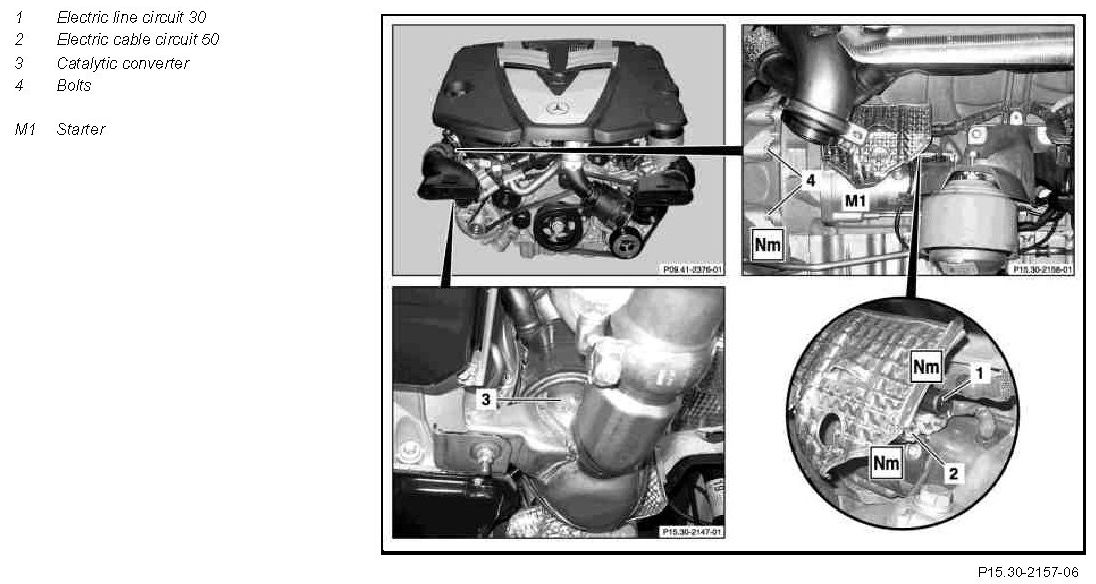

Component Identification:

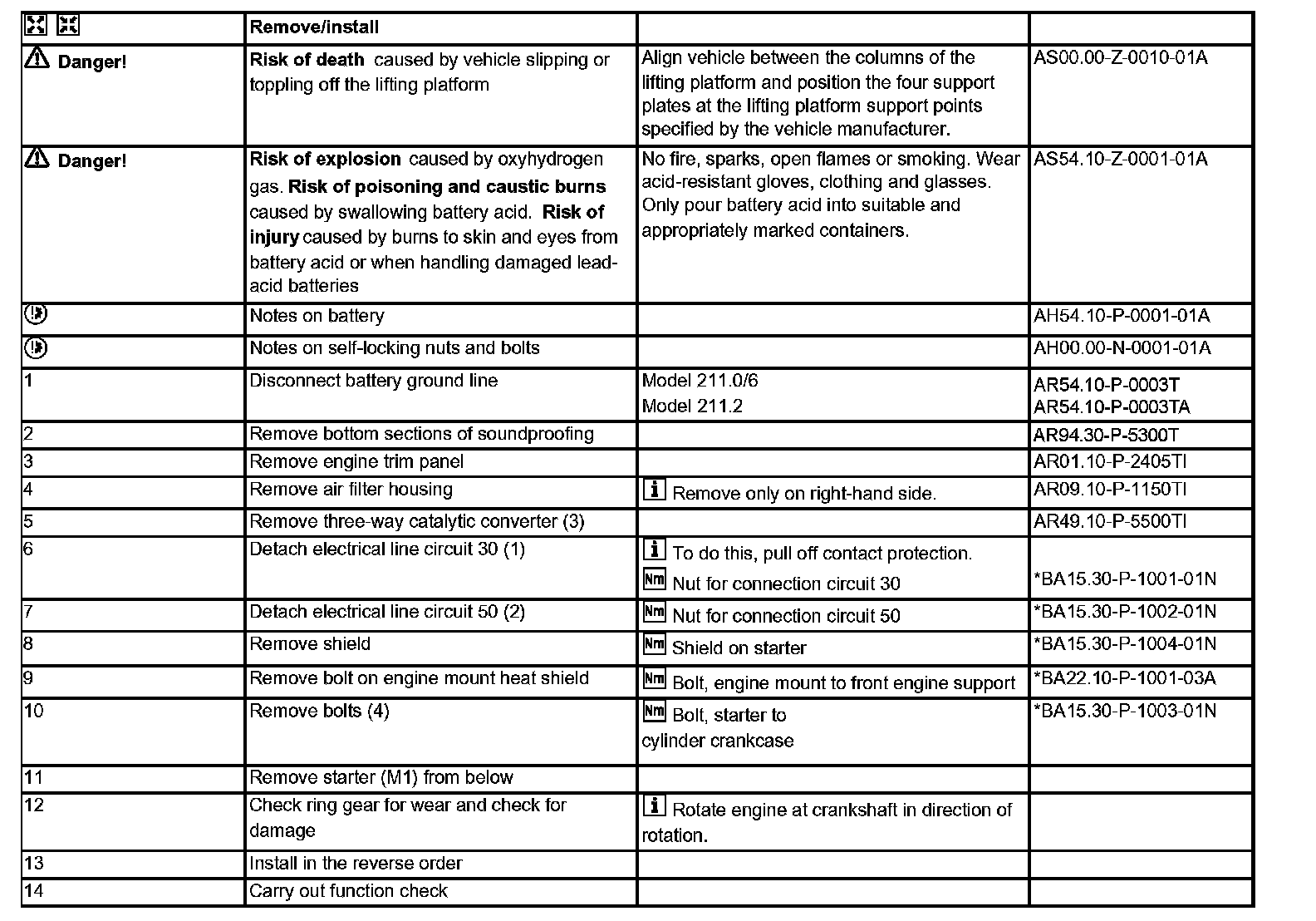

Remove/install Steps 1-14:

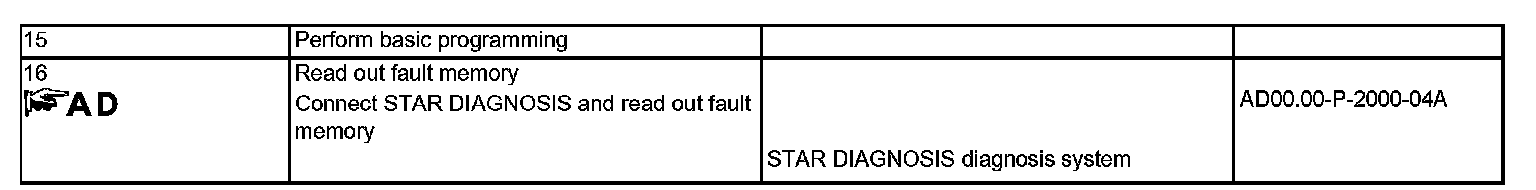

Remove/install Steps 15-16:

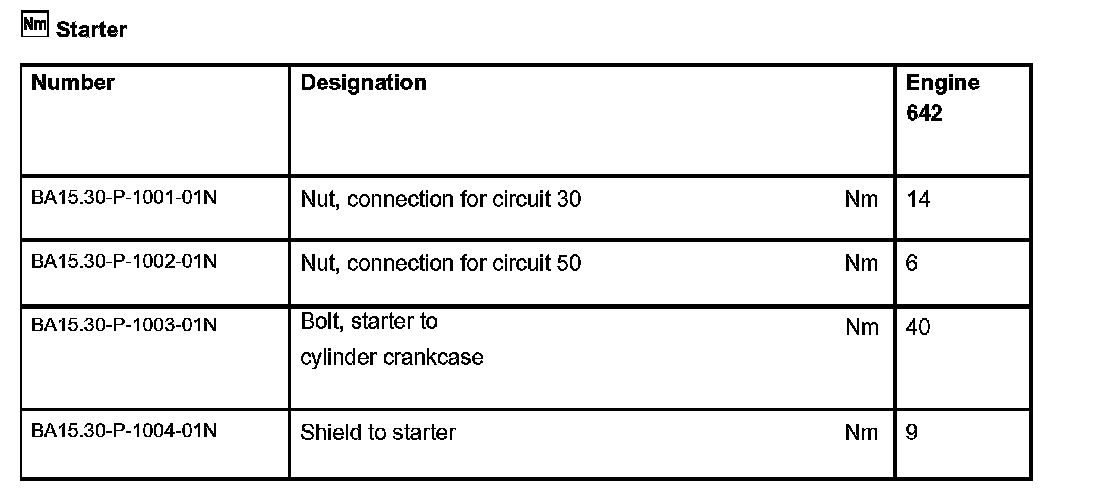

Starter:

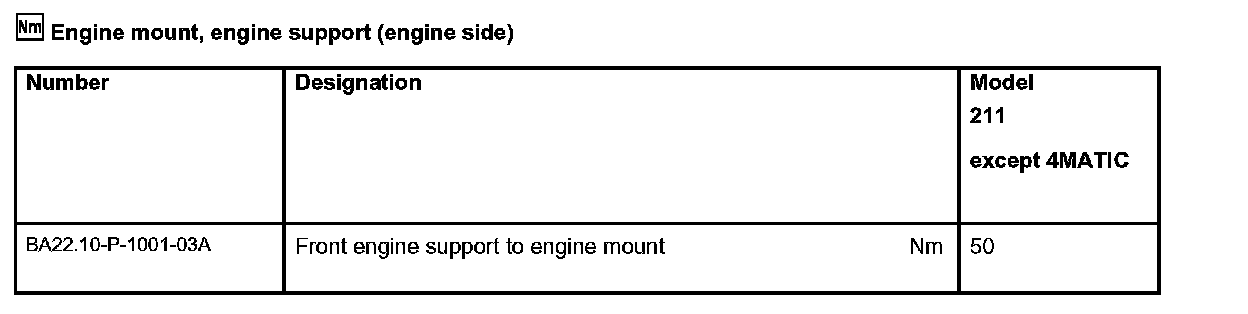

Engine mount, engine support (engine side):
