Electrical Specifications
Electrical Specifications
BE15.40-P-1000-01H Check values for
alternator
Modification notes:

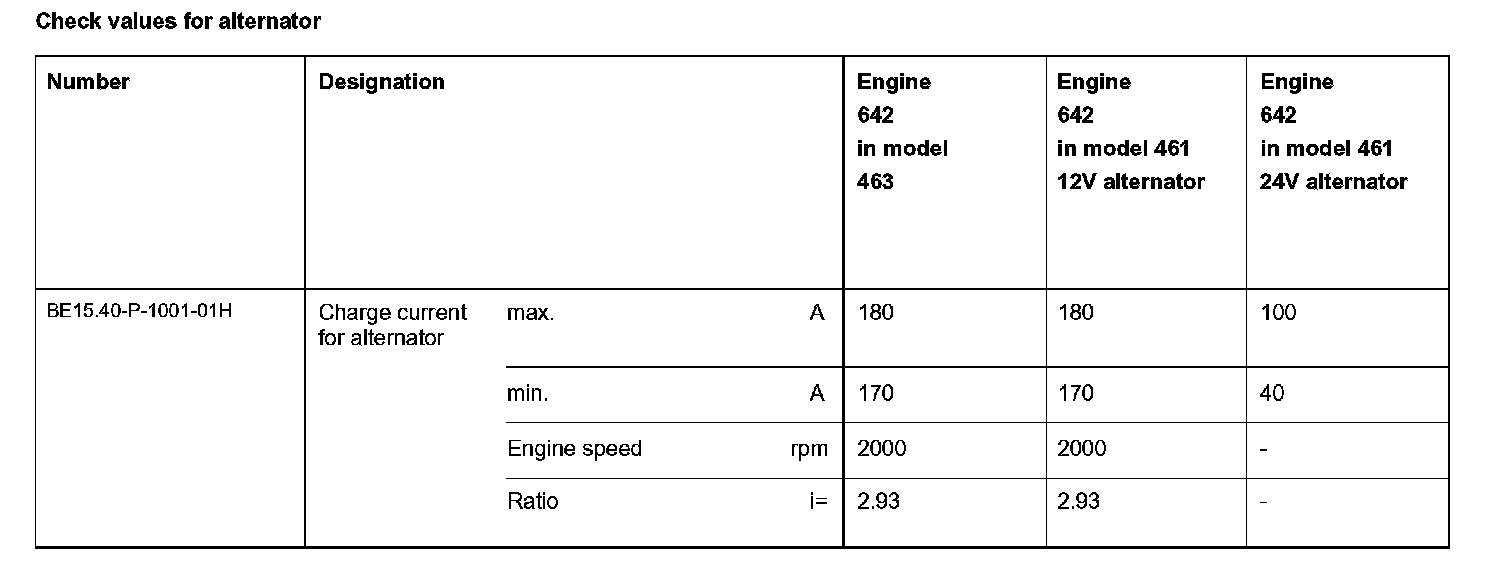

Check values for alternator:

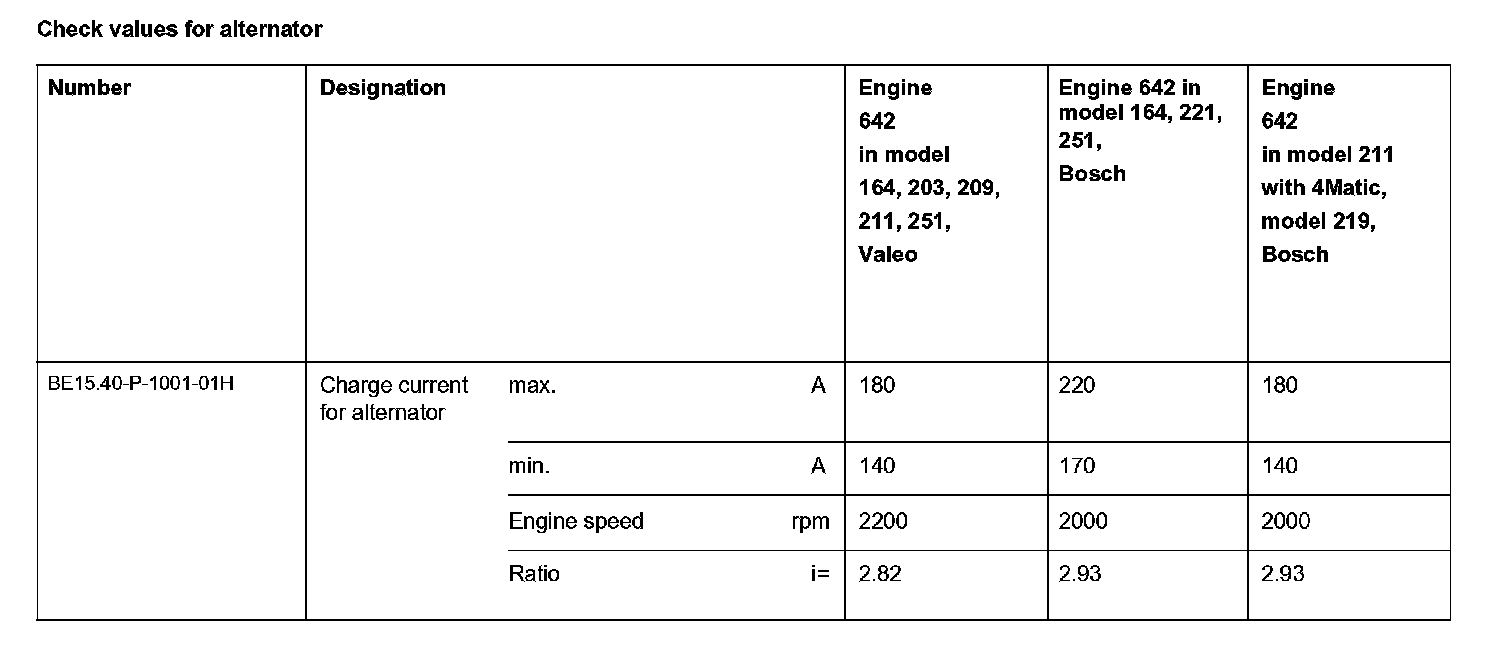

Check values for alternator:
