E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
System Specifications
>>

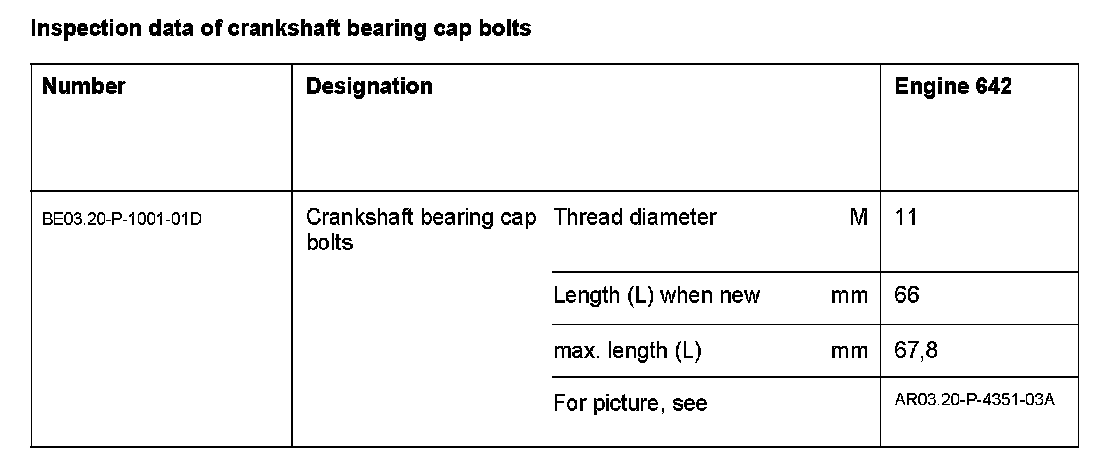

BE03.20-P-1000-01D Inspection Data of Bolts of Crankshaft Bearing Caps
BE03.20-P-1000-01D Inspection Data of Bolts of Crankshaft Bearing Caps
BE03.20-P-1000-01D Inspection Data Of Bolts Of
Crankshaft
Bearing Caps
ENGINE 642
