Mercedes Benz
>>
2009
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
BE40.20-P-1000-09T Rear Axle Camber
BE40.20-P-1000-09T Rear Axle Camber
BE40.20-P-1000-09T Rear axle camber

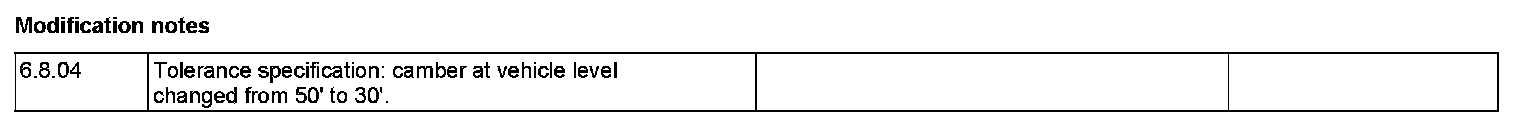

Modification Notes:

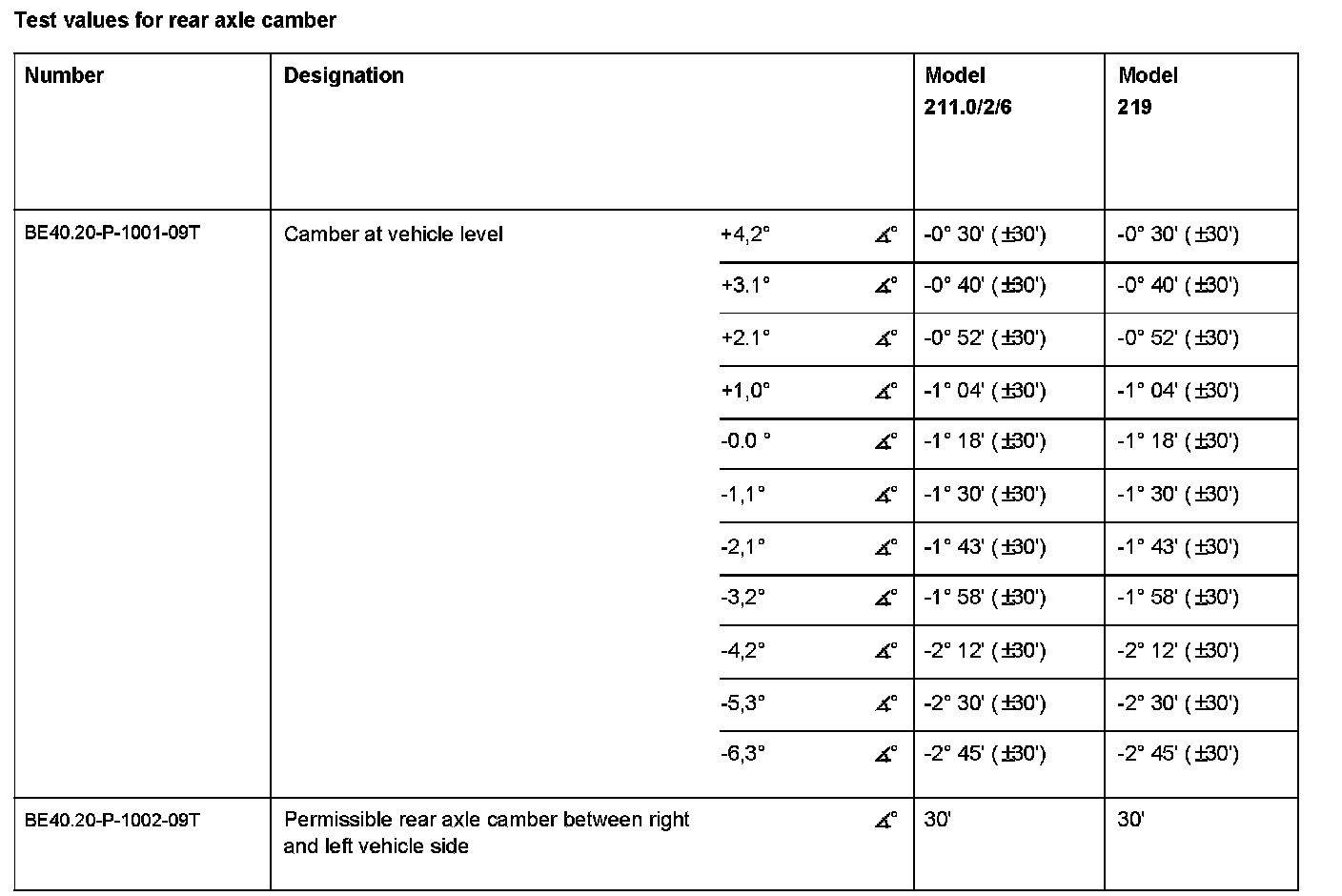

Test Values For Rear Axle Camber:
