Wiring Diagram of Airbag PE91.60-U-2000DA

Wiring Diagram Of Airbag PE91.60-U-2000DA

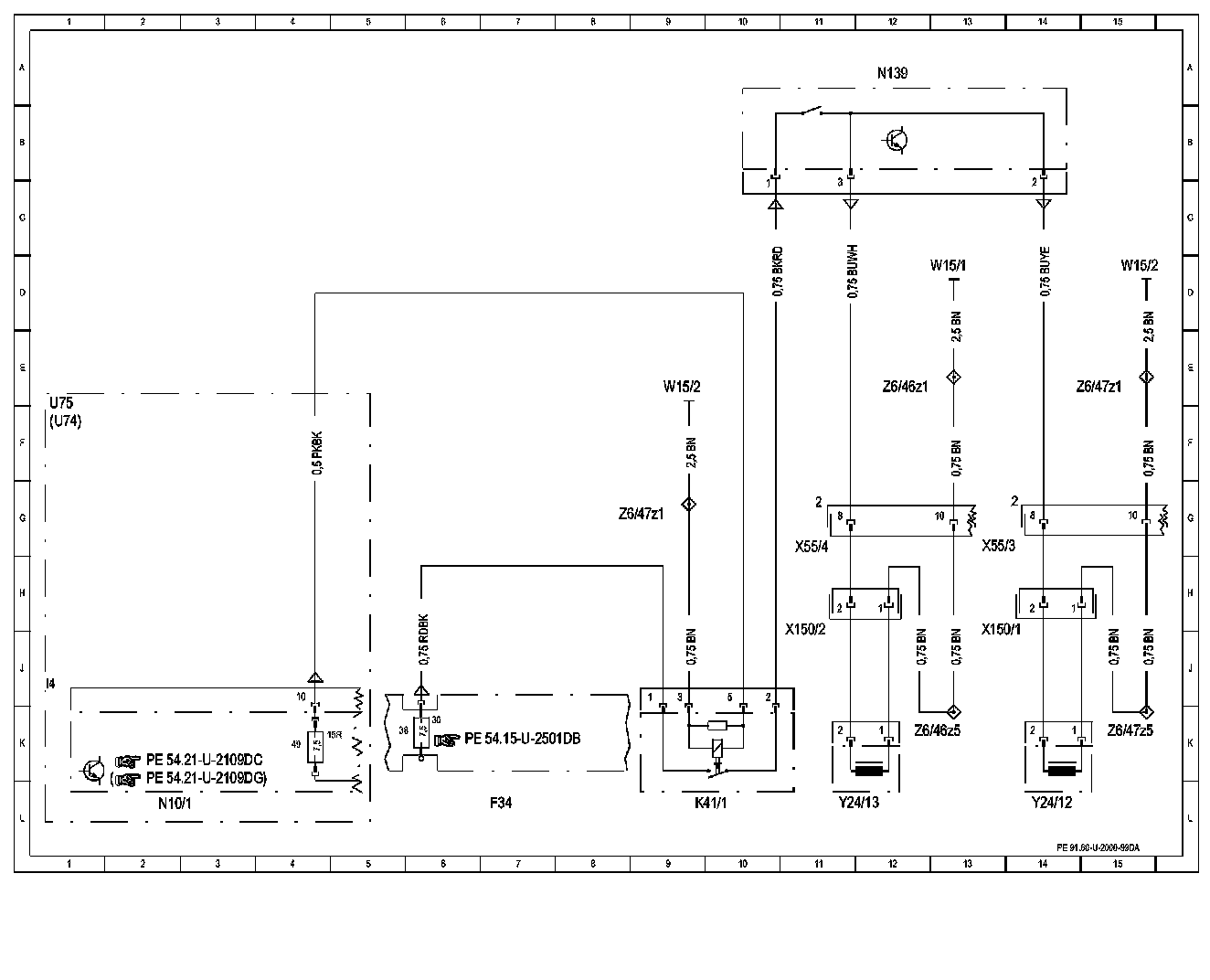

Wiring Diagram:

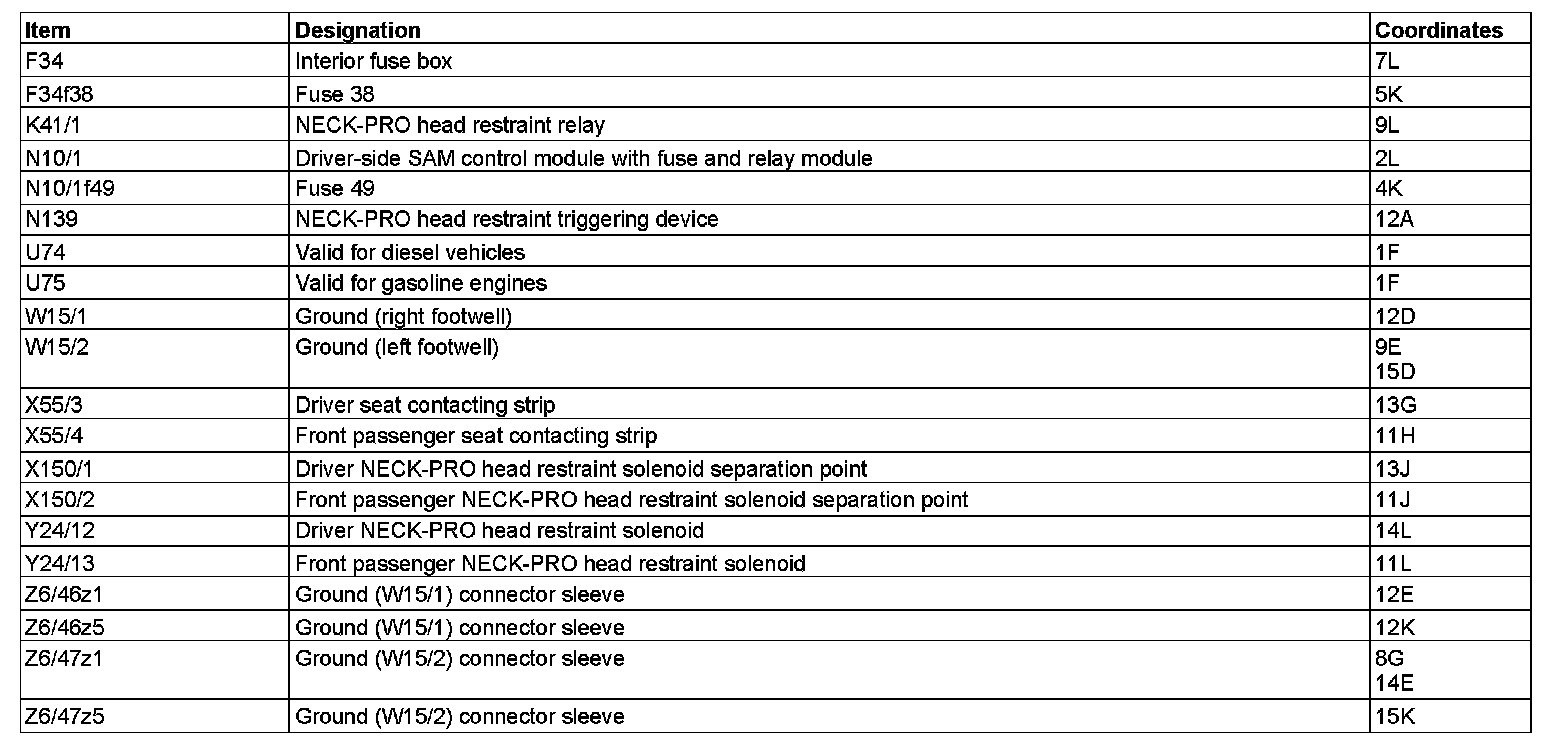

Component Description/Coordinates, F34 To Z6/47z5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
