AR72.29-P-1000T Remove/Install Front Door Control Module

AR72.29-P-1000T Remove/Install Front Door Control Module

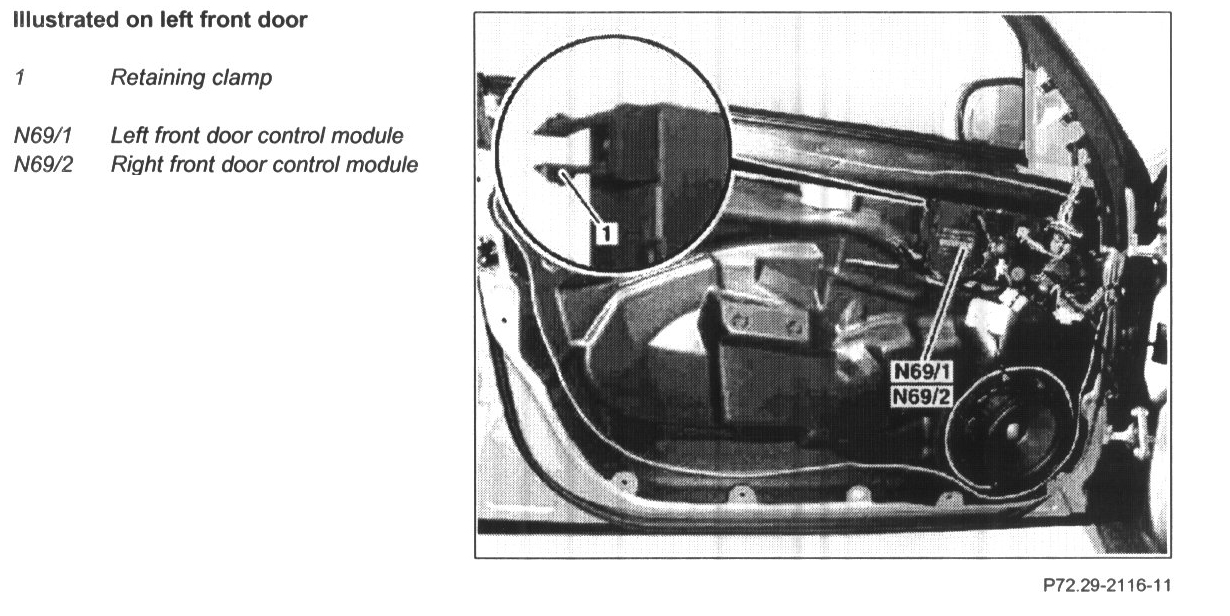

Illustrated On Left Front Door:

1 Remove door lining
2 Disconnect electrical connectors at left front door control module (N69/1) or right front door control module (N69/2)

NOTE: Installation: Pay attention to correct routing of electrical lines.

3 Press together left and right retaining clamps (1) at left front door control module (N69/1) or right front door control module (N69/2) and remove front door control module

NOTE: Do not damage door foil.

4 Install in the reverse order
