AR09.40-P-6020TI Remove/Install Turbocharger



AR09.40-P-6020TI Remove/Install Turbocharger


Component Identification:




Component Identification:




Modification Notes:

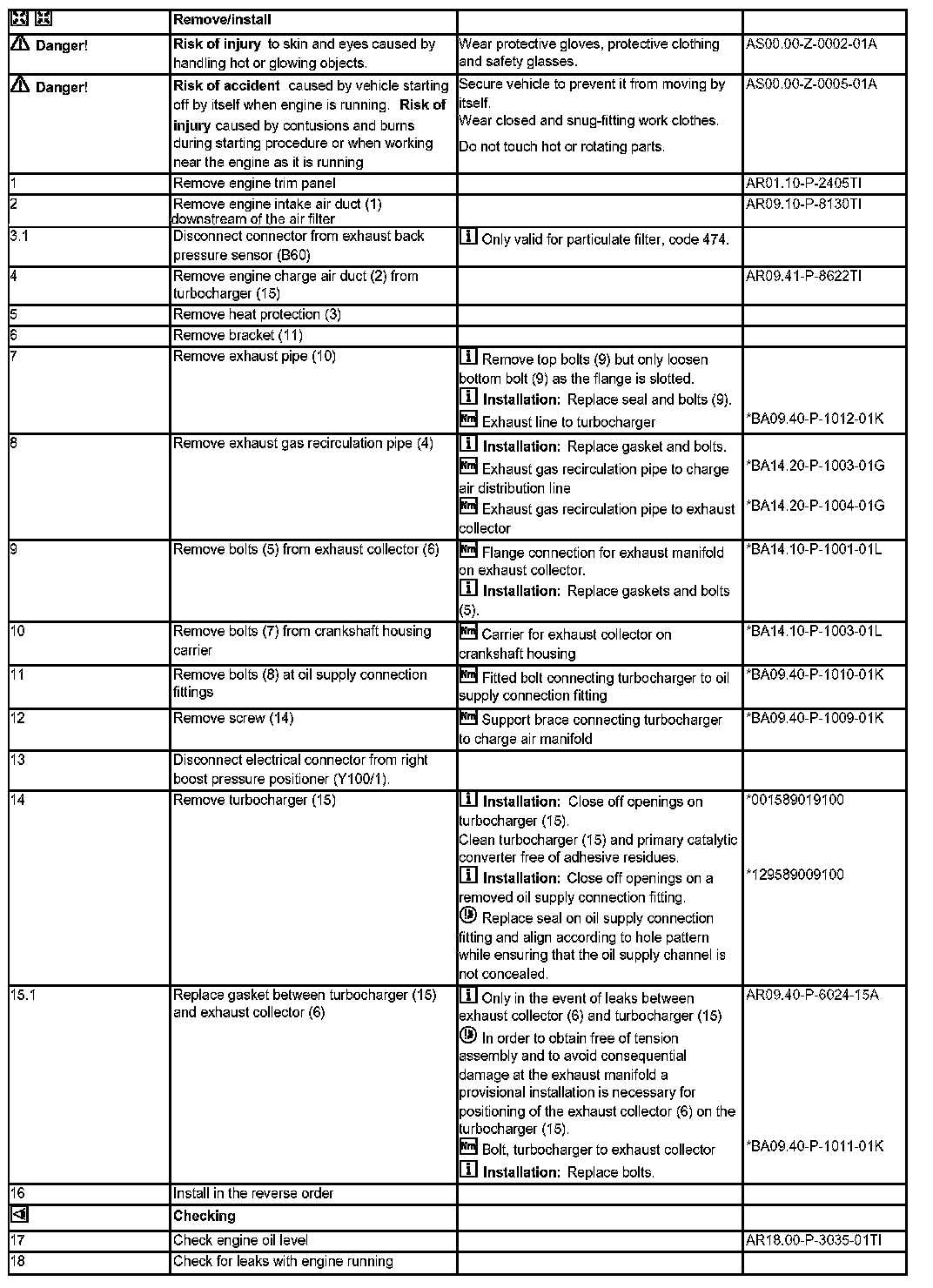

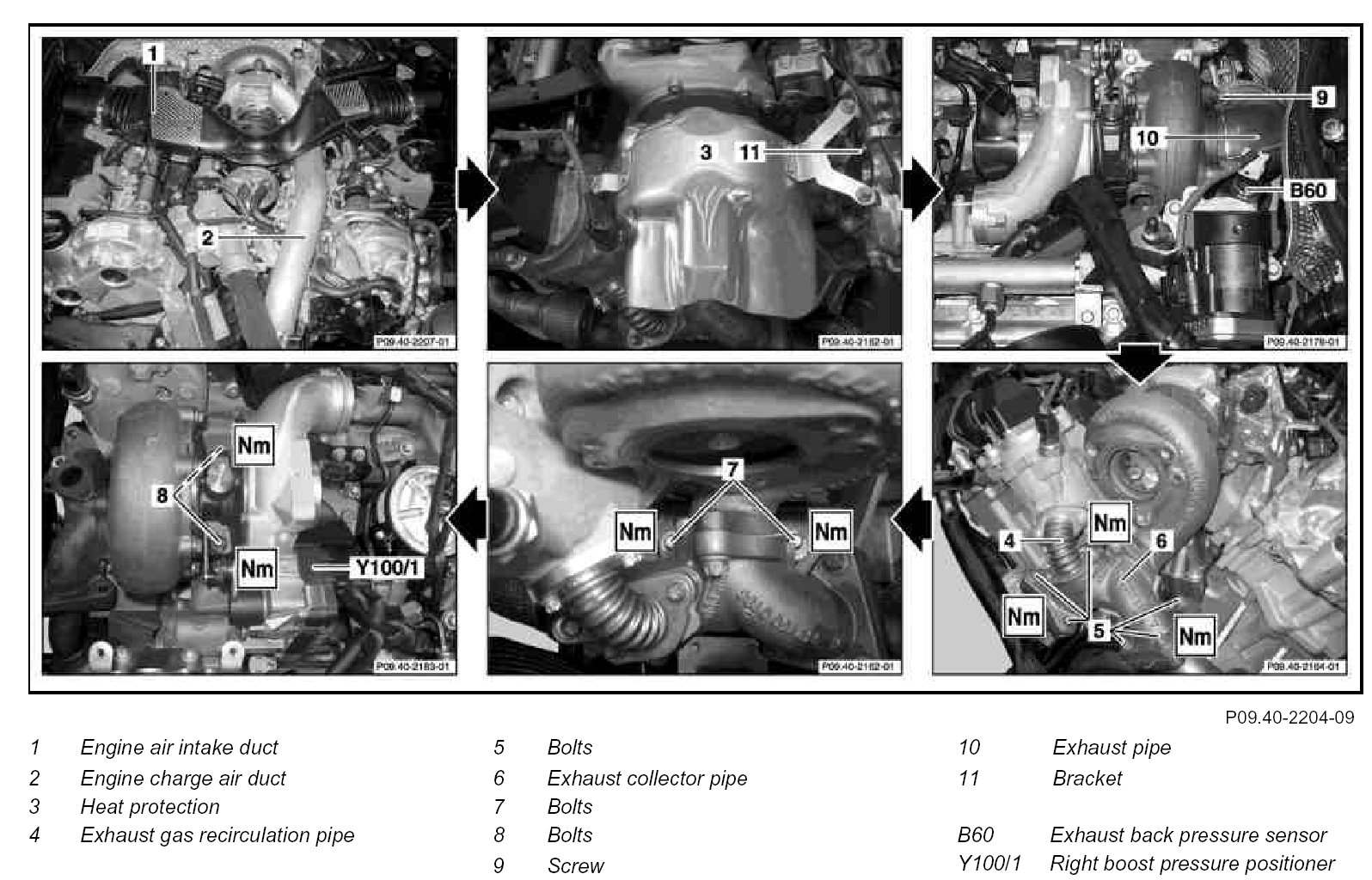

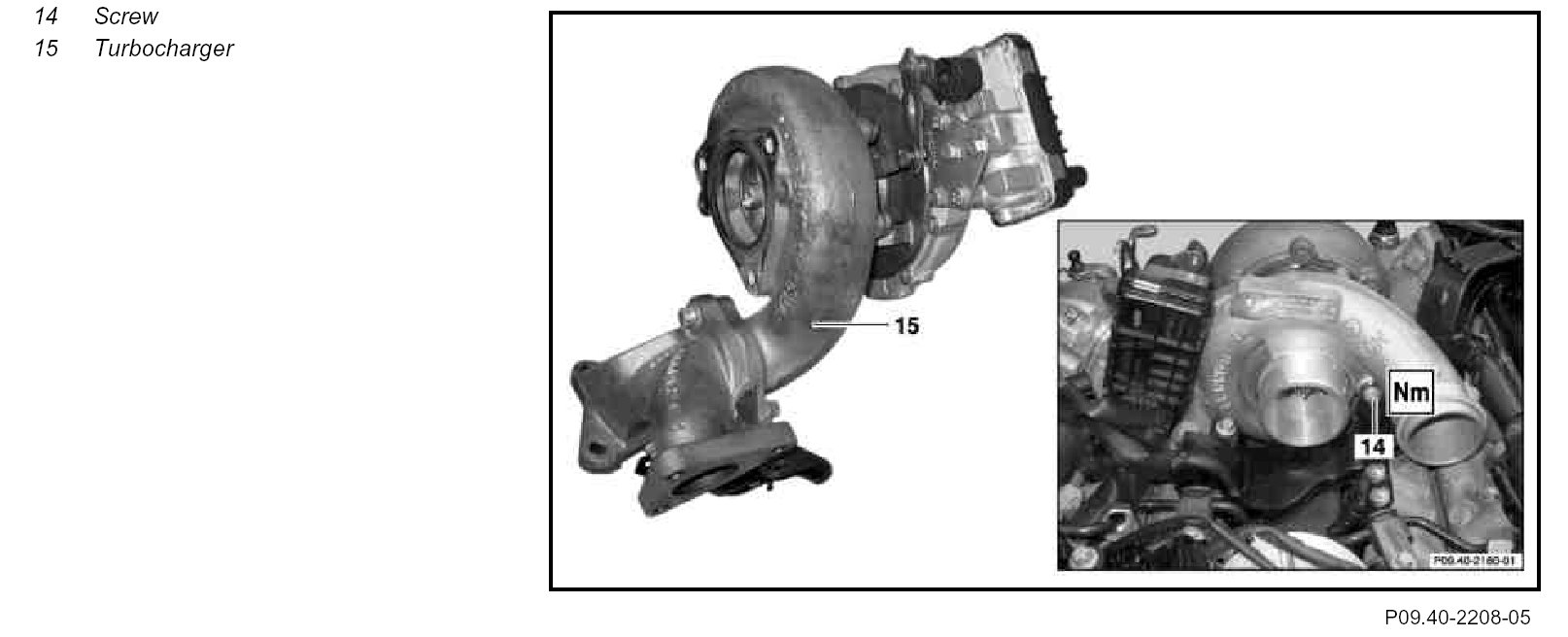

Steps 1 - 18:

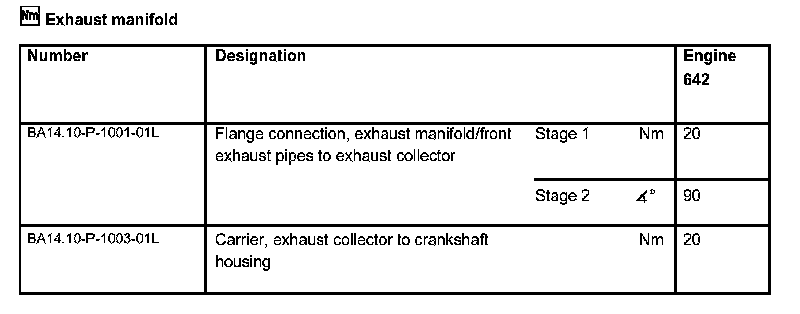

Exhaust Manifold:

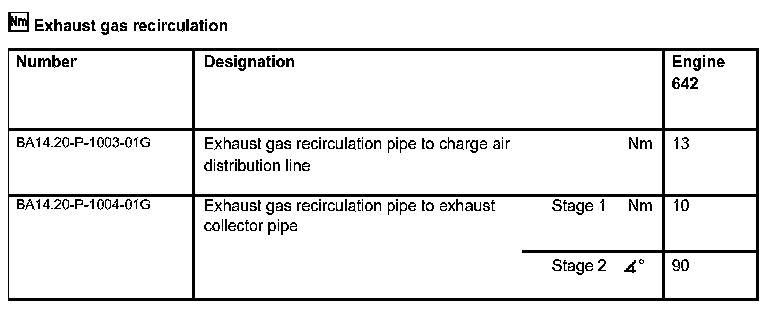

Exhaust Gas Recirculation:

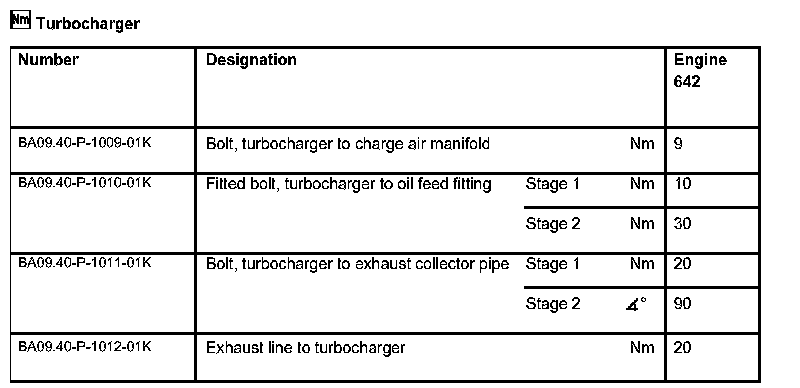

Turbocharger:




Special Tools:

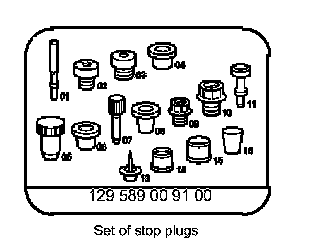

Special Tools:
