E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diesel Emissions Fluid (DEF) System
>>
Specifications
>>

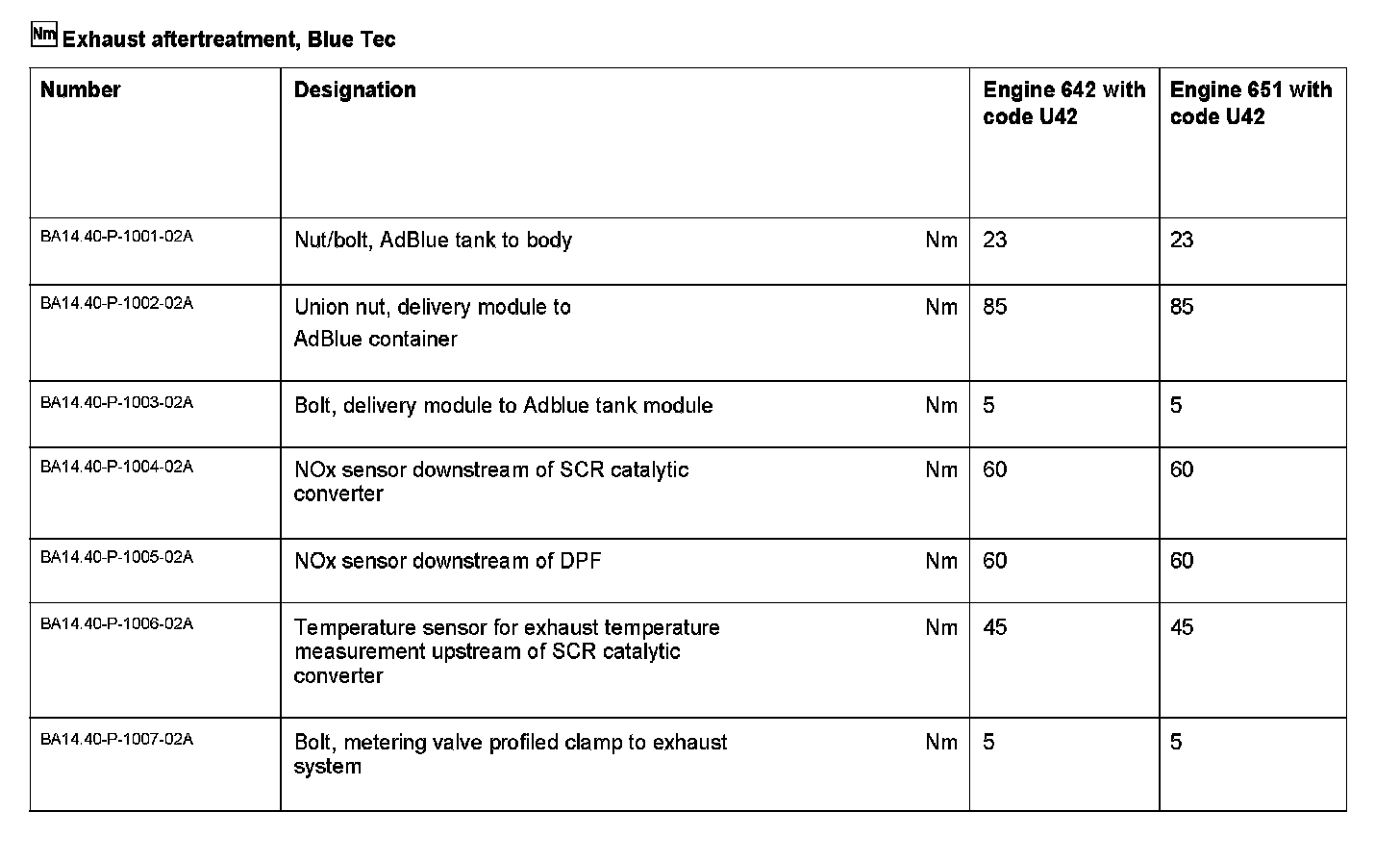

BA14.40-P-1000-02A Exhaust After Treatment
BA14.40-P-1000-02A Exhaust After Treatment
BA14.40-P-1000-02A Exhaust After Treatment
ENGINE 642, 651
-
with code U42
