Diesel Emissions Fluid Injector Nozzle: Service and Repair

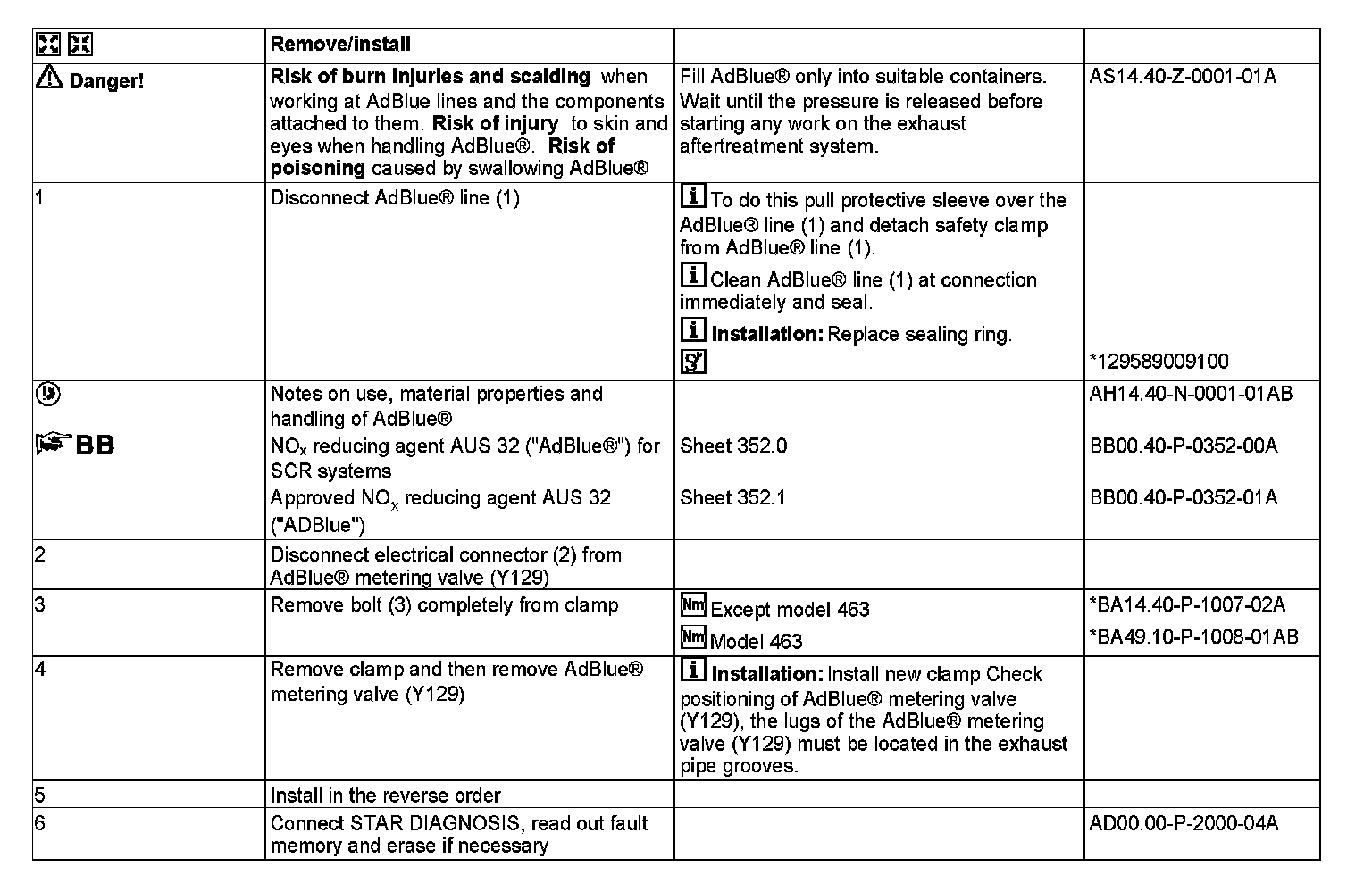

AR14.40-P-2000GZB Remove/Install Injection Nozzle For Exhaust After Treatment System
ENGINES 642 with CODE (U42) BlueTEC (SCR) diesel exhaust treatment
ENGINES 642.886 in MODEL 463.306 /336 /346

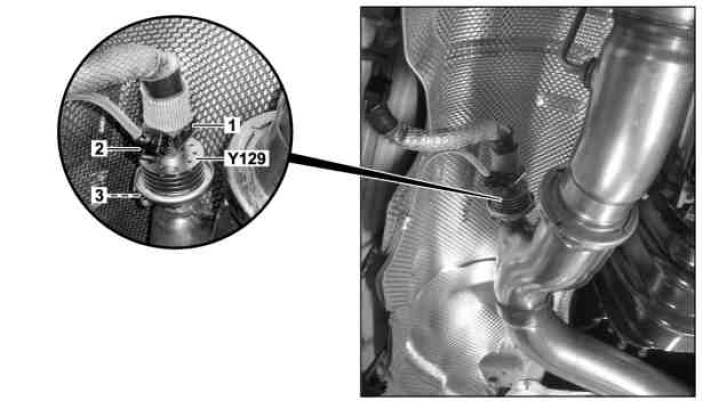

Illustrated on model 251

1 AdBlue(R) line
2 Electrical connector

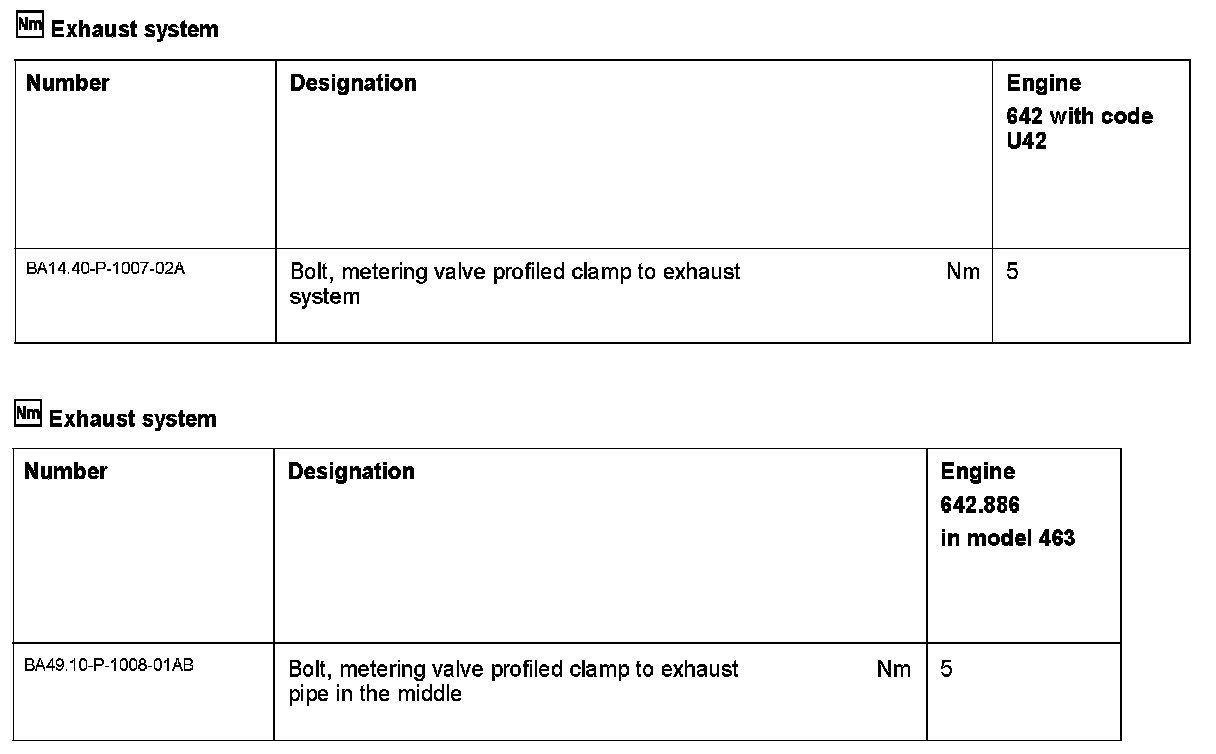

3 Bolt

Y129 AdBlue(R) metering valve











129 589 00 91 00
Set of stop plugs
