AR46.25-P-3015TS Remove/Install Hydraulic Line of Power Steering



AR46.25-P-3015TS Remove/install hydraulic line of power steering
- Upstream of power steering radiator

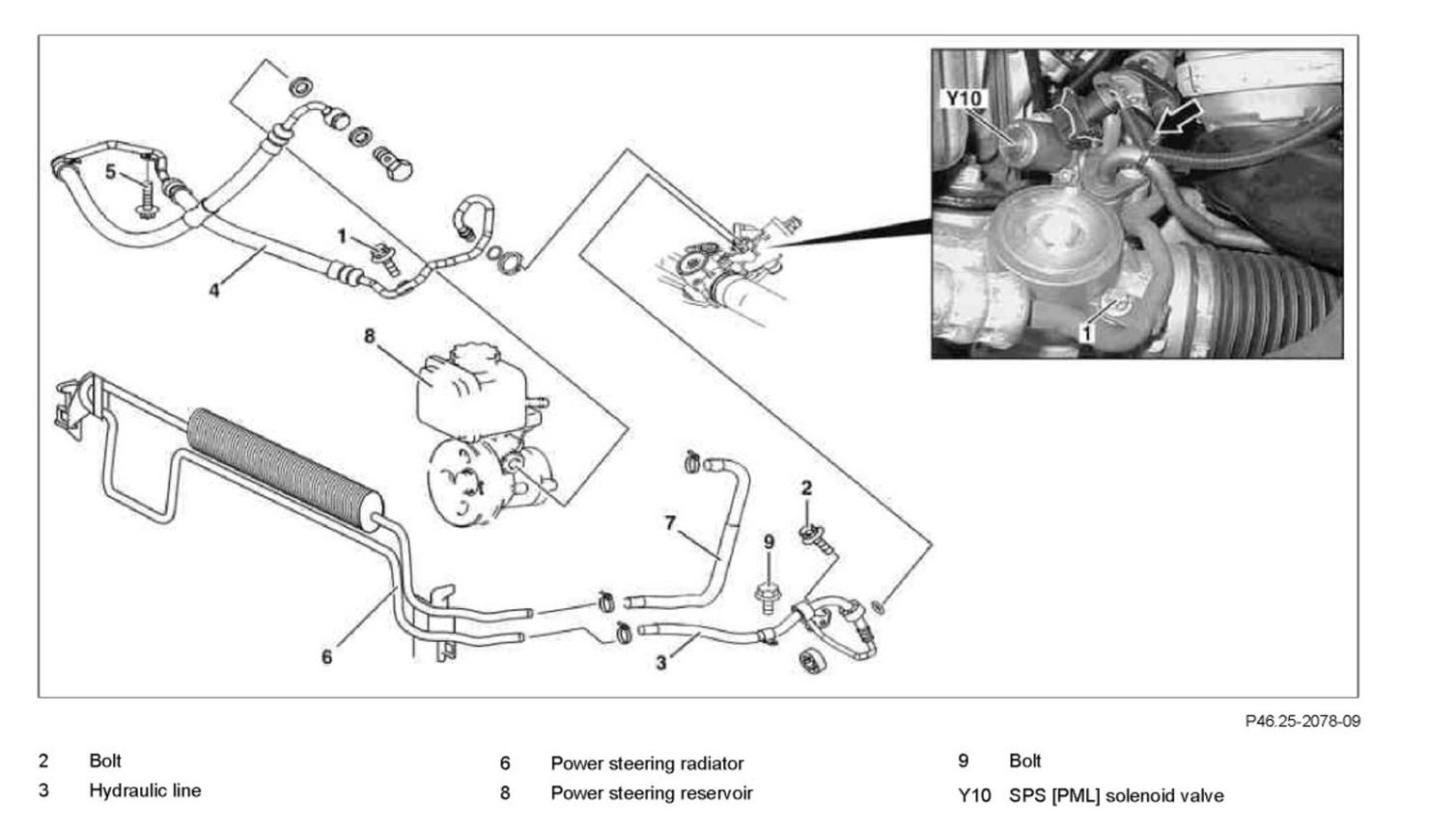

Component Identification:

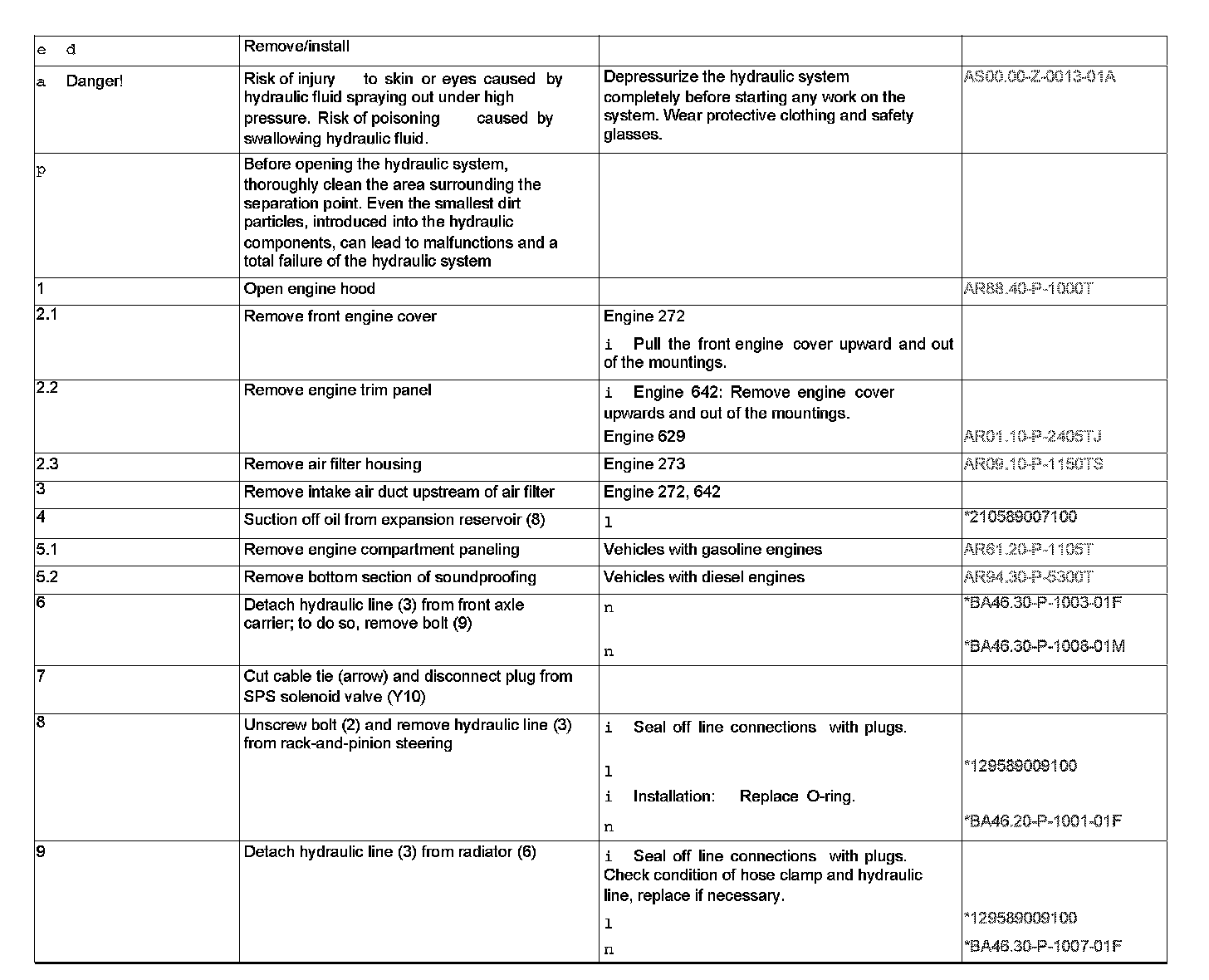

Steps 1-9:

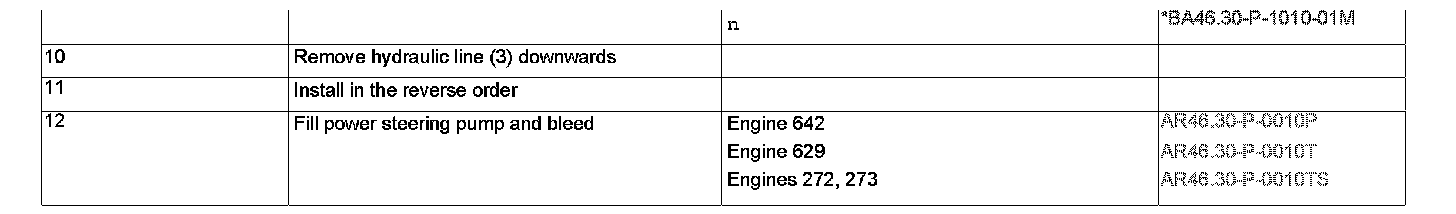

Remove/install Steps 10-12:

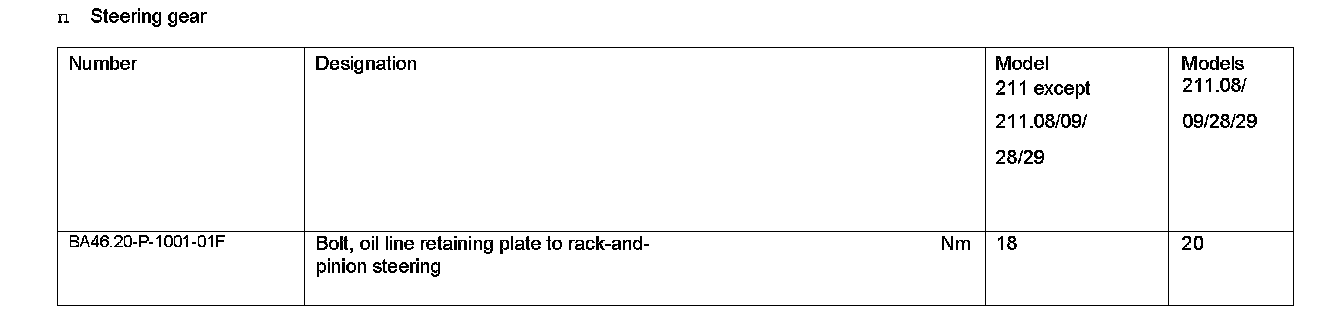

Steering Gear:

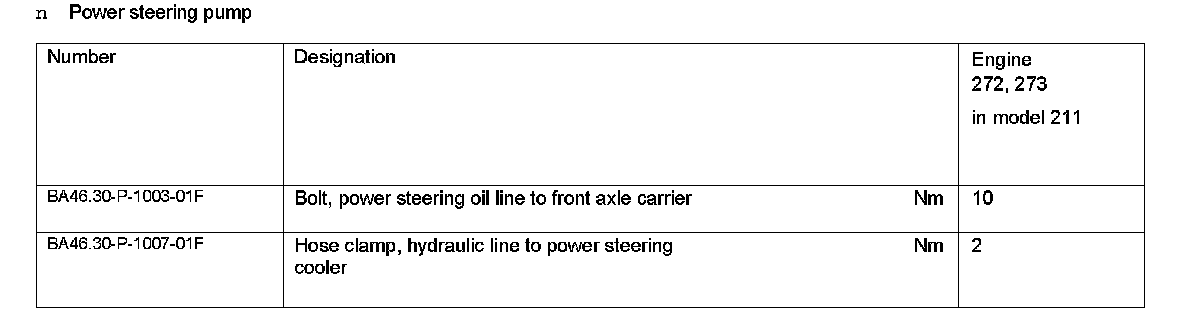

Power steering pump:

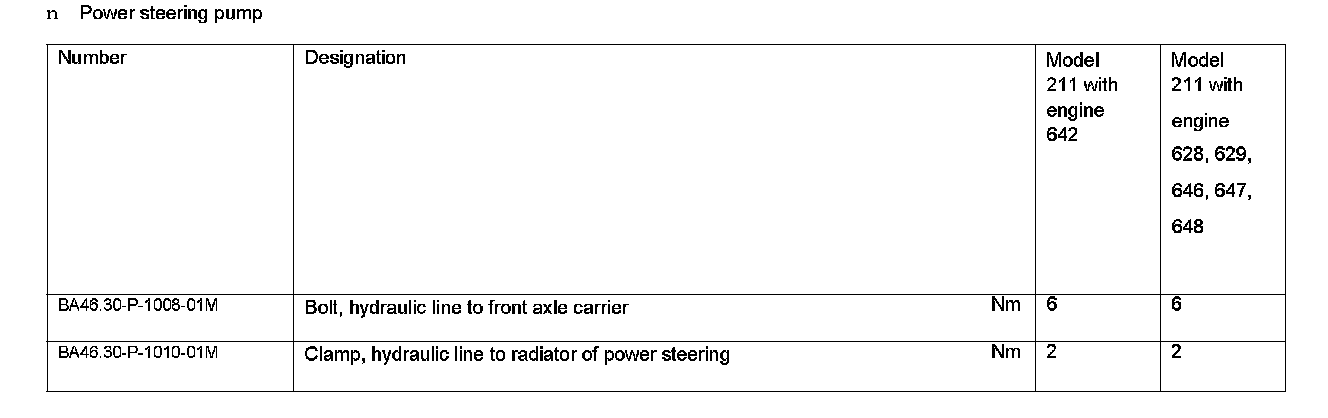

Power steering pump:

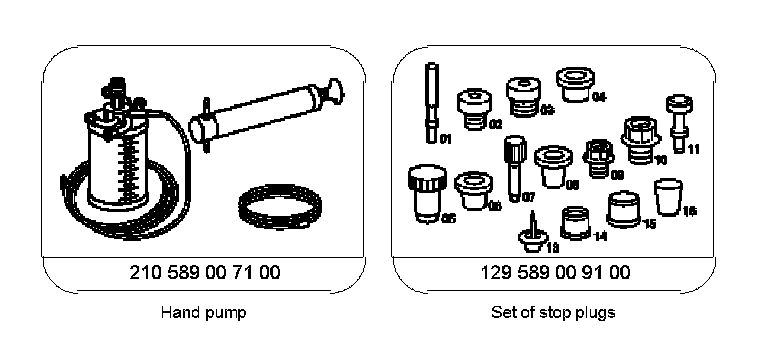

Special Tools:
