Home >> Mercedes Benz >> 2009 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Maintenance >> Fluids >> Refrigerant >> Service and Repair >> AR83.30-P-5251P Correct Fluid Level In the Air Conditioning System In the Case of Repair or Slow Refrigerant Loss

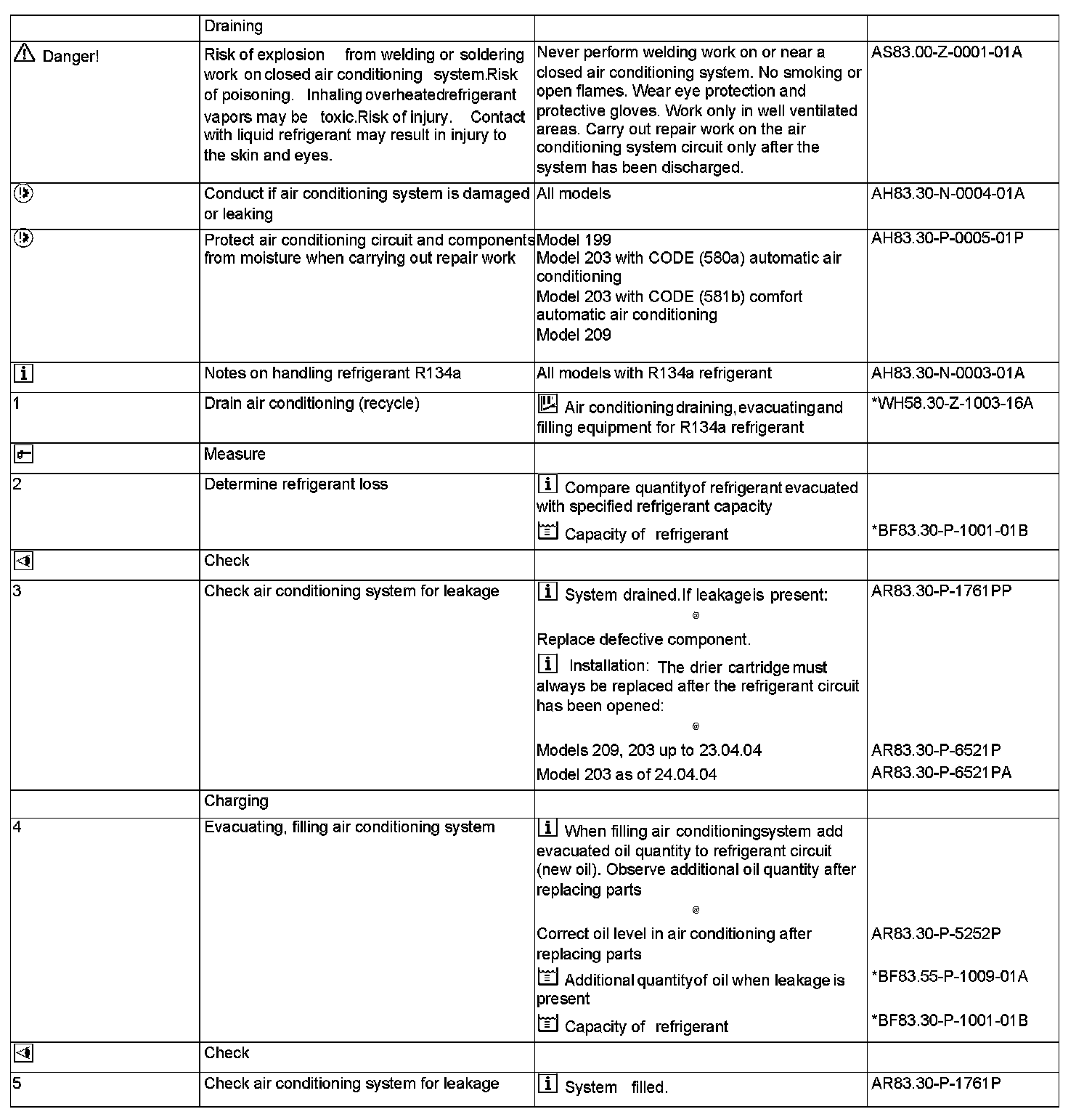

AR83.30-P-5251P Correct Fluid Level In the Air Conditioning System In the Case of Repair or Slow Refrigerant Loss



AR83.30-P-5251P Correct Fluid Level In the Air Conditioning System In the Case of Repair or Slow Refrigerant Loss

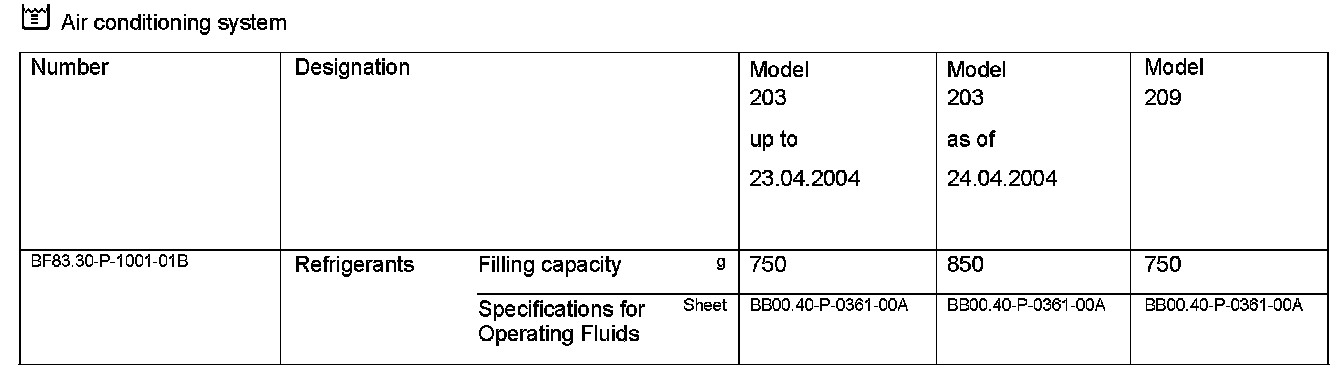

Air Conditioning System:

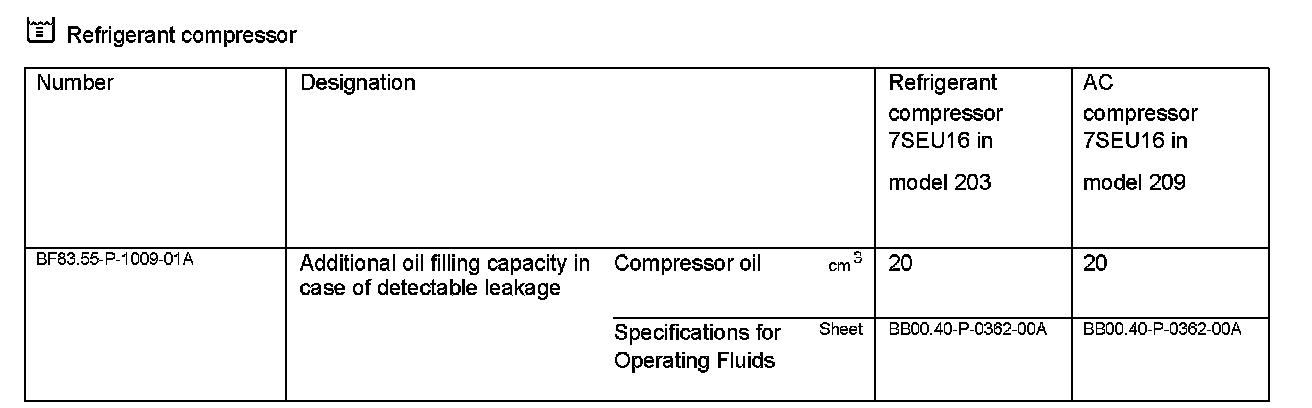

Refrigerant Compressor:
