Wiring Diagram For Rotary Light Switch PE82.10-P-2700DA

Wiring Diagram For Rotary Light Switch PE82.10-P-2700DA

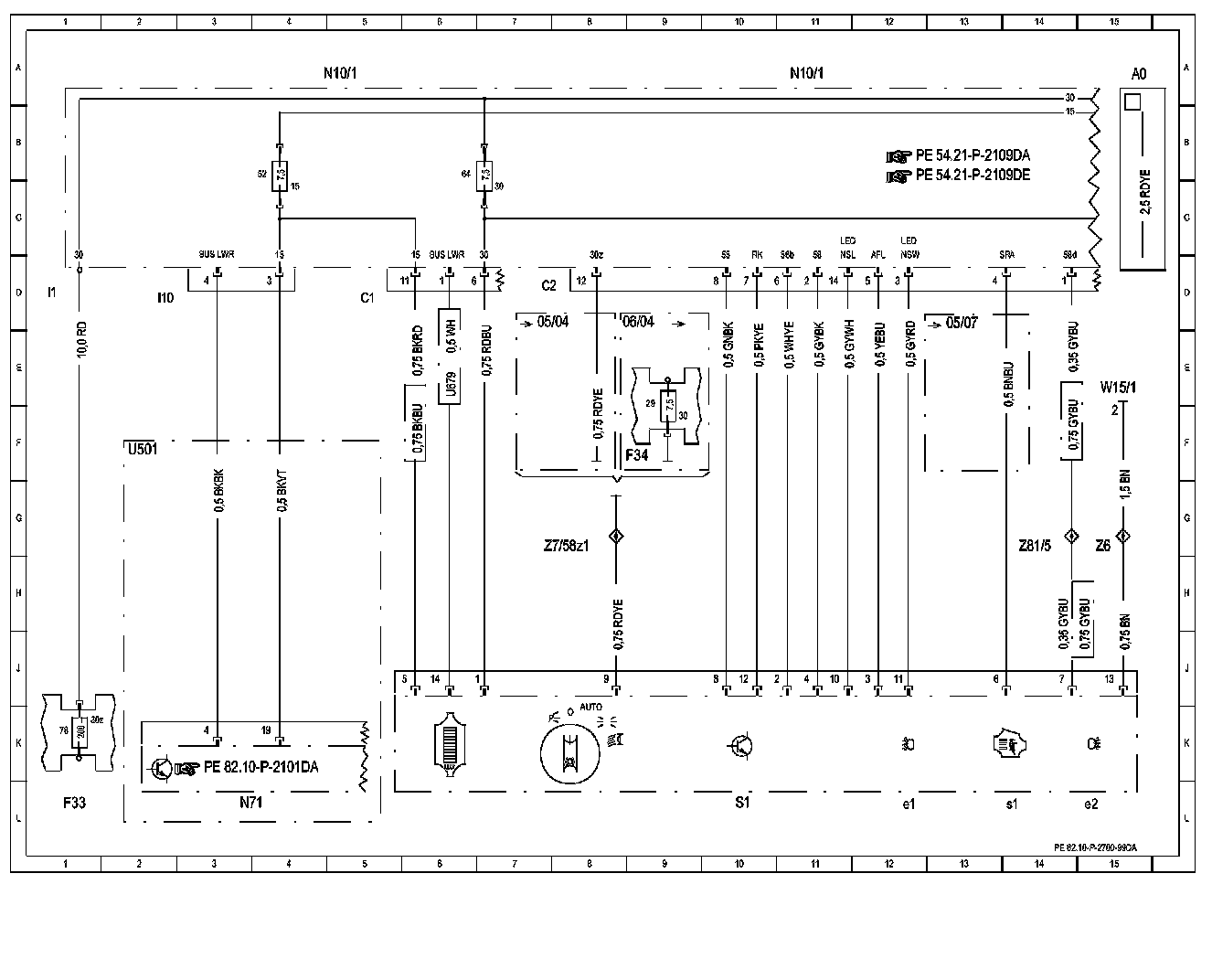

Wiring Diagram:

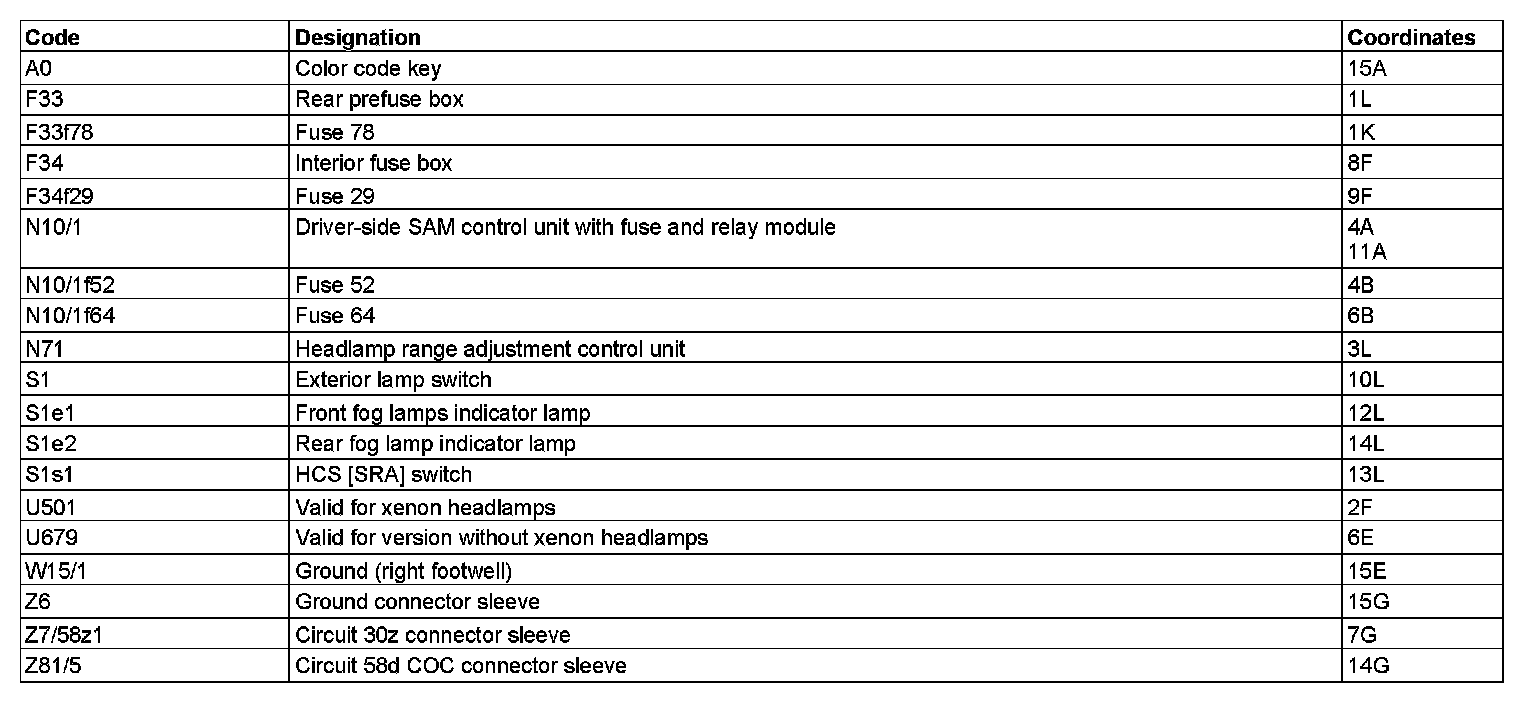

Component Description/Coordinates, A0 To Z81/5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
