Exhaust Manifold: Service and Repair
AR14.10-P-3915TI Remove/install exhaust manifold

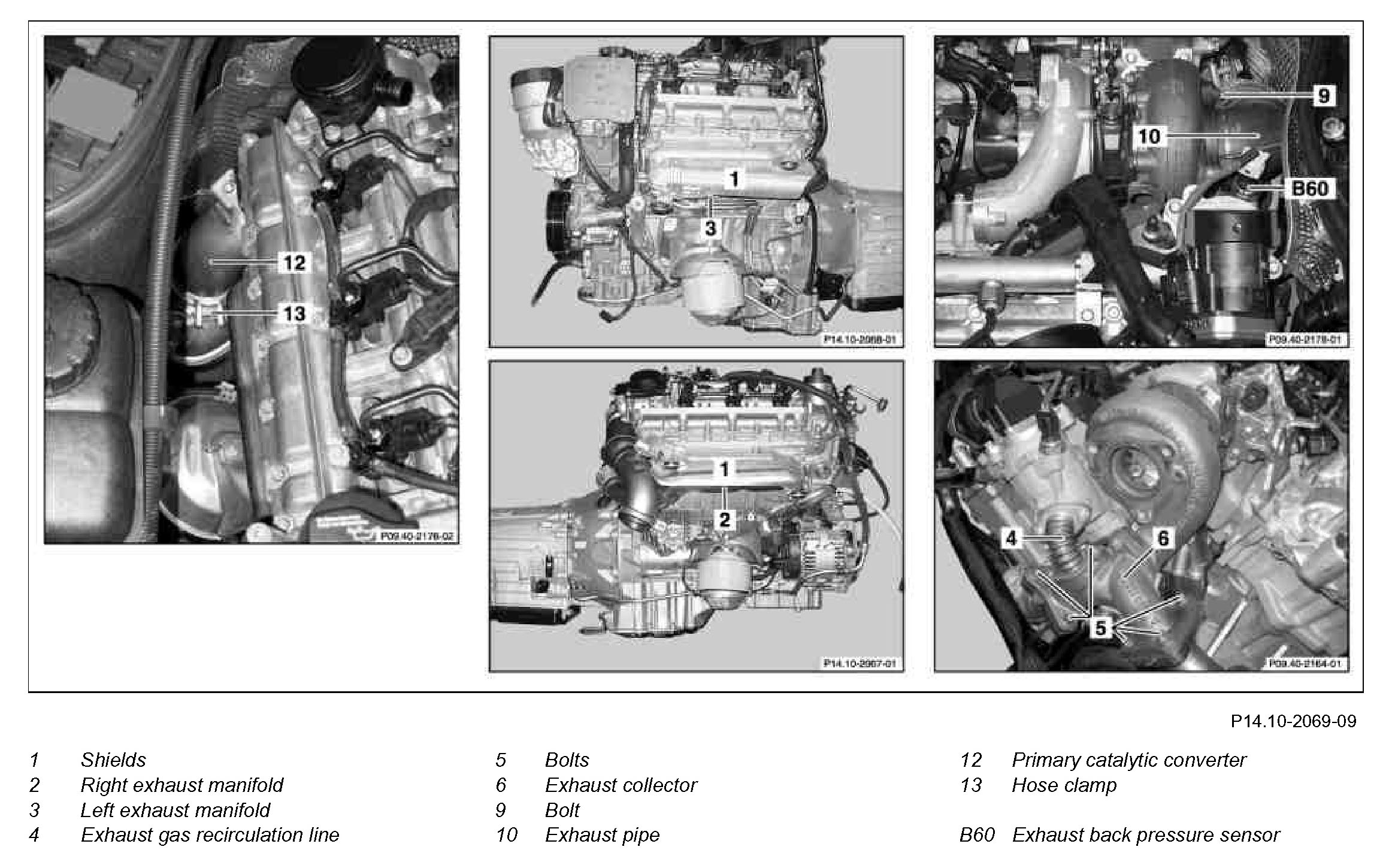

Component Identification:
Modification notes:

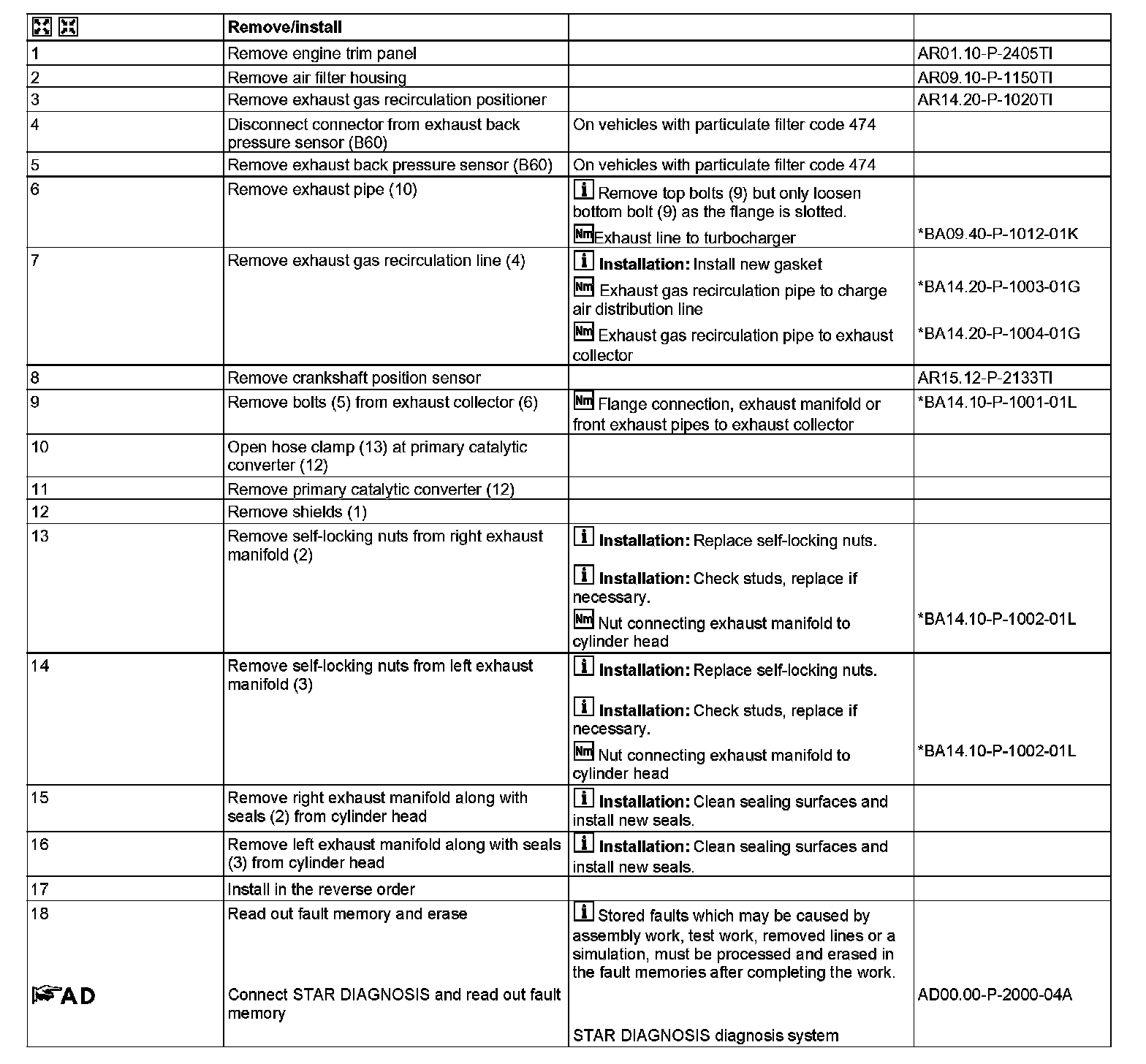

Steps 1-18:

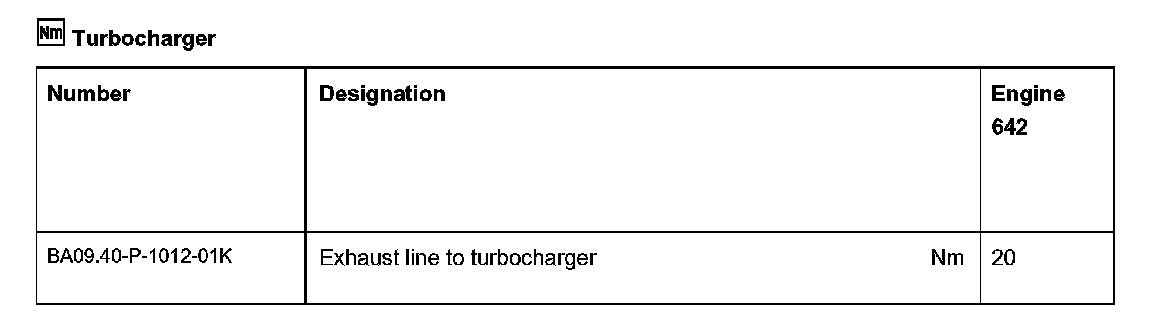

Turbocharger:

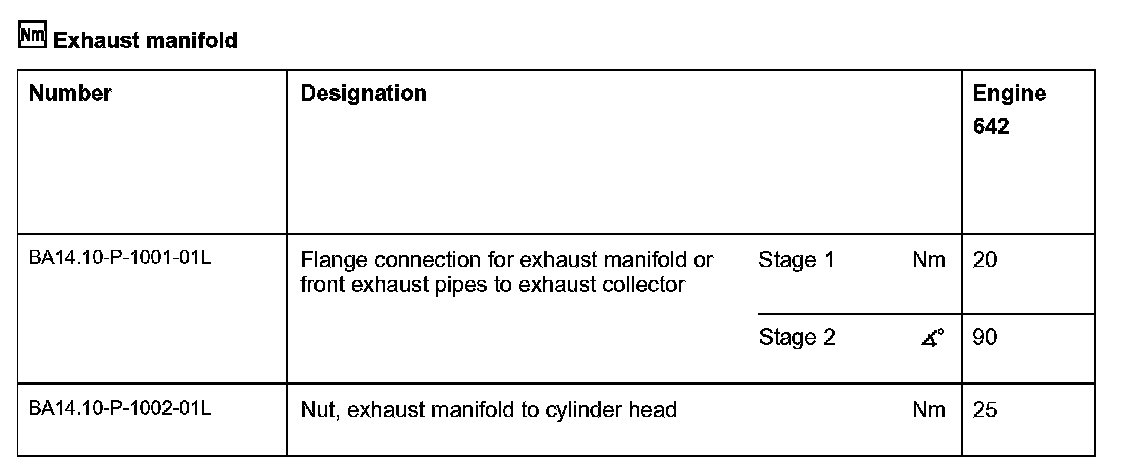

Exhaust manifold:

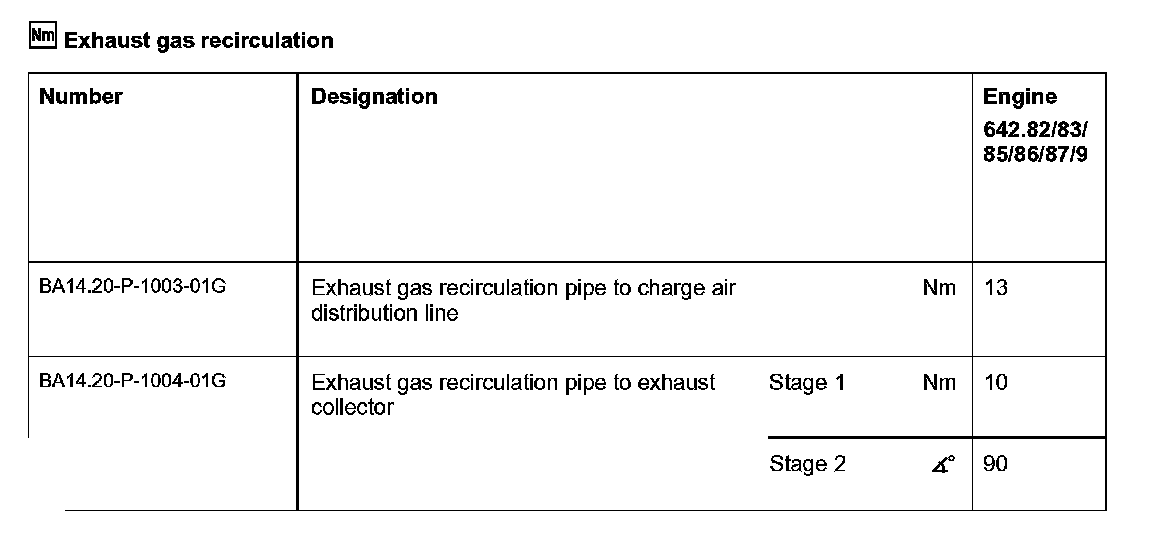

Exhaust gas recirculation:
AR14.10-P-3915TI Remove/install exhaust manifold
