AR18.00-P-1250TI Check Oil Pressure
AR18.00-P-1250TI Check Oil Pressure
AR18.00-P-1250TI Check oil pressure

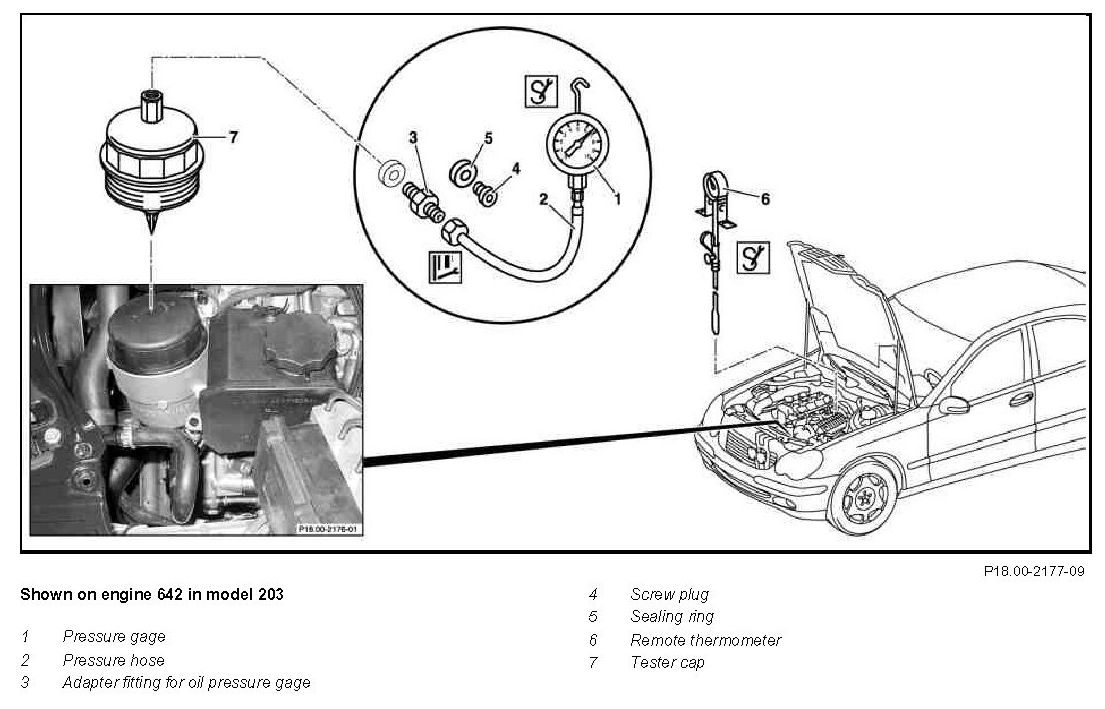

Component Identification:

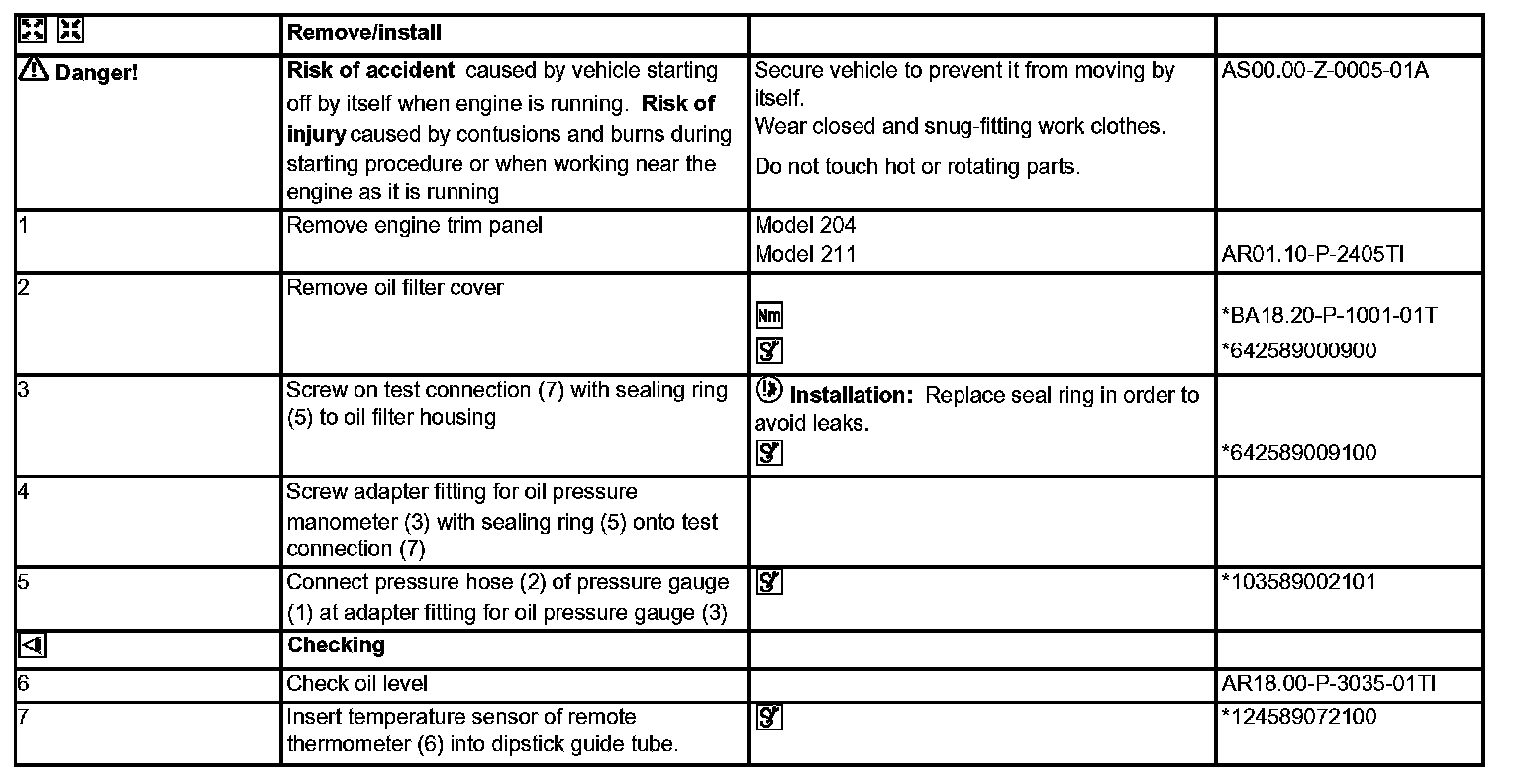

Remove/install Steps 1-7:

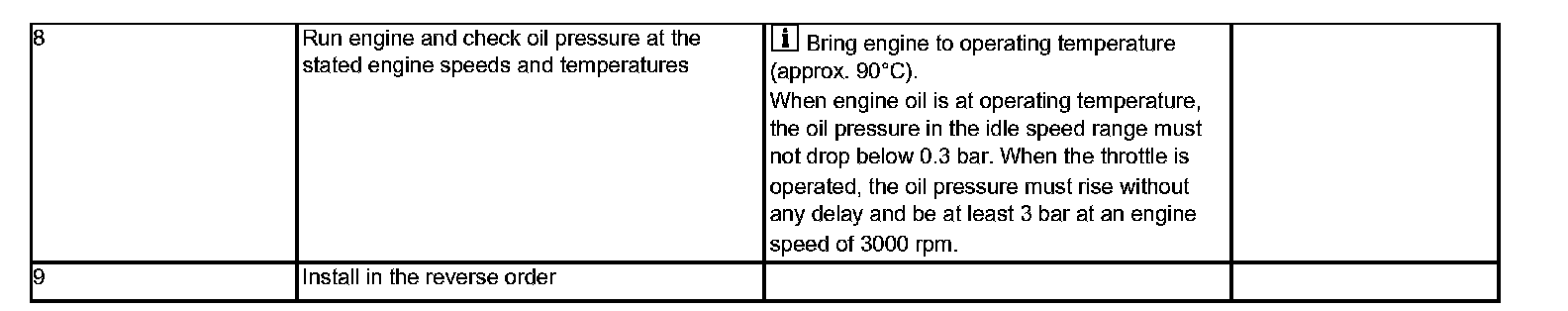

Remove/install Steps 8-9:
Engine lubrication, oil filter:

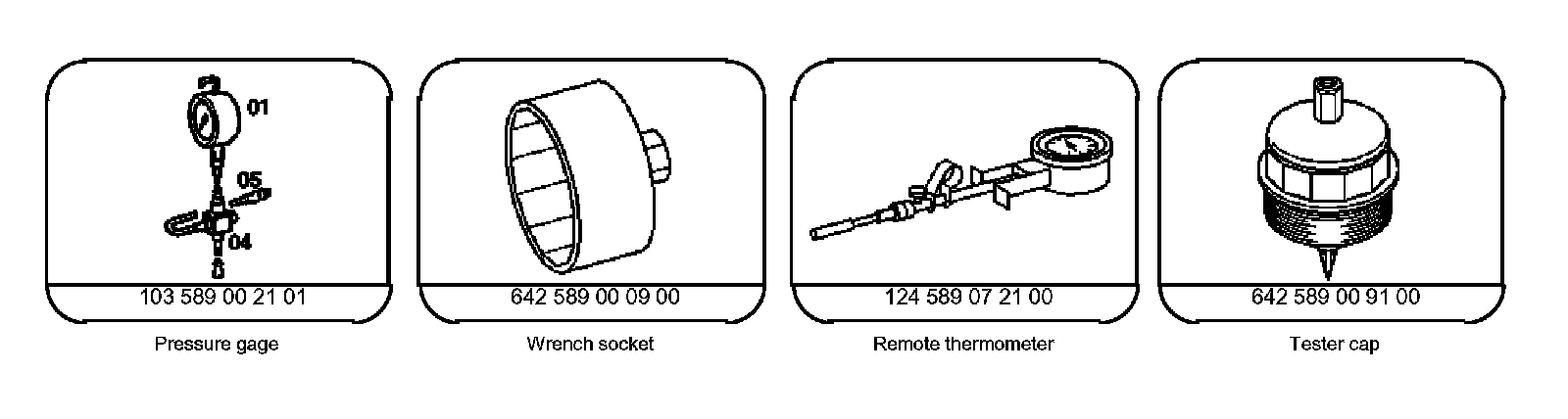

Special Tools:
