AR09.40-P-6023TI Remove/Install Oil Feed Fitting Of Turbocharger

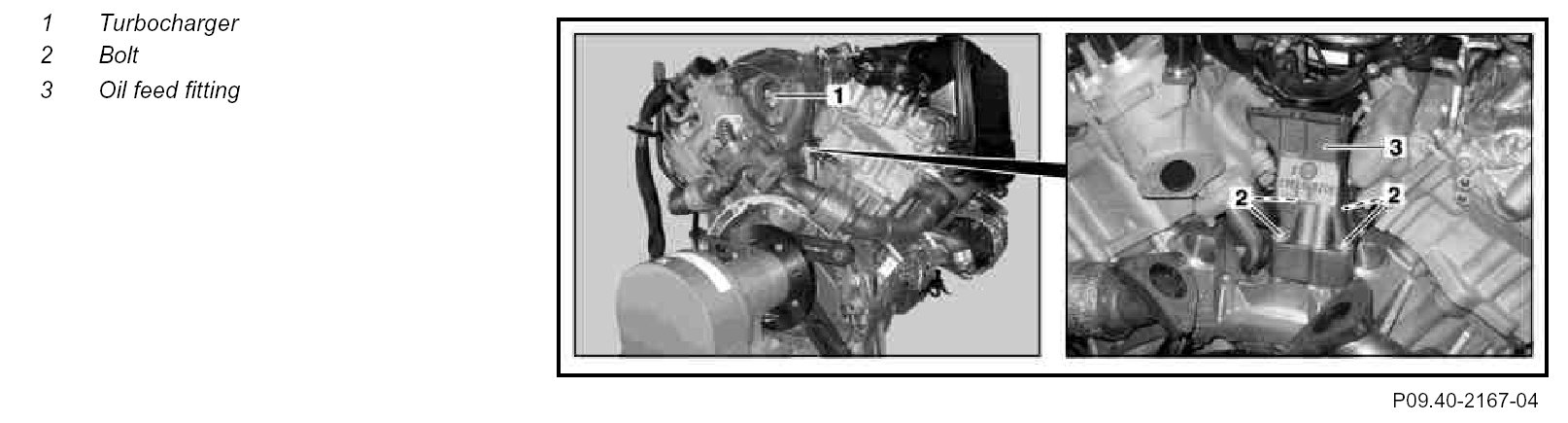

Component Identification:

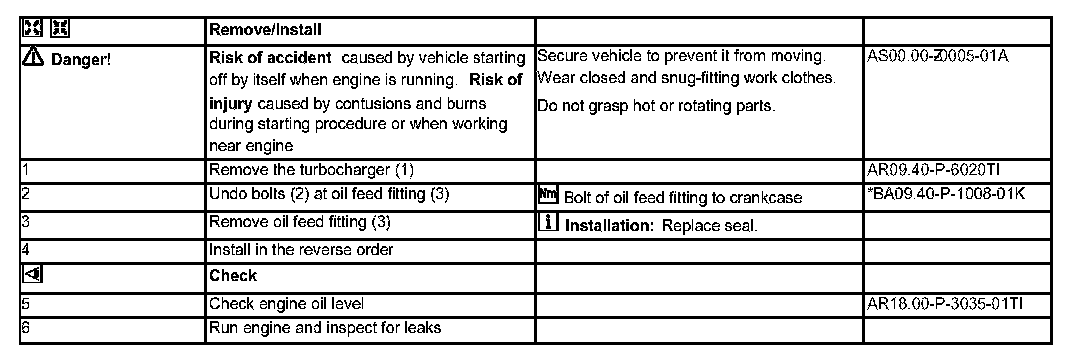

Steps 1 - 6:

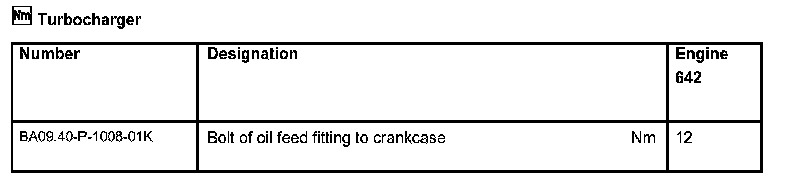

Turbocharger:
