AR22.10-P-1100TI Remove/Install Engine Mount



AR22.10-P-1100TI Remove/install engine mount

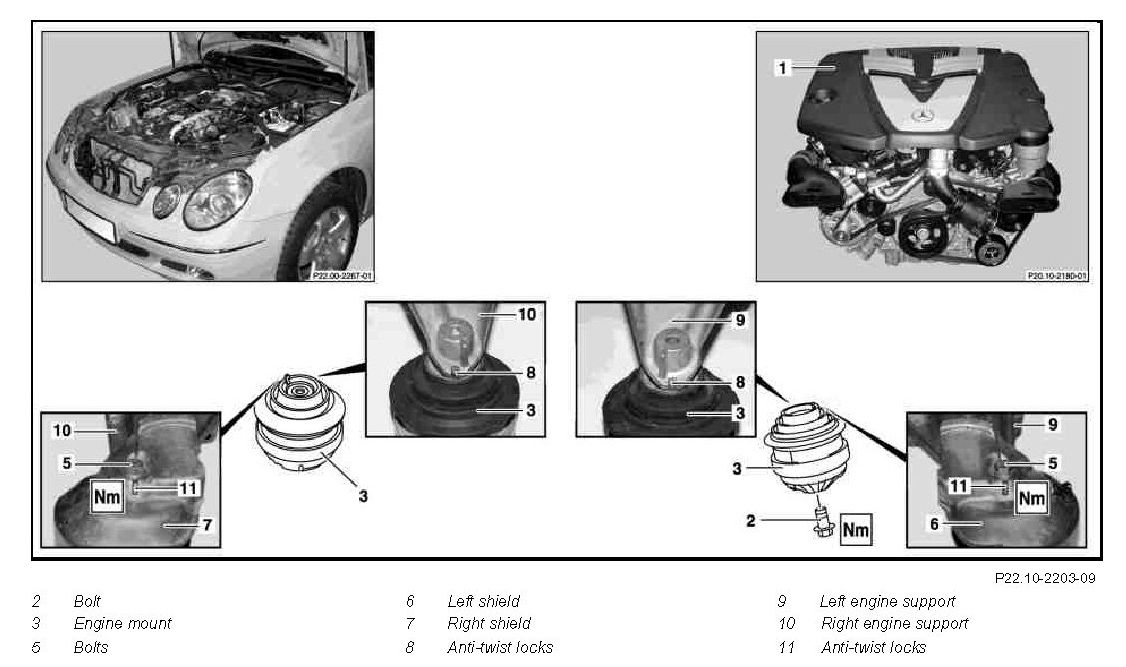

Component Identification:

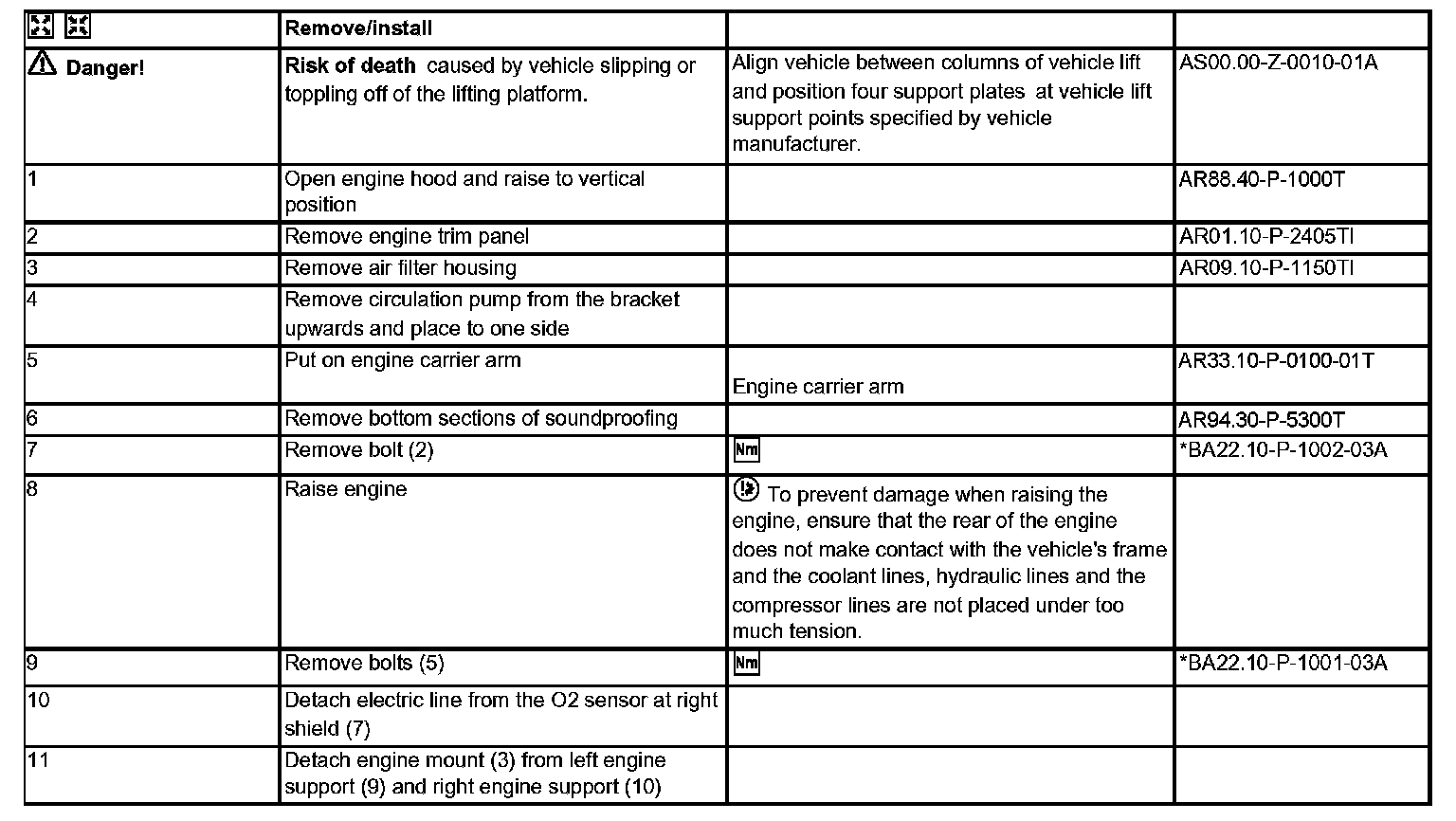

Remove/install Steps 1-11:

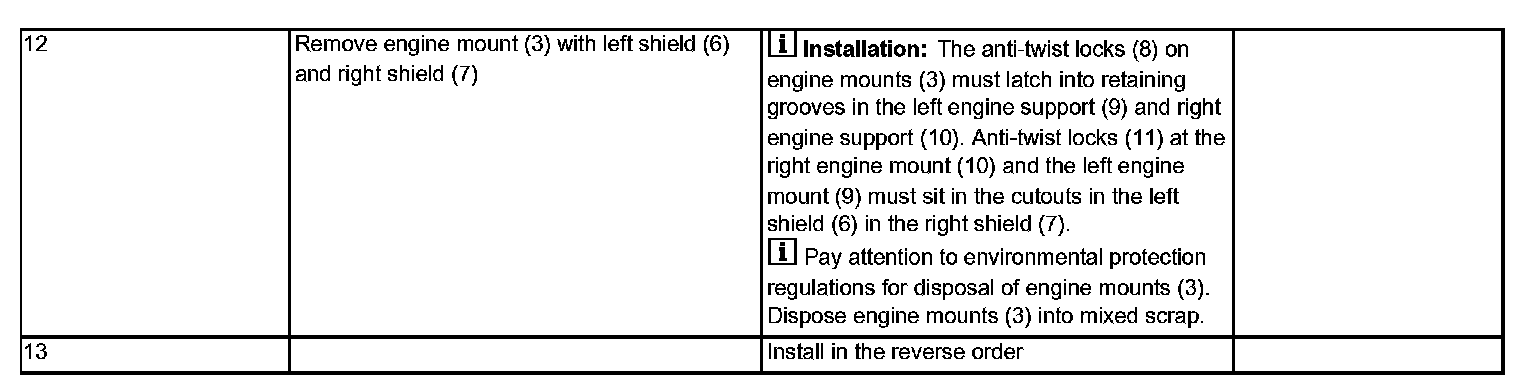

Remove/install Steps 12-13:

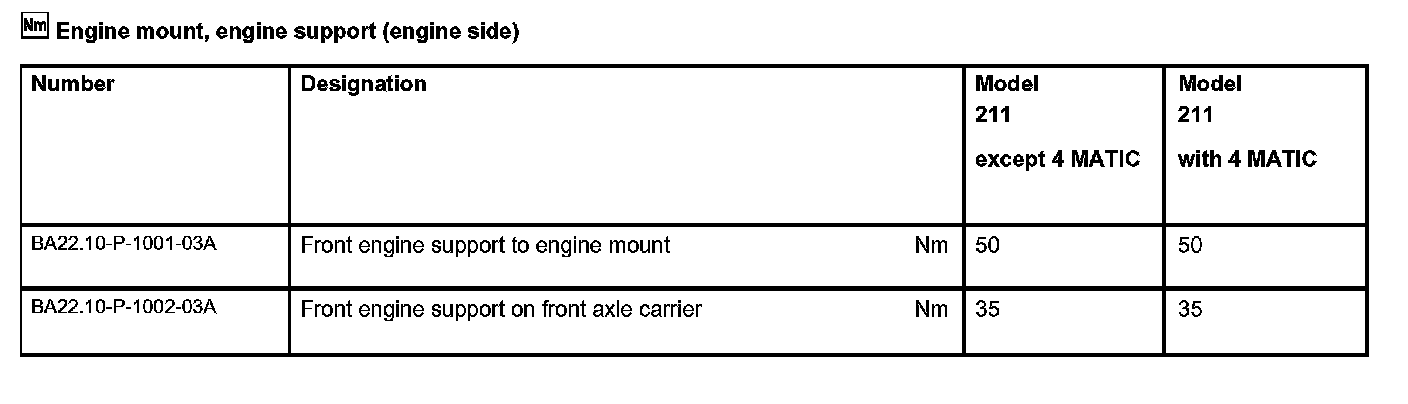

Engine mount, engine support (engine side):
