AR01.20-P-5013TI Remove/Install Left Cylinder Head Cover

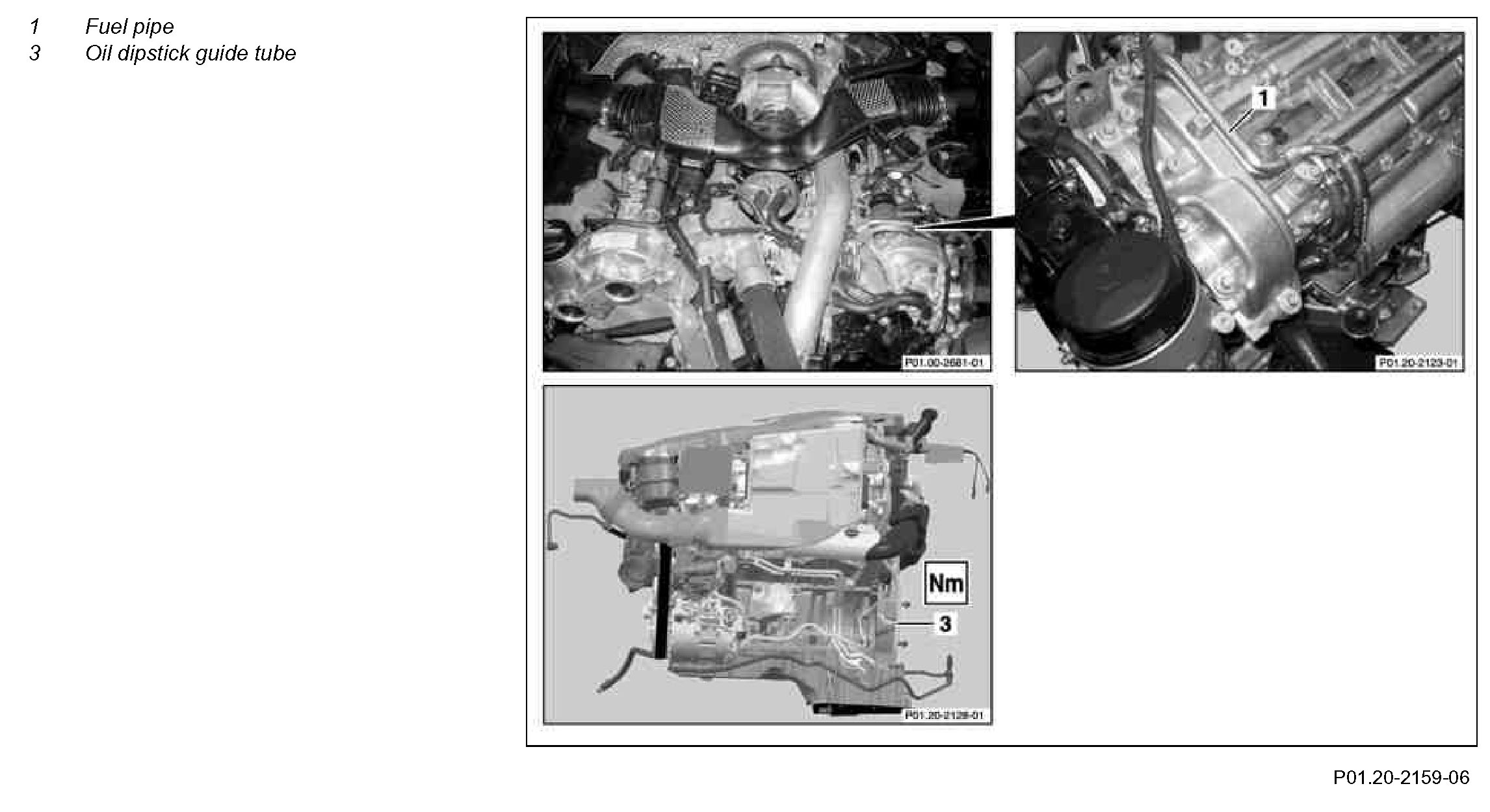

Component Identification:

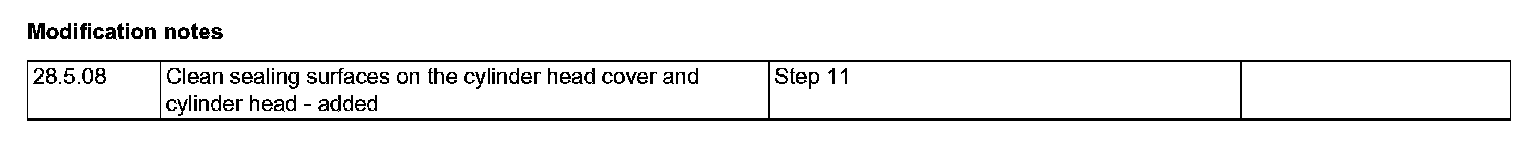

Modification notes:

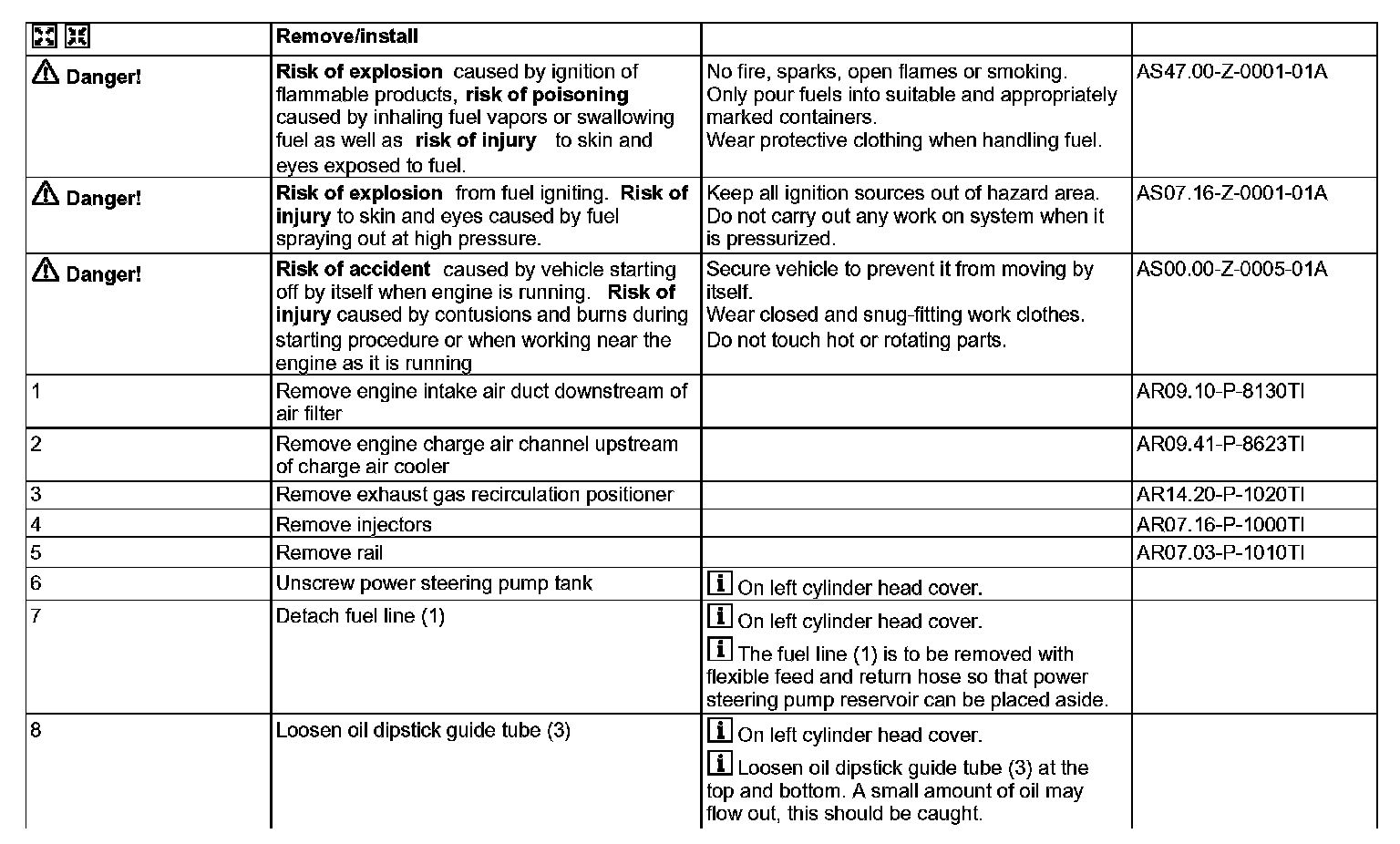

Steps 1-8:

Steps 8 (Continued)-15:

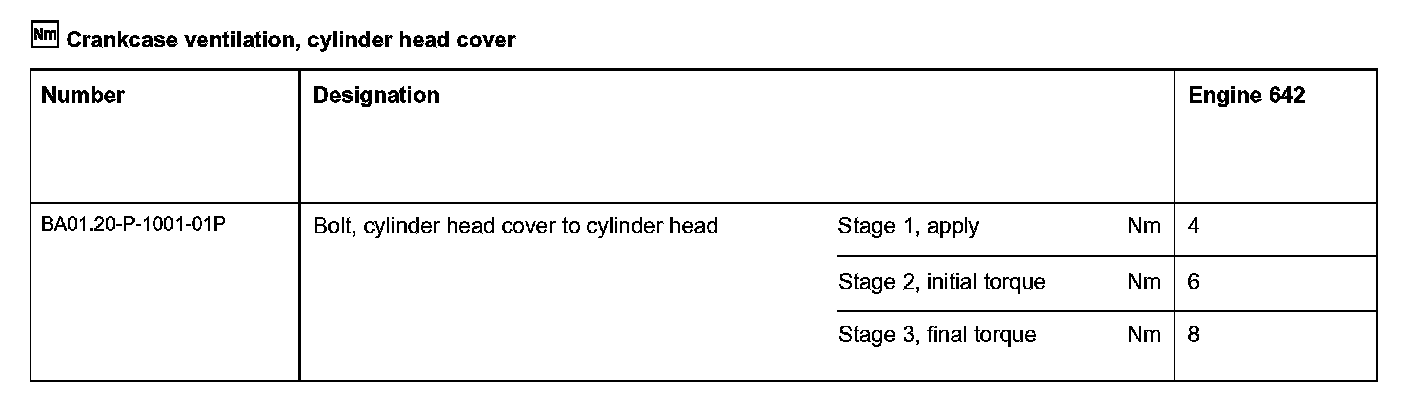

Crankcase ventilation, cylinder head cover:

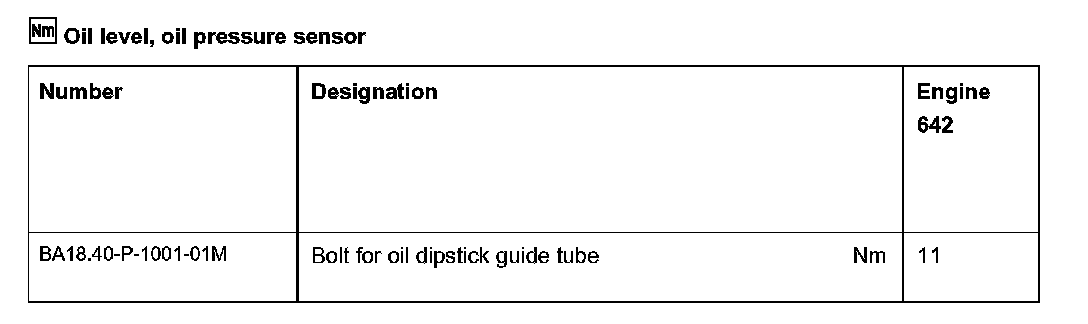

Oil level, oil pressure sensor:

Special Tools:

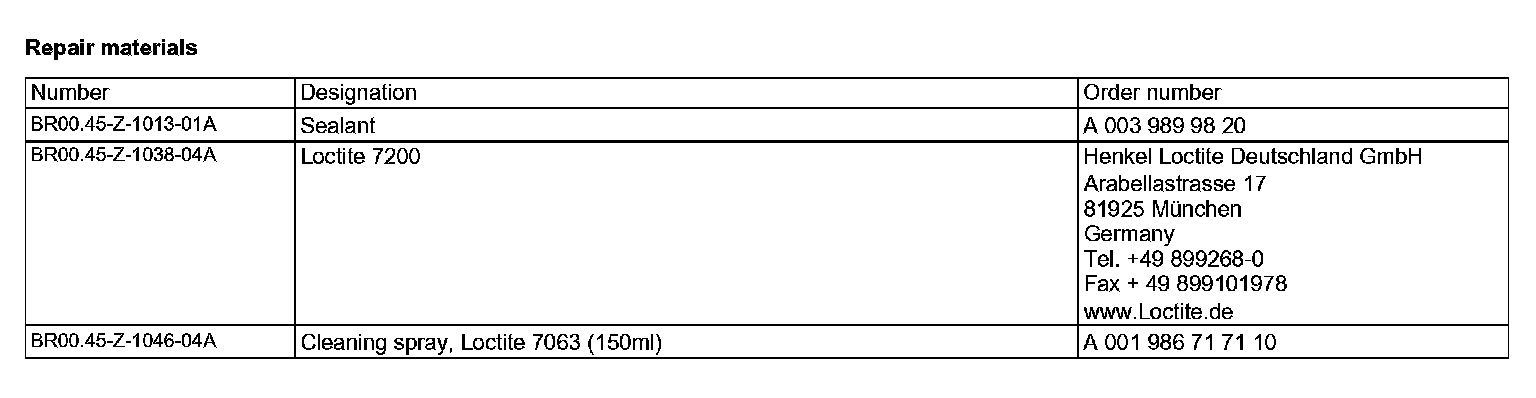

Repair materials:
