AH01.40-P-1000-06TI Notes on Application of Sealant to End Cover With Radial Shaft Seal

AH01.40-P-1000-06TI Notes on application of sealant to end cover with radial shaft seal

Sealing compound application at end cover:

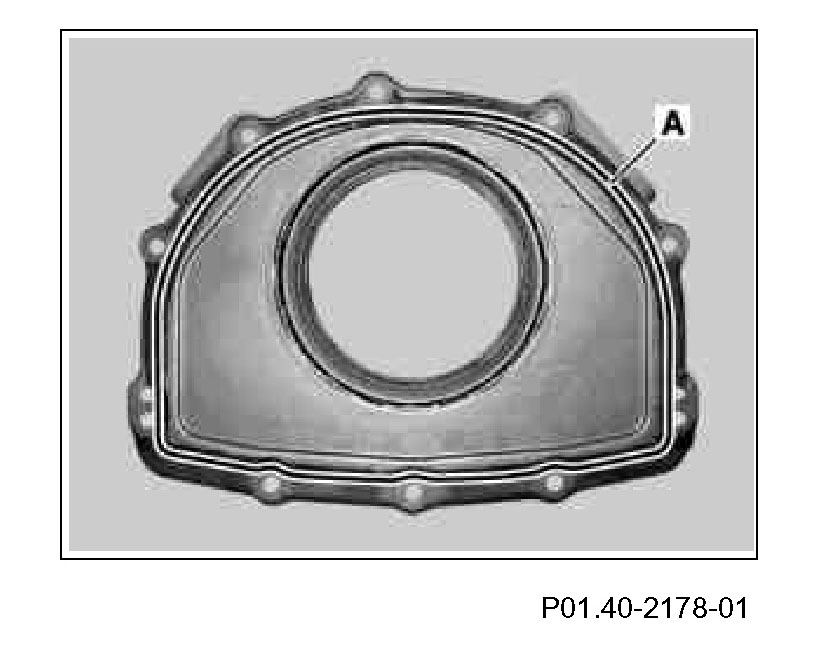

Sealing compound application at end cover
The retighten line (A) identifies the sealant run.

Sealing surfaces must be free of oil and grease. Apply sealing compound to surfaces as a bead 1.5 mm (± 0.5 mm) wide. The sealing compound must be applied within 10 min. The sealing compound bead must not be spread.
