AH20.00-P-1142-01CW Notes on Coolant Level

AH20.00-P-1142-01CW Notes on coolant level

Component Identification:

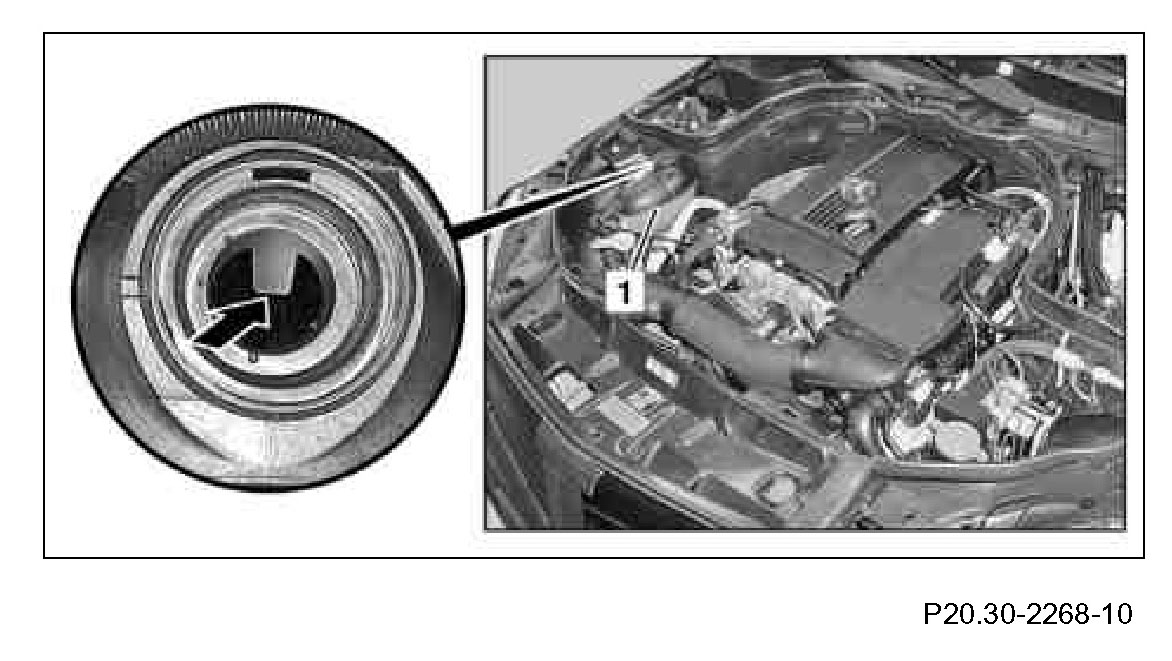

When the engine is cold, the engine coolant level must reach up to the marking (arrow) in the coolant expansion reservoir (1). When coolant is warm: approx. 1 cm above this scribe mark.
