Electric Wiring Diagram of Solder Joints/Z Connector Sleeves PE00.19-U-2600DA

Electric Wiring Diagram Of Solder Joints/Z Connector Sleeves PE00.19-U-2600DA
- Z3/11z2, Z7/1, Z7/24, Z7/53, Z7/56, Z7/57, Z7/58z1, Z50/5, Z81/5

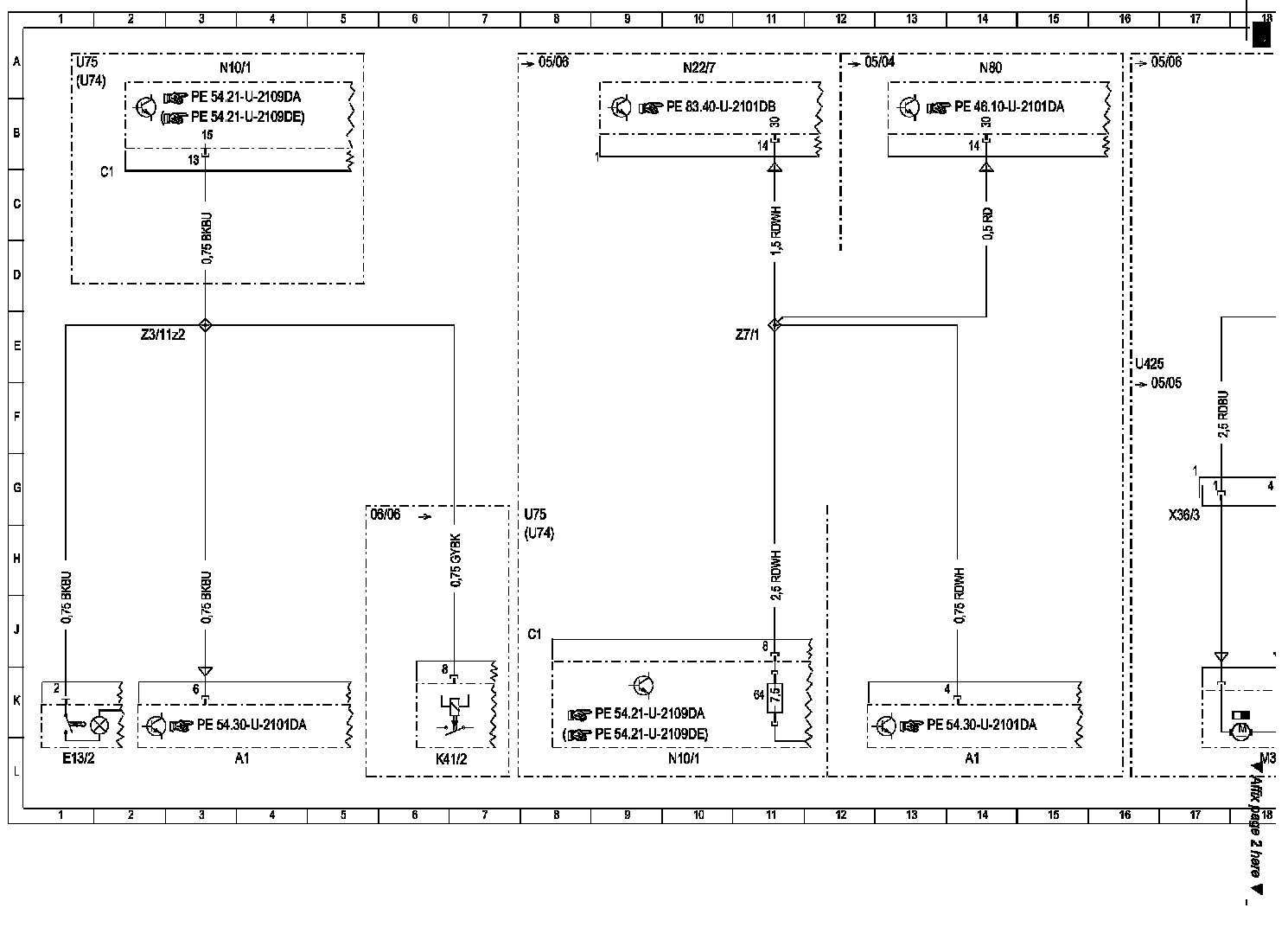

Wiring Diagram (Part 1):

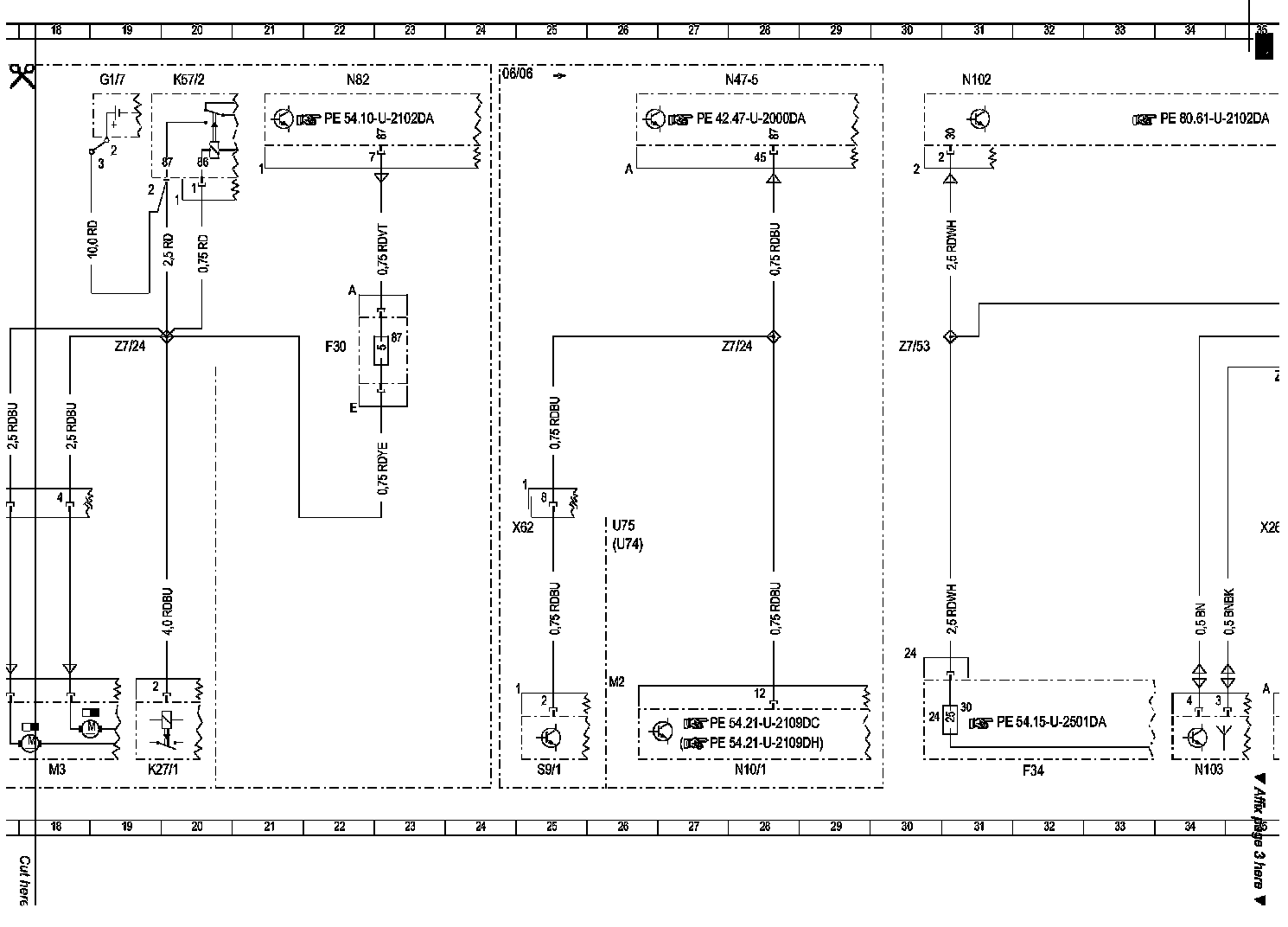

Wiring Diagram (Part 2):

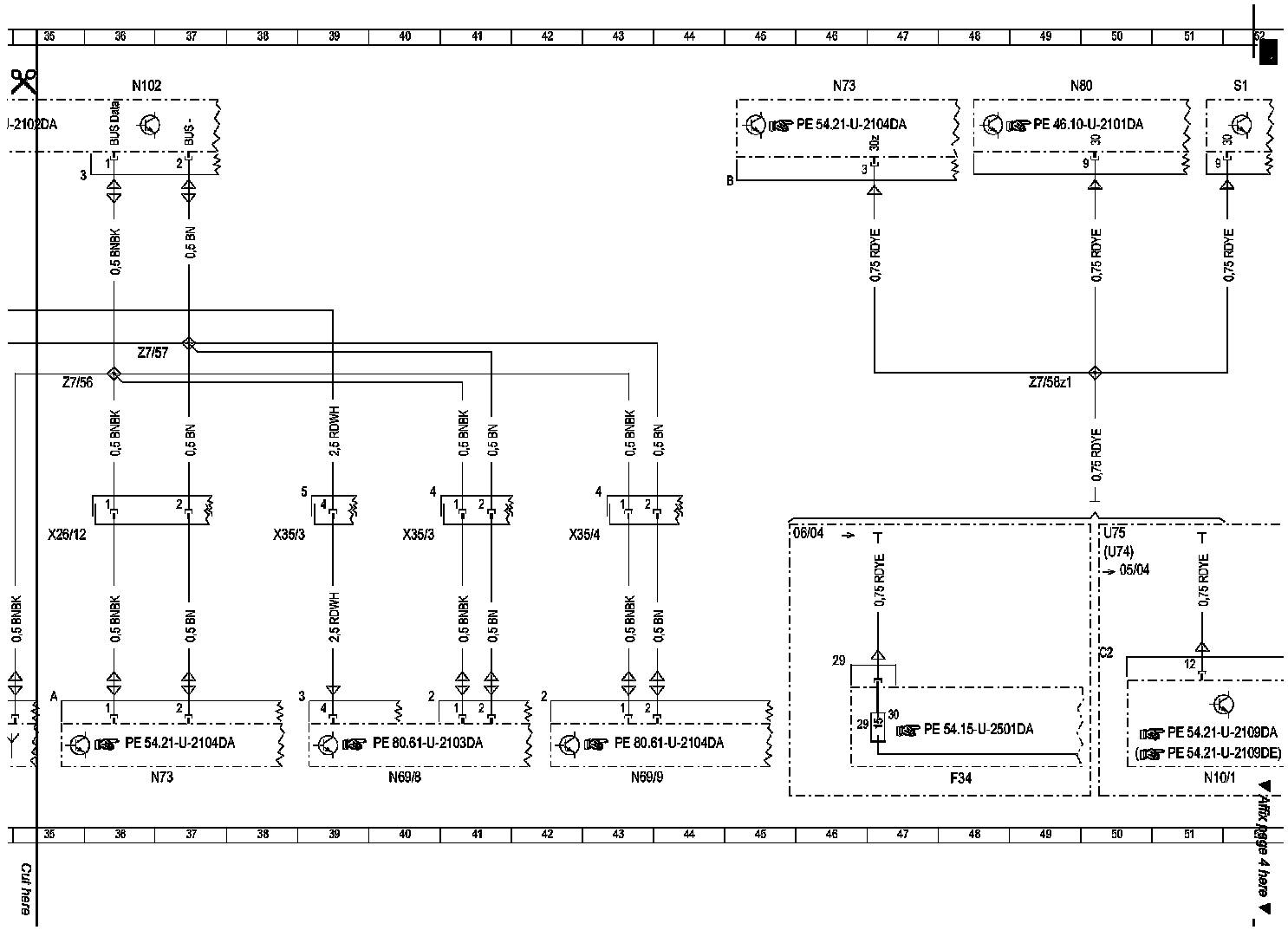

Wiring Diagram (Part 3):

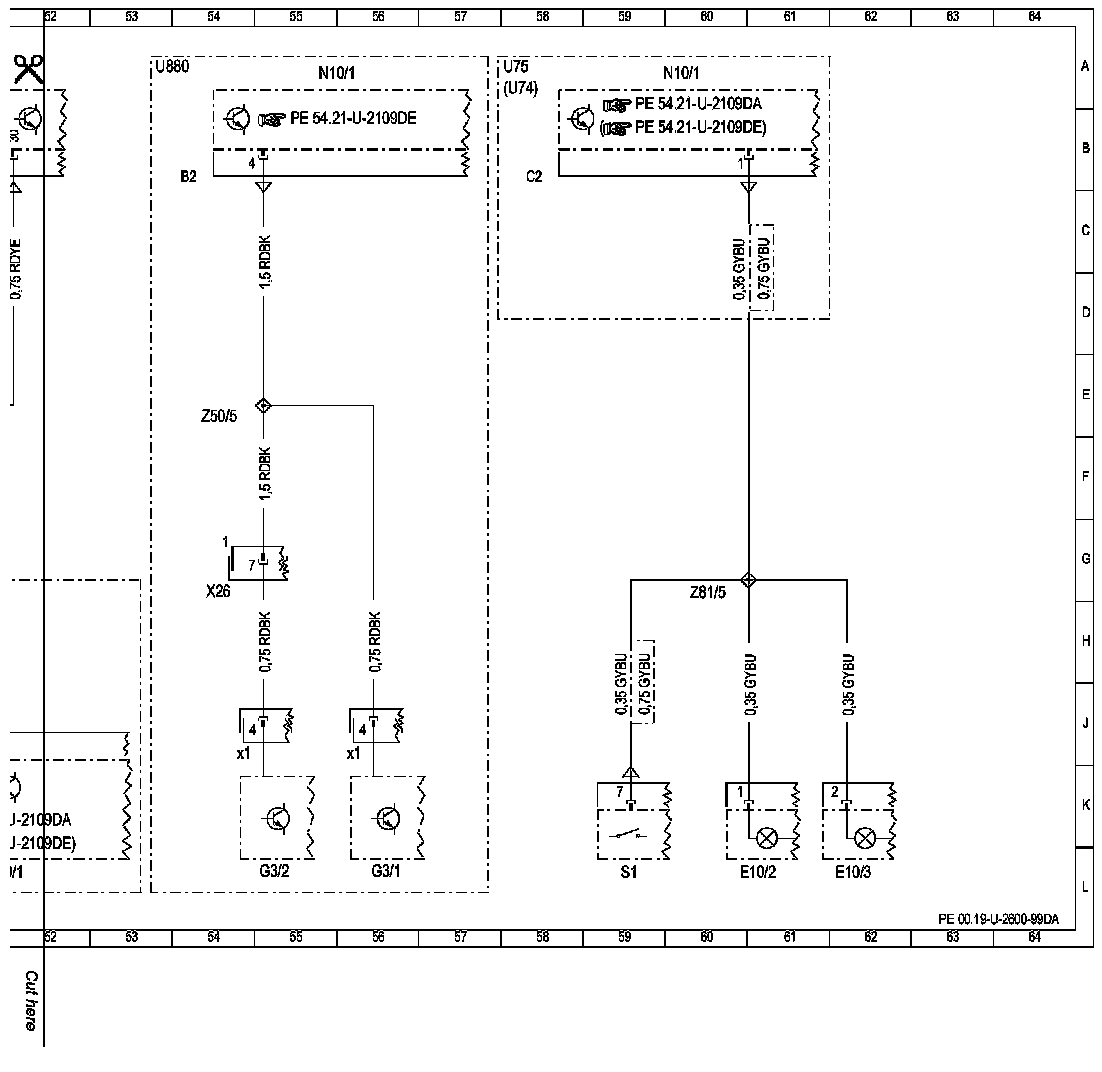

Wiring Diagram (Part 4):

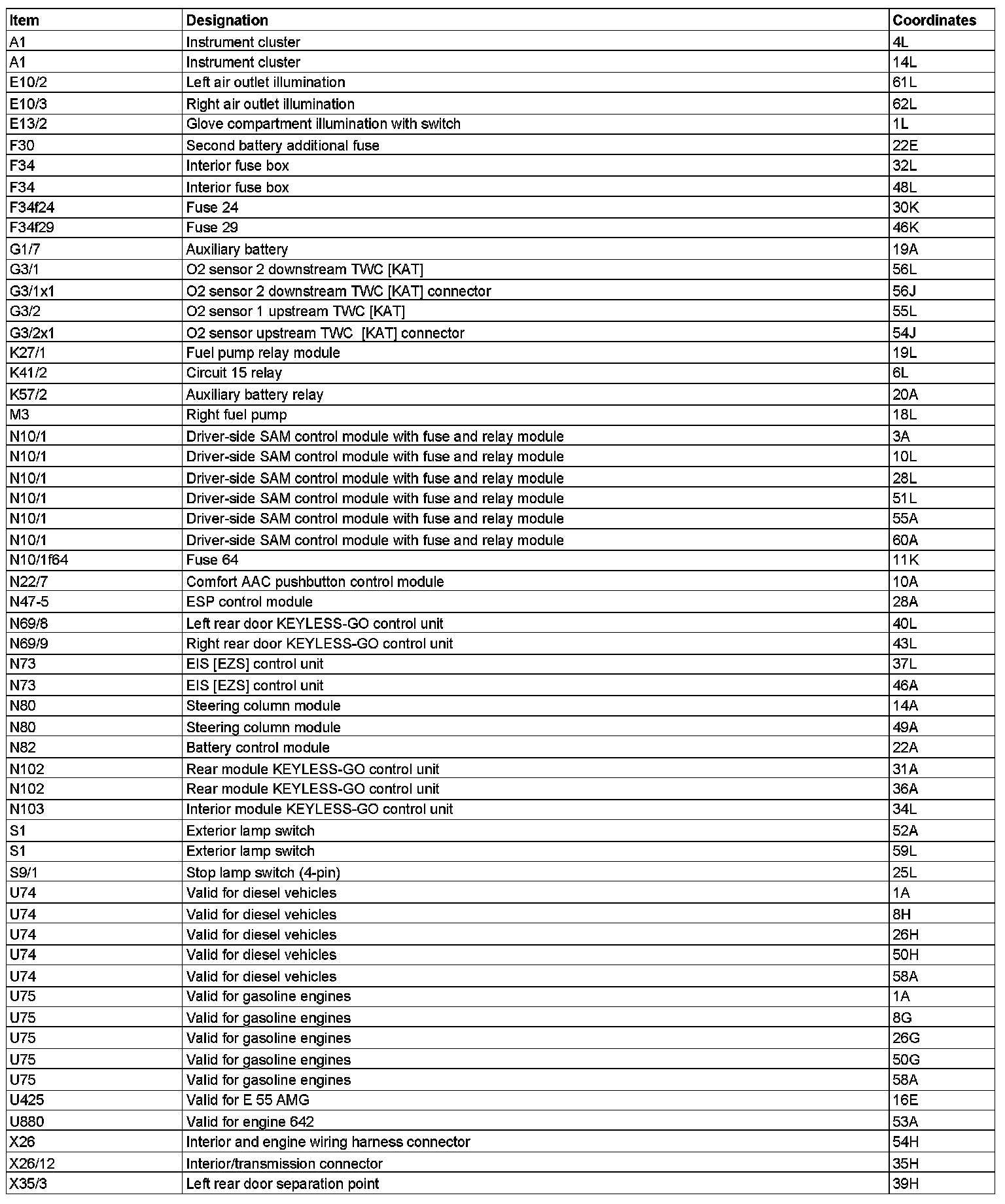

Component Description/Coordinates, A1 To X35/3:

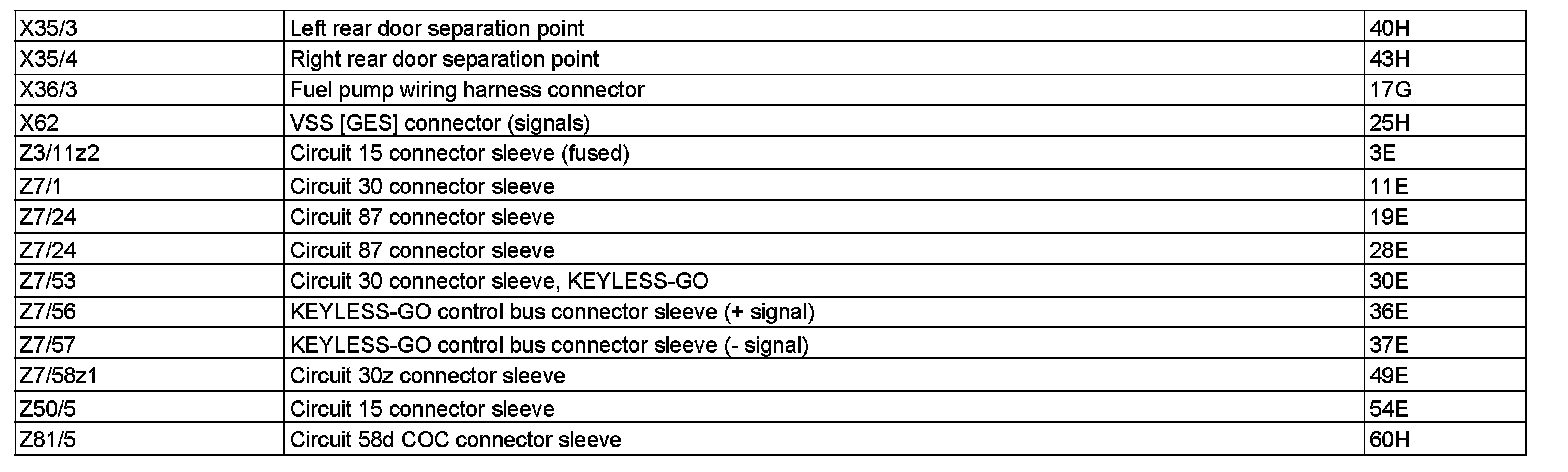

Component Description/Coordinates, X35/3 To Z81/5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
