Wiring Diagram For Media Interface Control Unit PE82.60-P-2105DA

Wiring Diagram For Media Interface Control Unit PE82.60-P-2105DA
- with CODE (518) Media interface

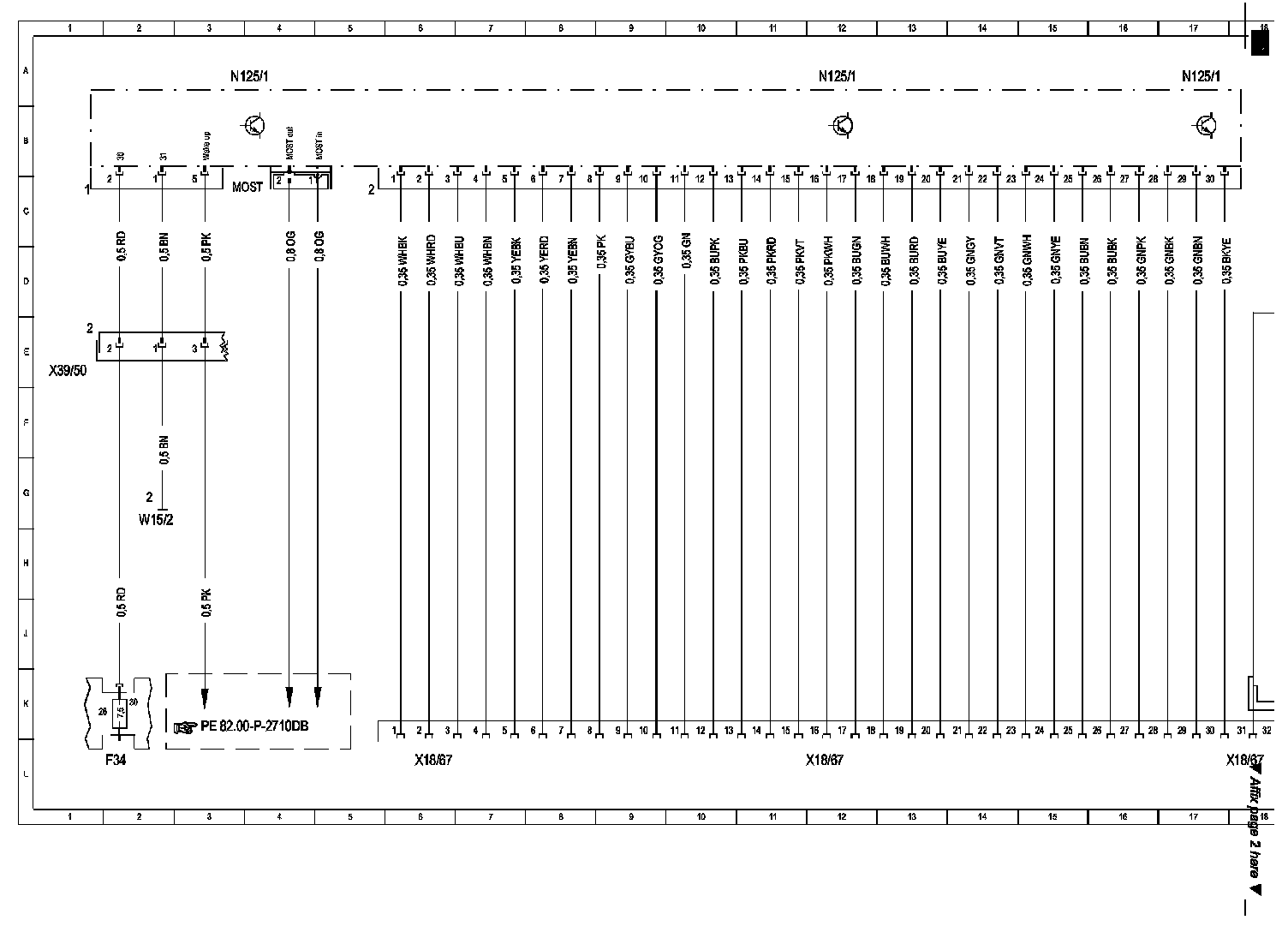

Wiring Diagram (Part 1):

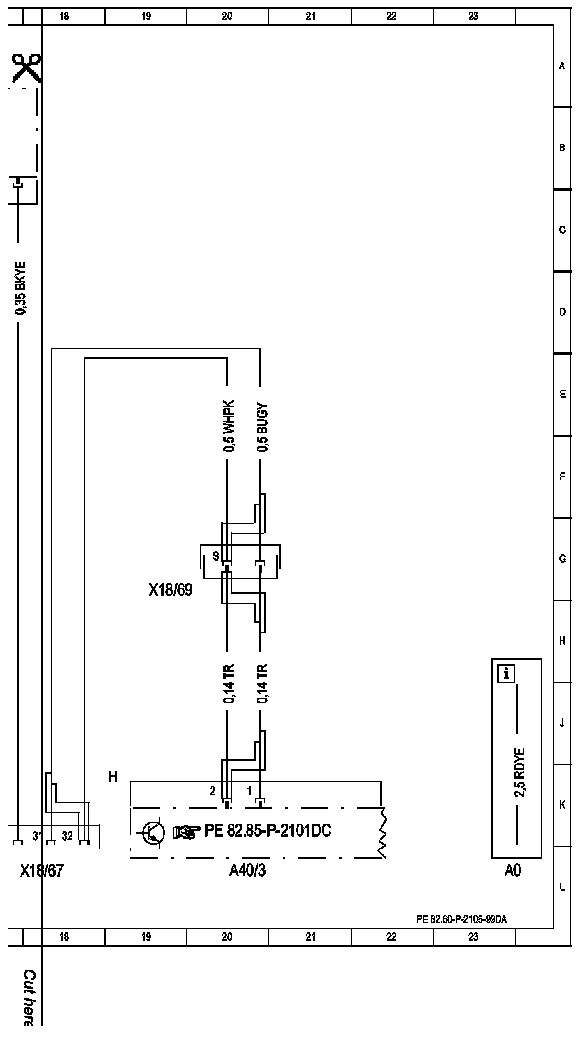

Wiring Diagram (Part 2):

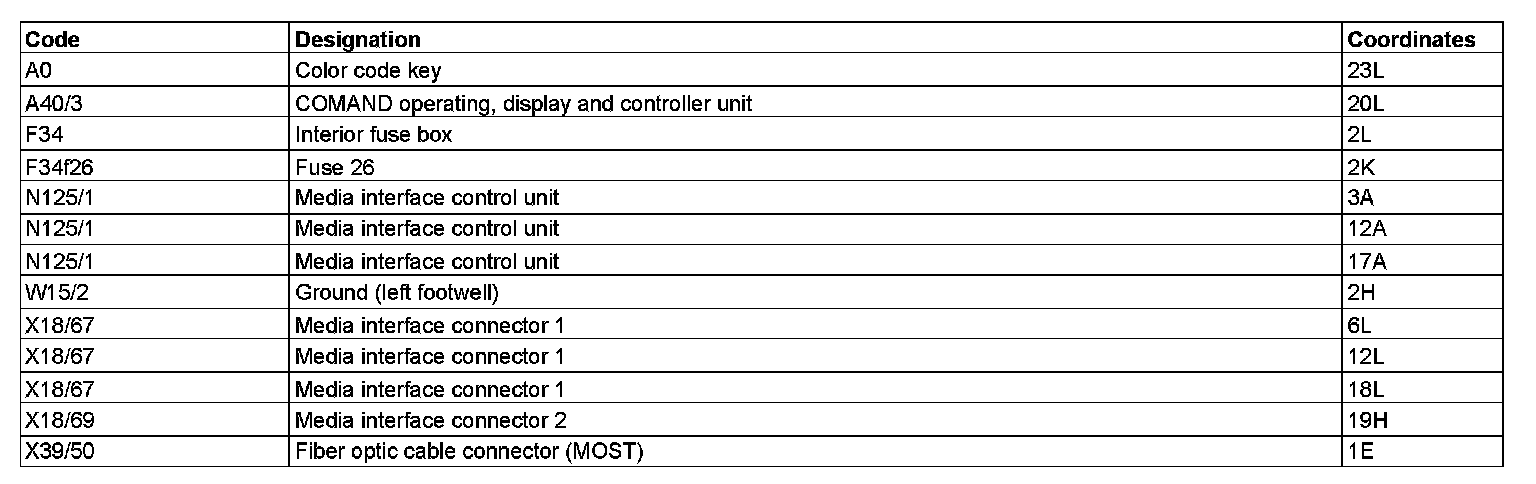

Component Description/Coordinates, A0 To X39/50:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
