Electrical Diagrams

Wiring Diagram Parktronic System (PTS) Control Module PE54.65-U-2101DB

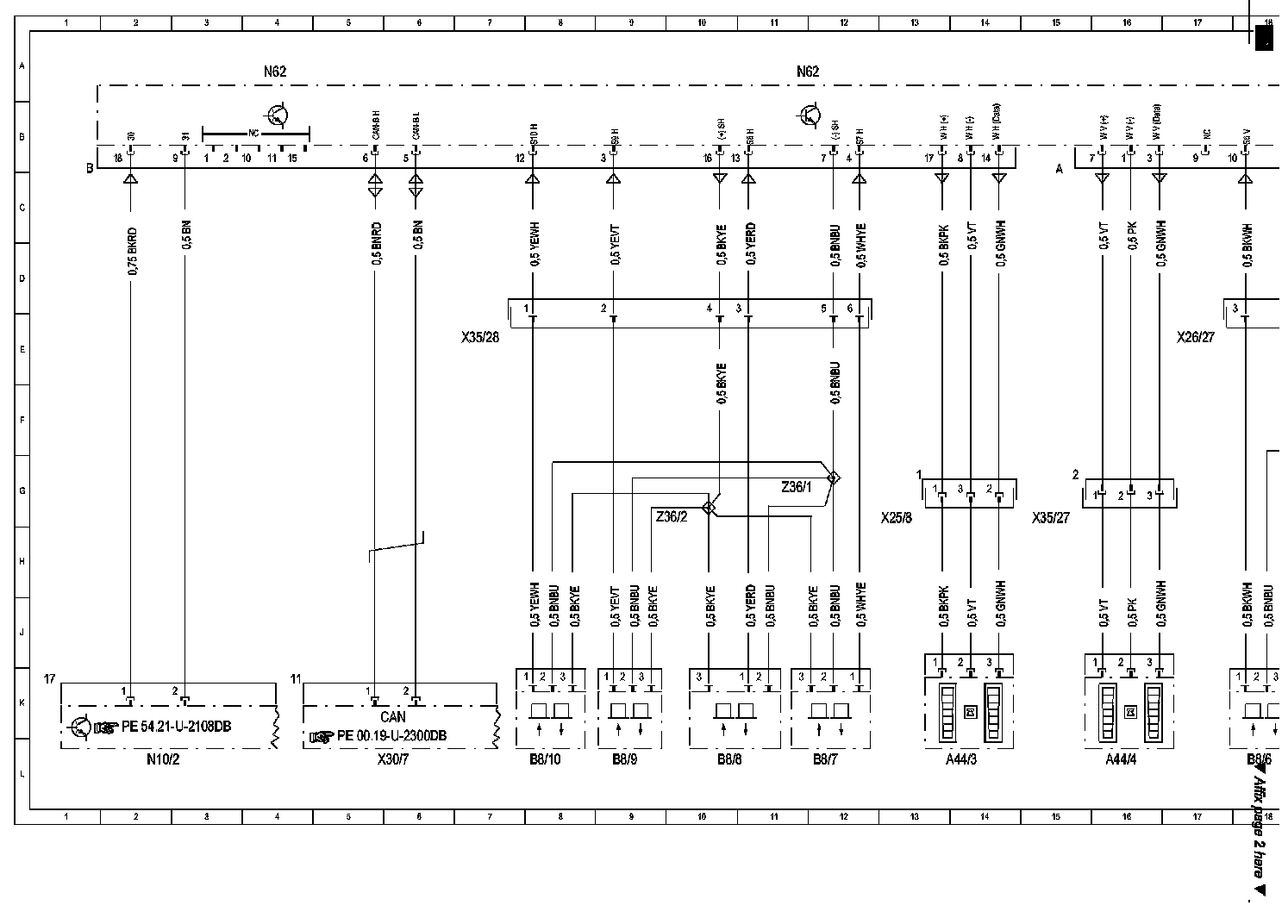

Wiring Diagram (Part 1):

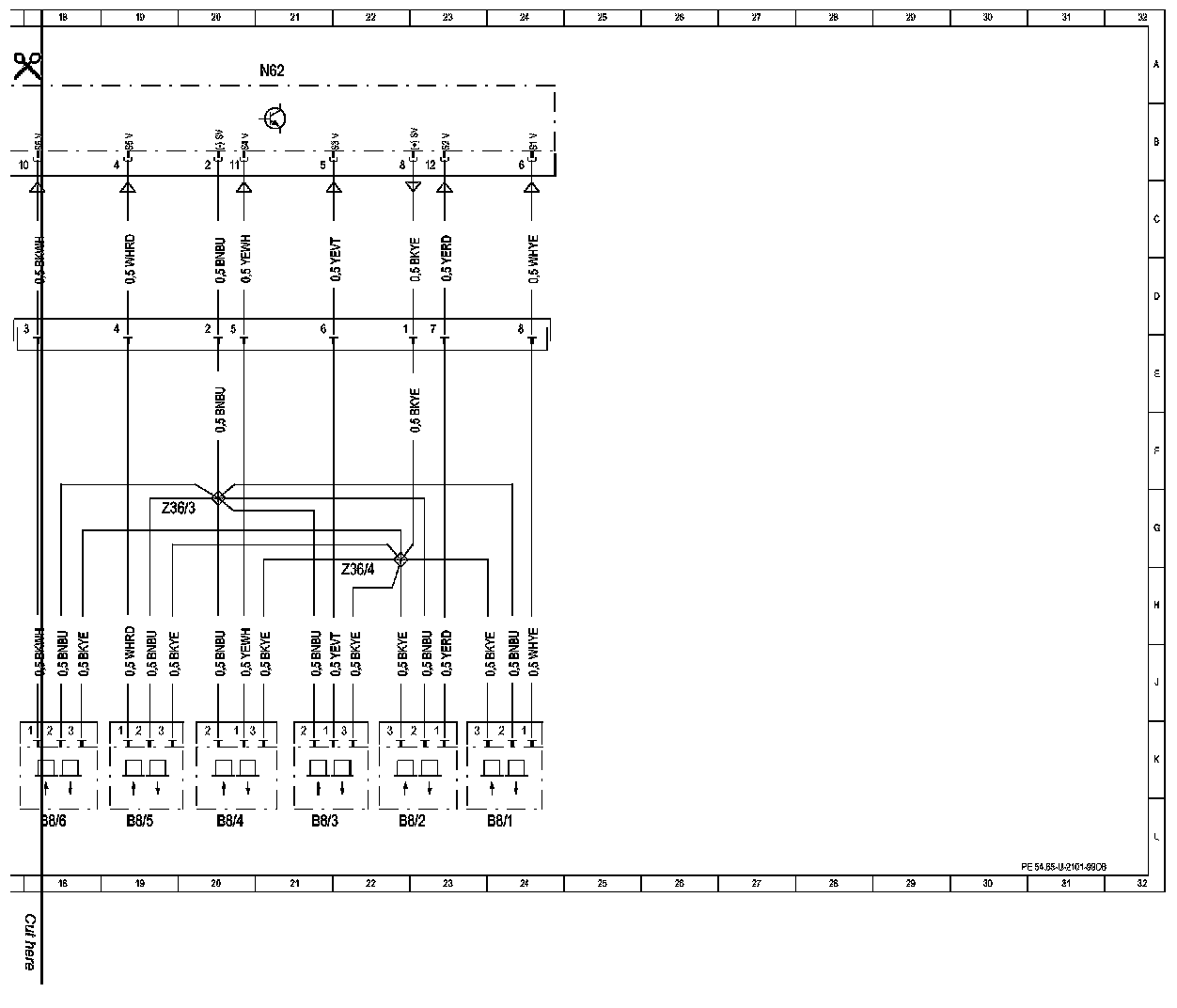

Wiring Diagram (Part 2):

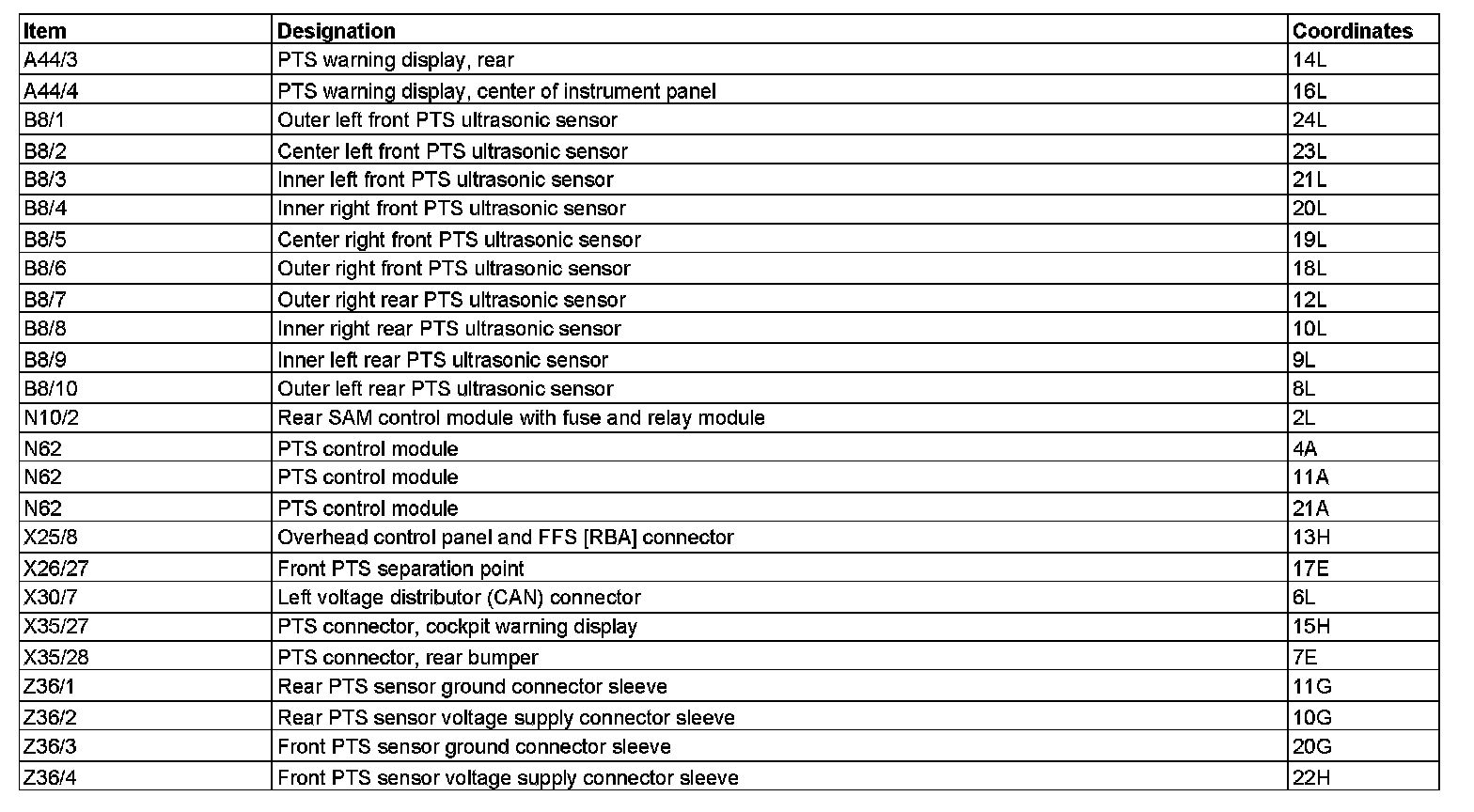

Component Description/Coordinates, A44/3 To Z36/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
