Removal and Replacement

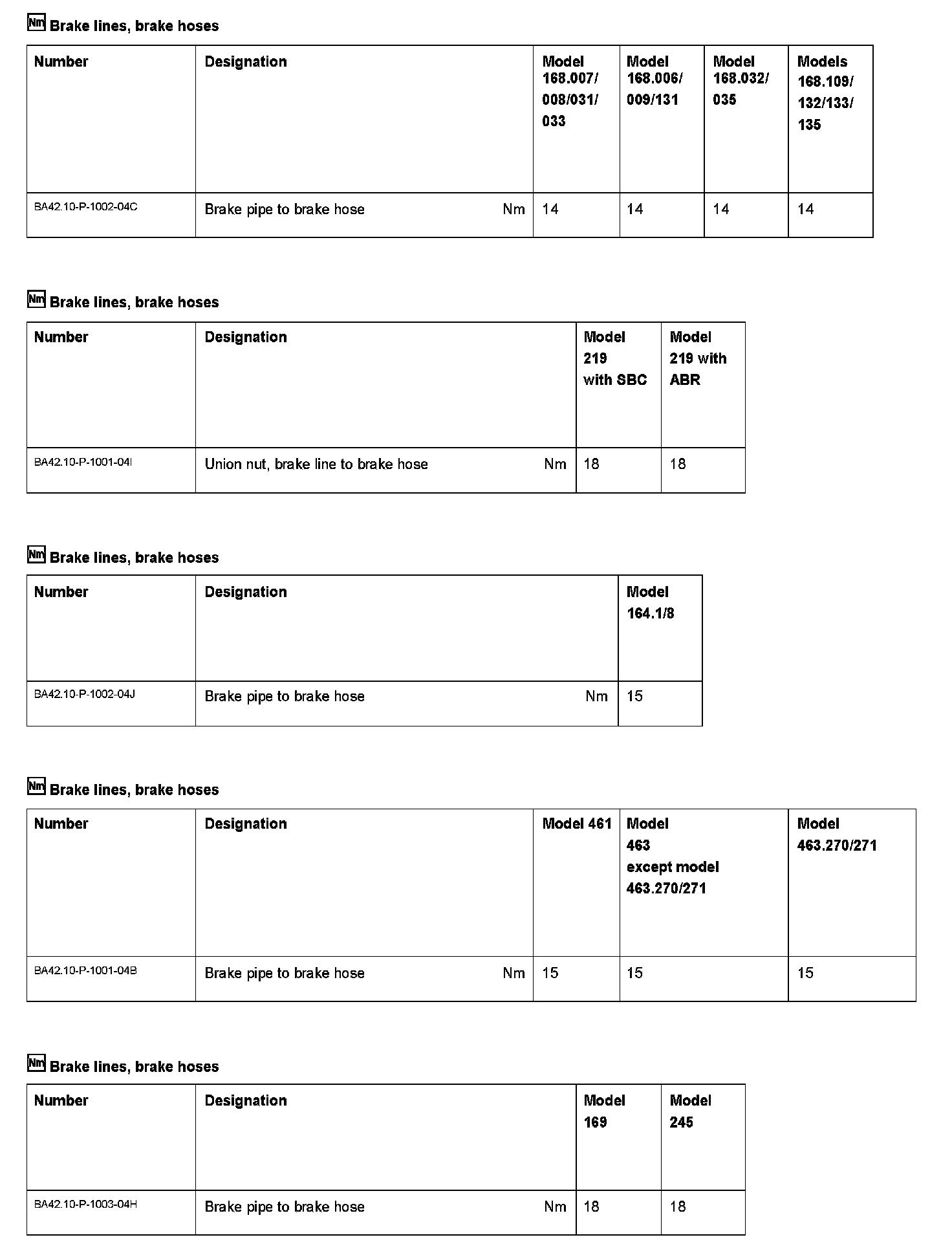

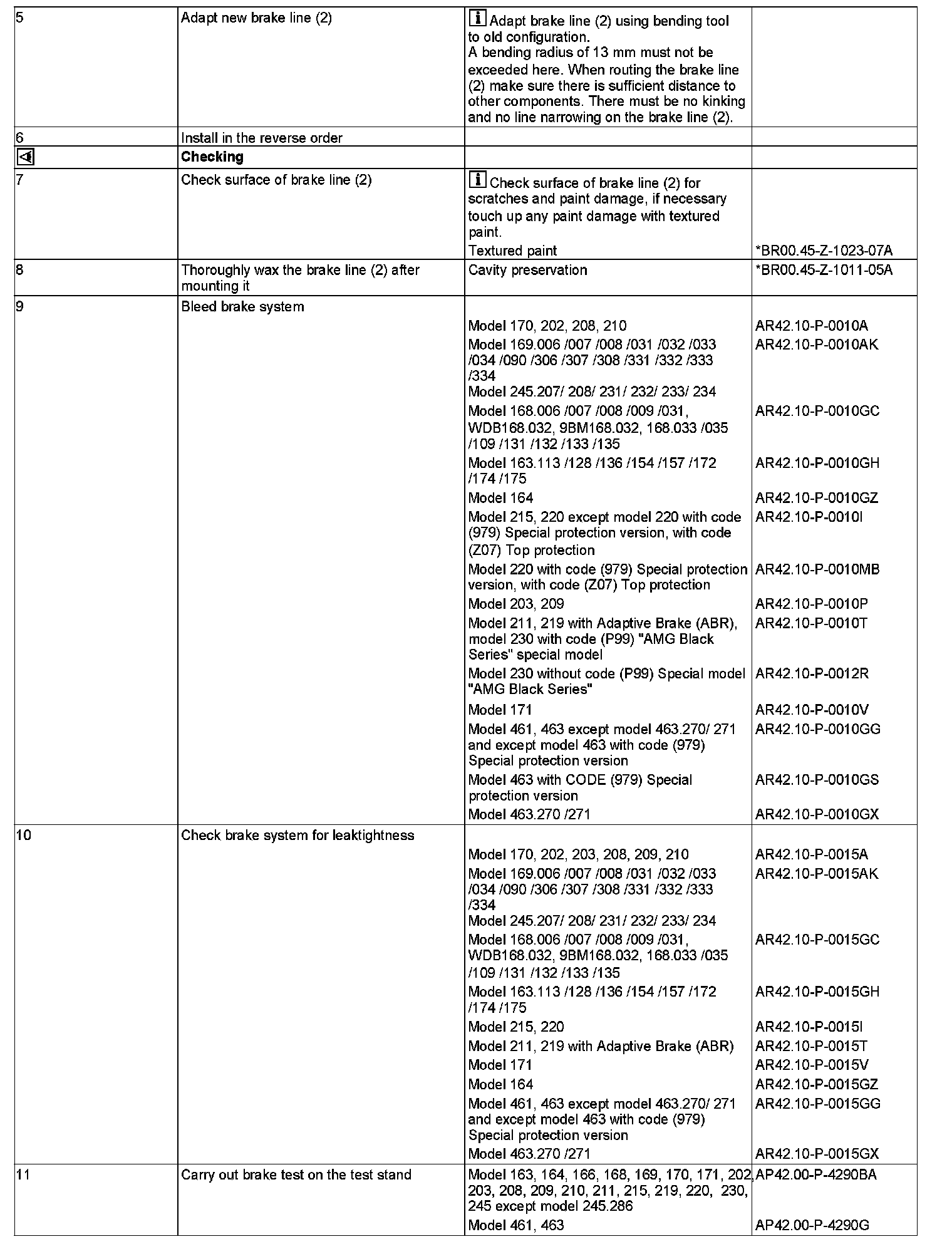

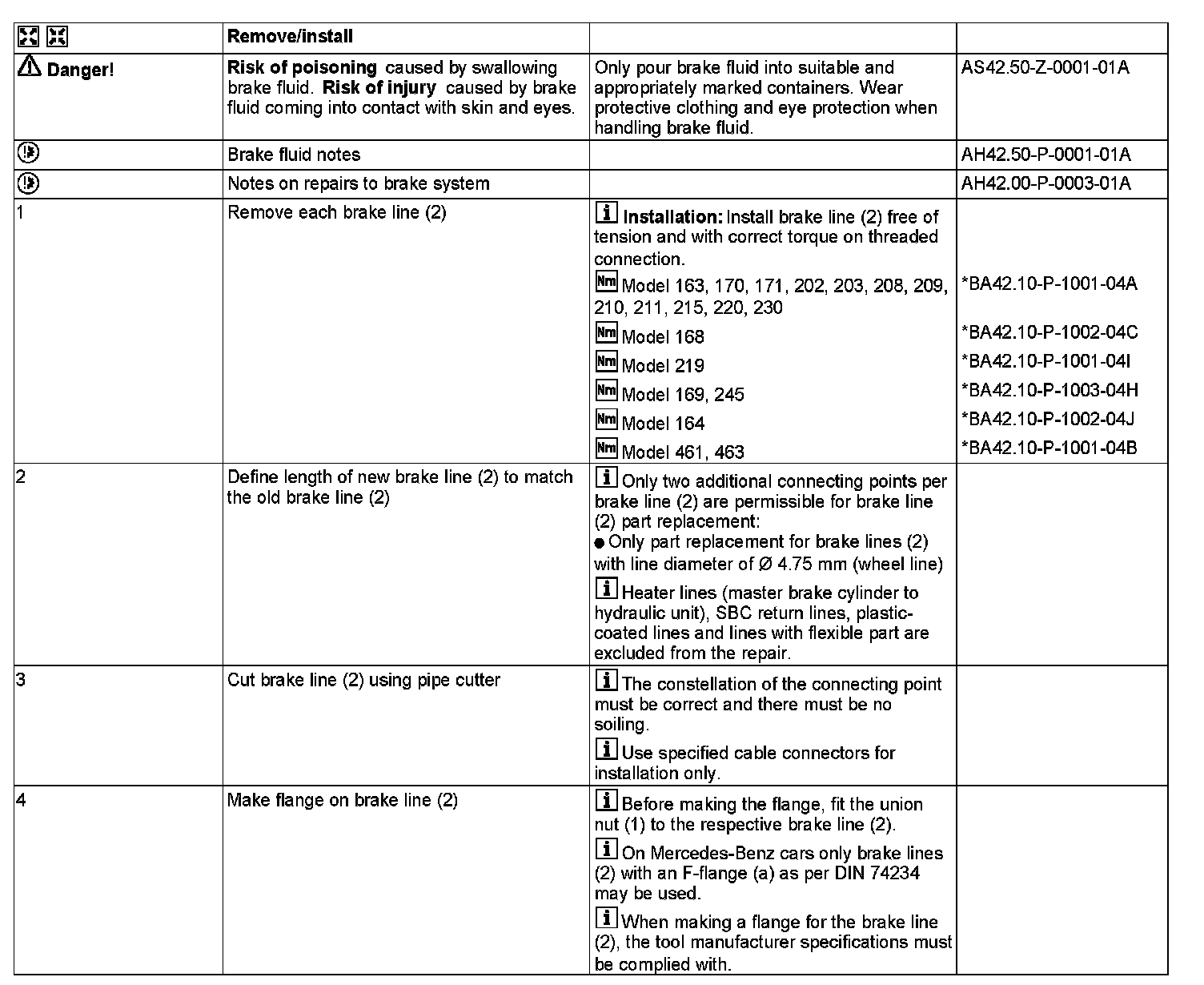

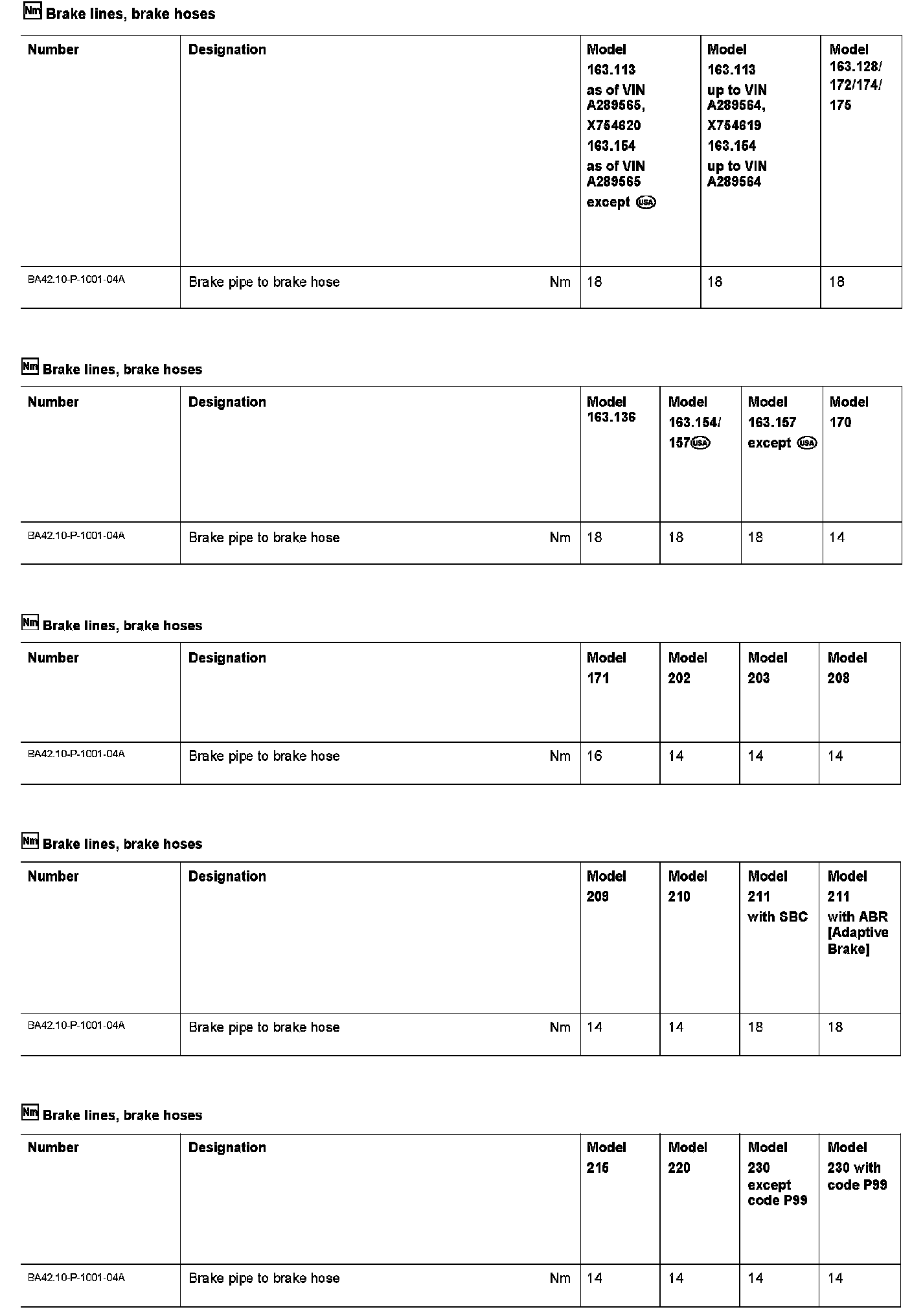

AR42.10-P-0020A Replace Brake Lines
MODEL 163, 164, 168, 169, 170, 171, 202, 203, 208, 209, 210, 211, 215, 219, 220, 230, 245
MODEL 461, 463





1 Union nut
2 Brake line

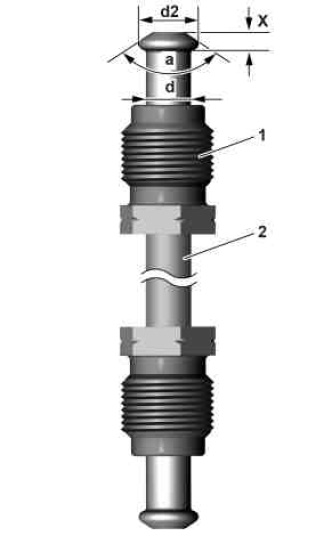

a F-flange (115° )
d Line diameter diameter 4.75 mm
d2 Flange diameter (diameter = 7.1 F 0.18 mm)
X Flange height (Height= 2.3 F 0.3 mm)
