Home >> Mercedes Benz >> 2009 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Brakes and Traction Control >> Brake Pedal Assy >> Service and Repair >> AR29.10-P-0300T Remove/Install Pedal Assembly

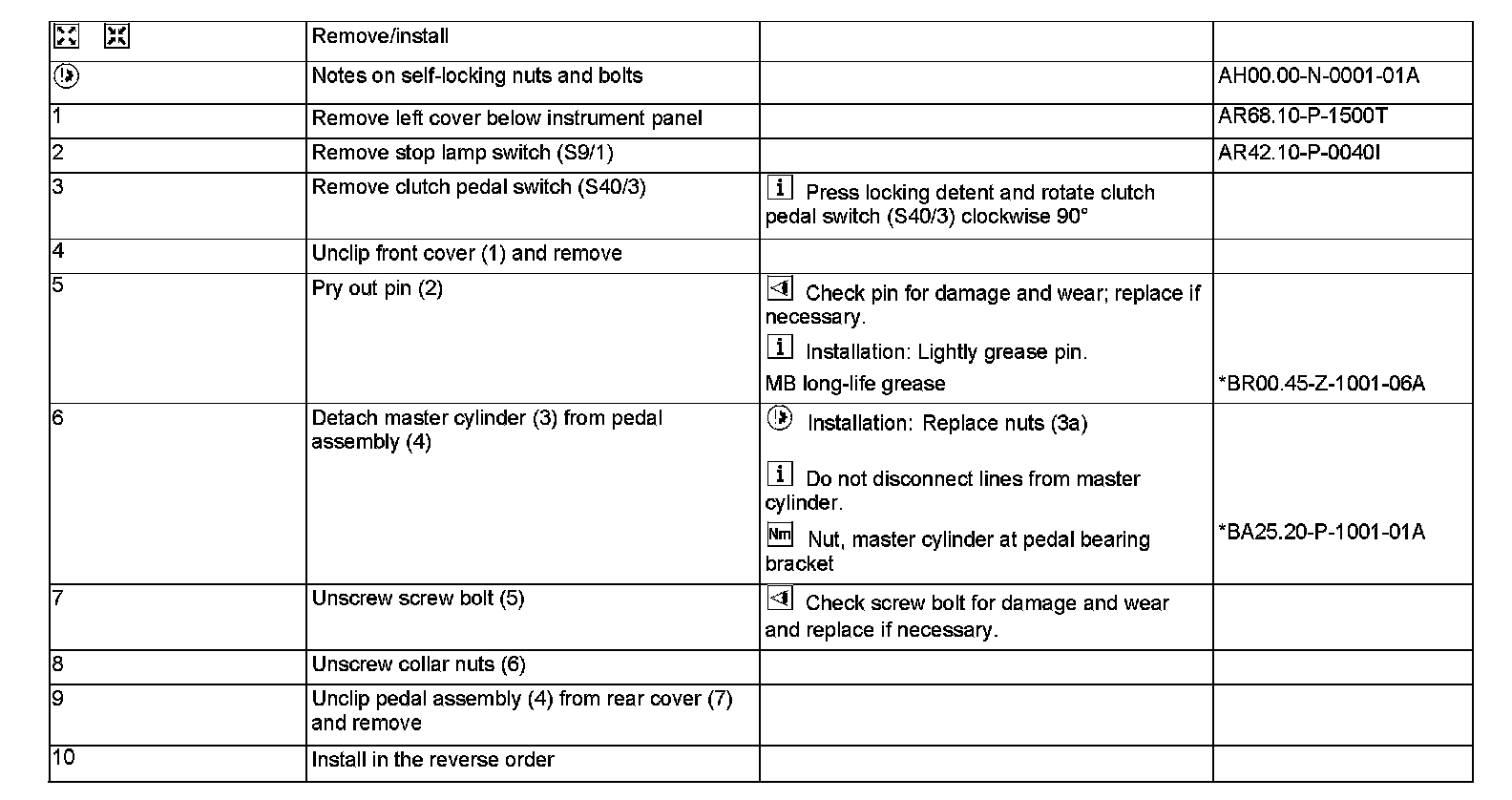

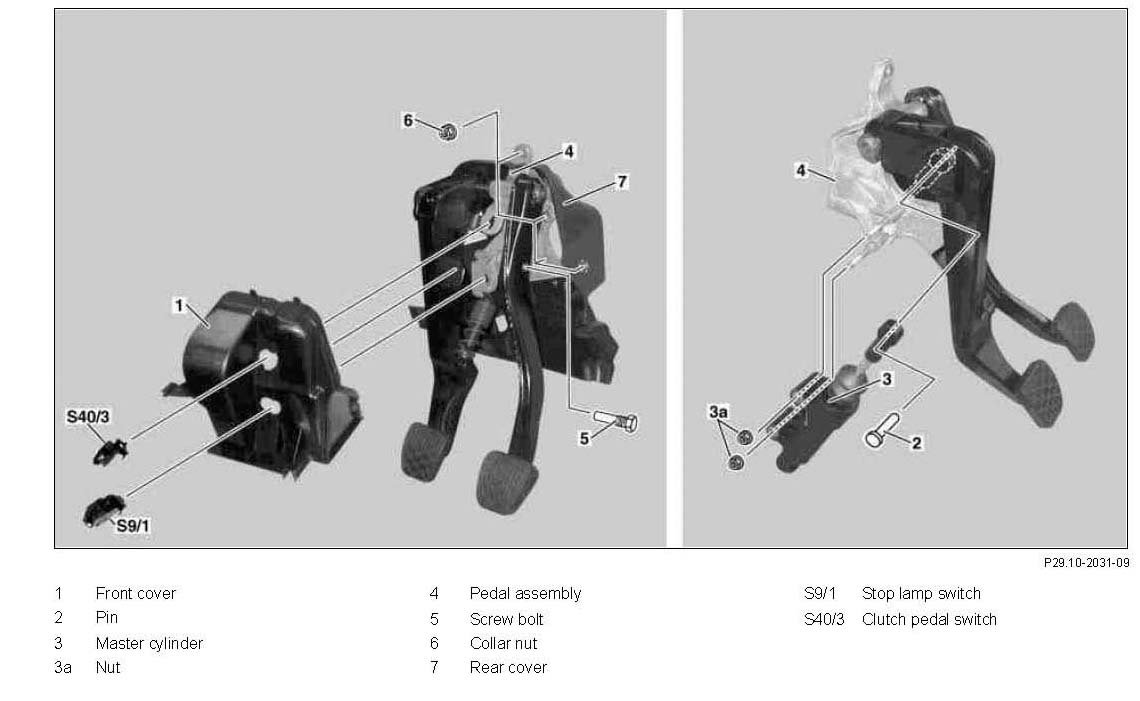

AR29.10-P-0300T Remove/Install Pedal Assembly




AR29.10-P-0300T Remove/Install Pedal Assembly
- with transmission 716.6
- except CODE (424) Sequentronic (SEQ)
