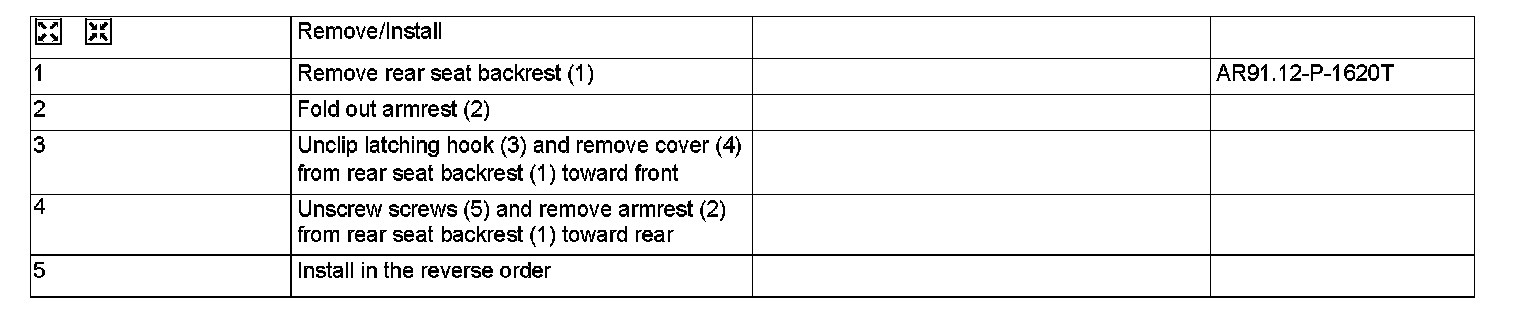

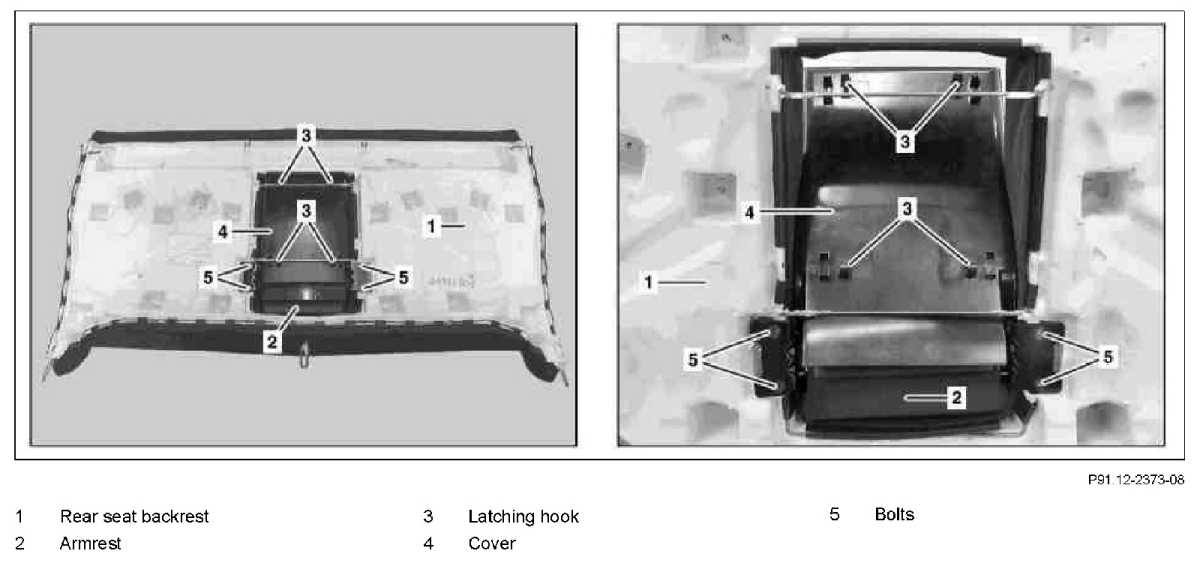

AR91.12-P-1745T Remove/Install Rear Seat Backrest Armrest



AR91.12-P-1745T Remove/Install Rear Seat Backrest Armrest
- except CODE (287a) Through-loading feature
