AR91.10-P-1200TD Remove/Install Front Seat Frame Trim Panels



AR91.10-P-1200TD Remove/Install Front Seat Frame Trim Panels
- Inner paneling

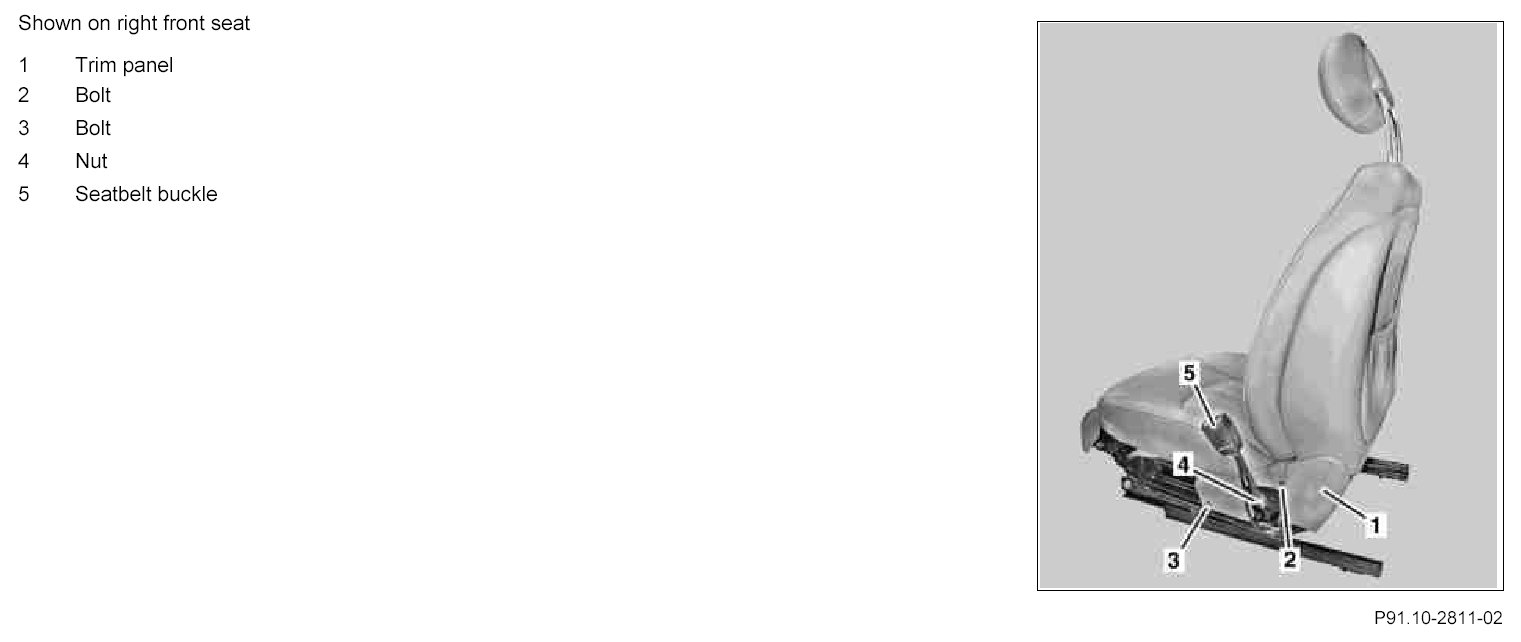

Component Identification:

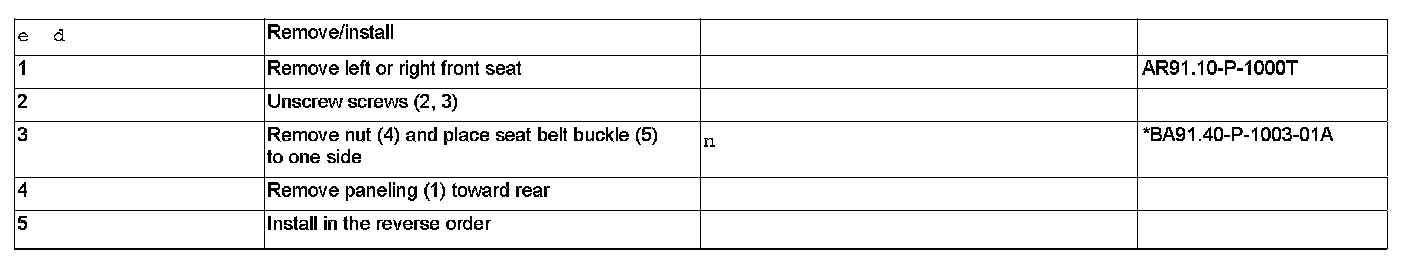

Steps 1 - 5:

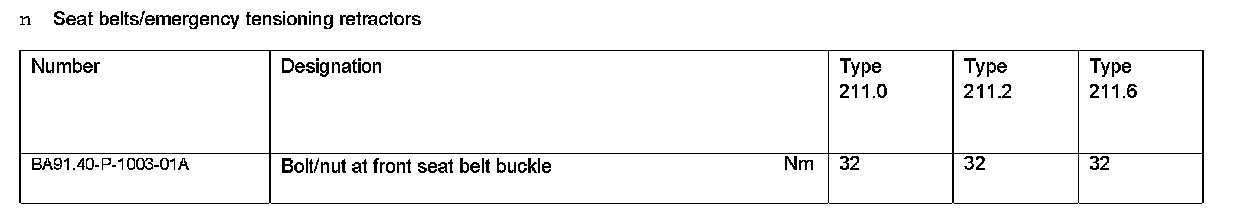

Seat Belt/Emergency Tensioning Retractors:
