AR91.10-P-1200TC Remove/Install Front Seat Frame Trim Panels



AR91.10-P-1200TC Remove/Install Front Seat Frame Trim Panels
- Outer paneling

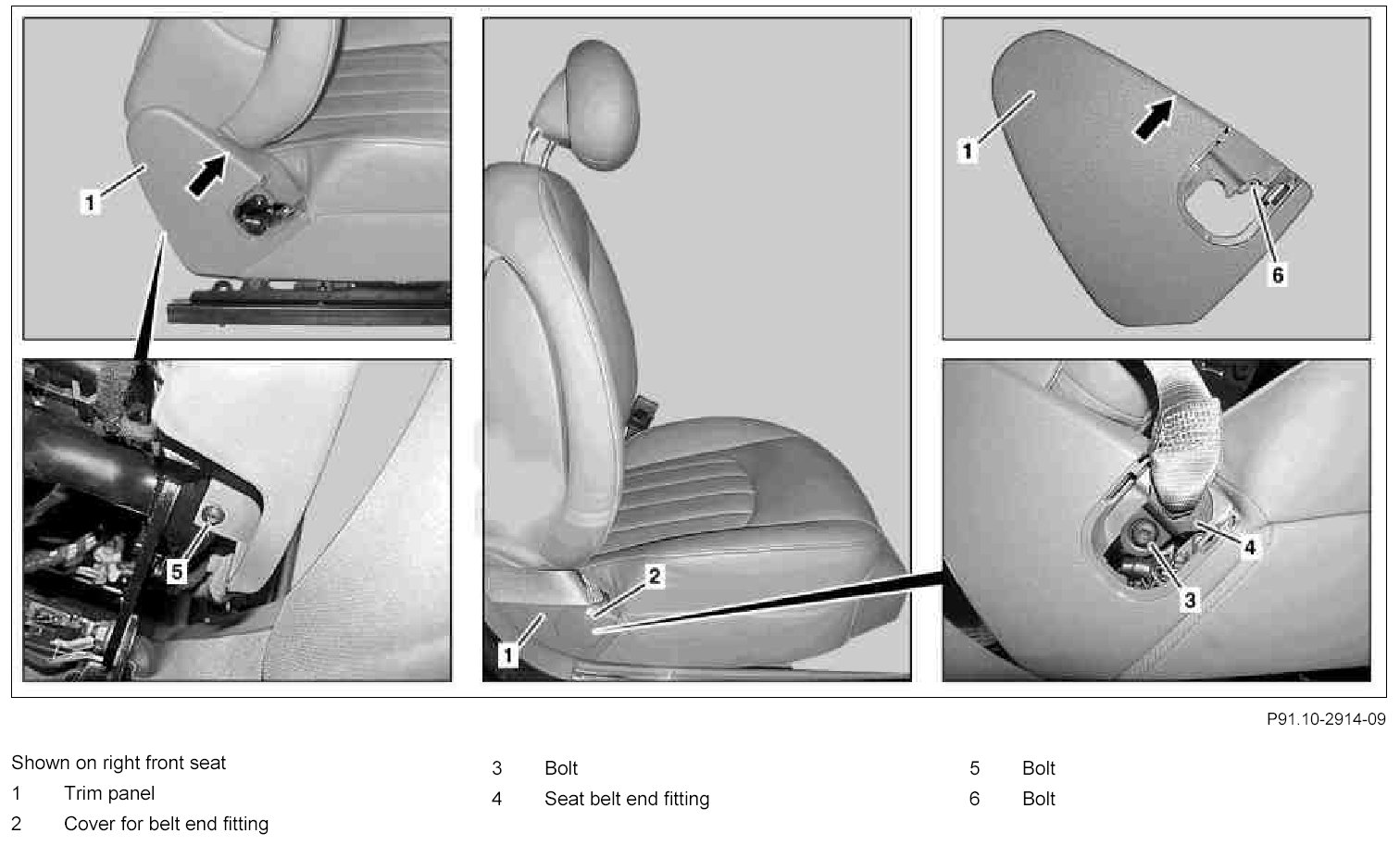

Component Identification:

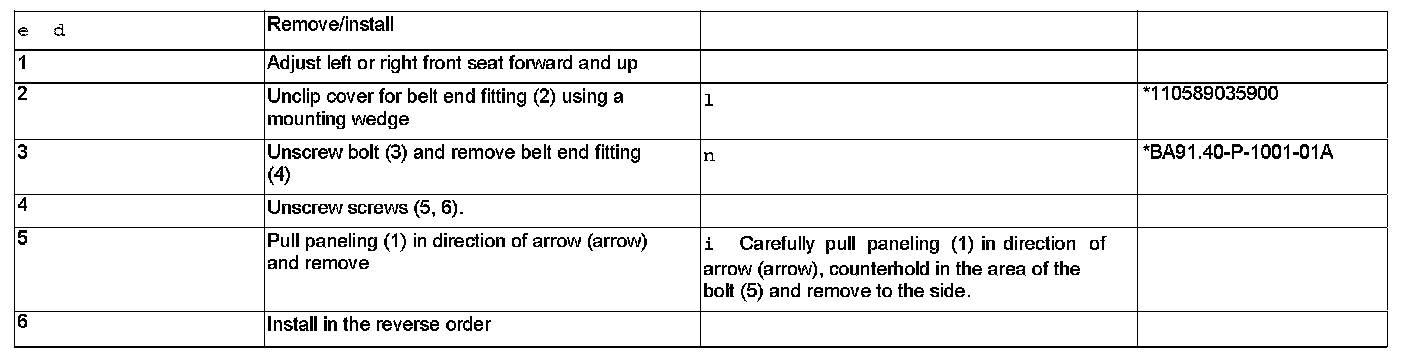

Steps 1 - 6:

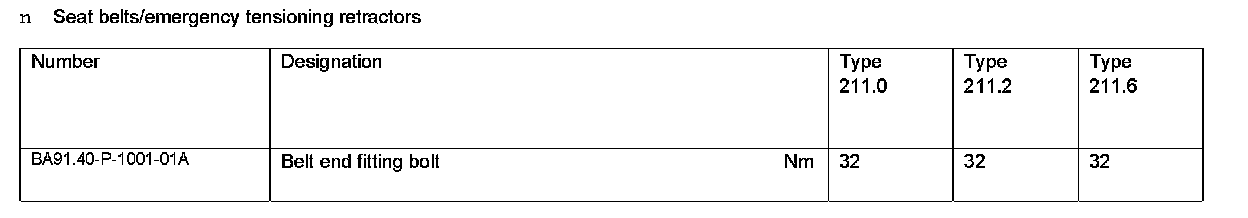

Seat Belts/Emergency Tensioning Retractors:

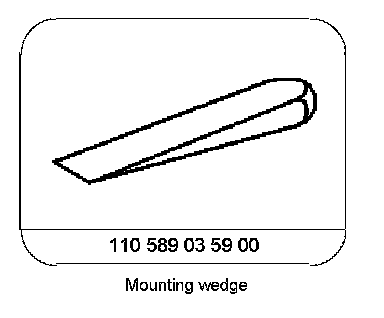

Special Tools:
