Seat Latch: Service and Repair

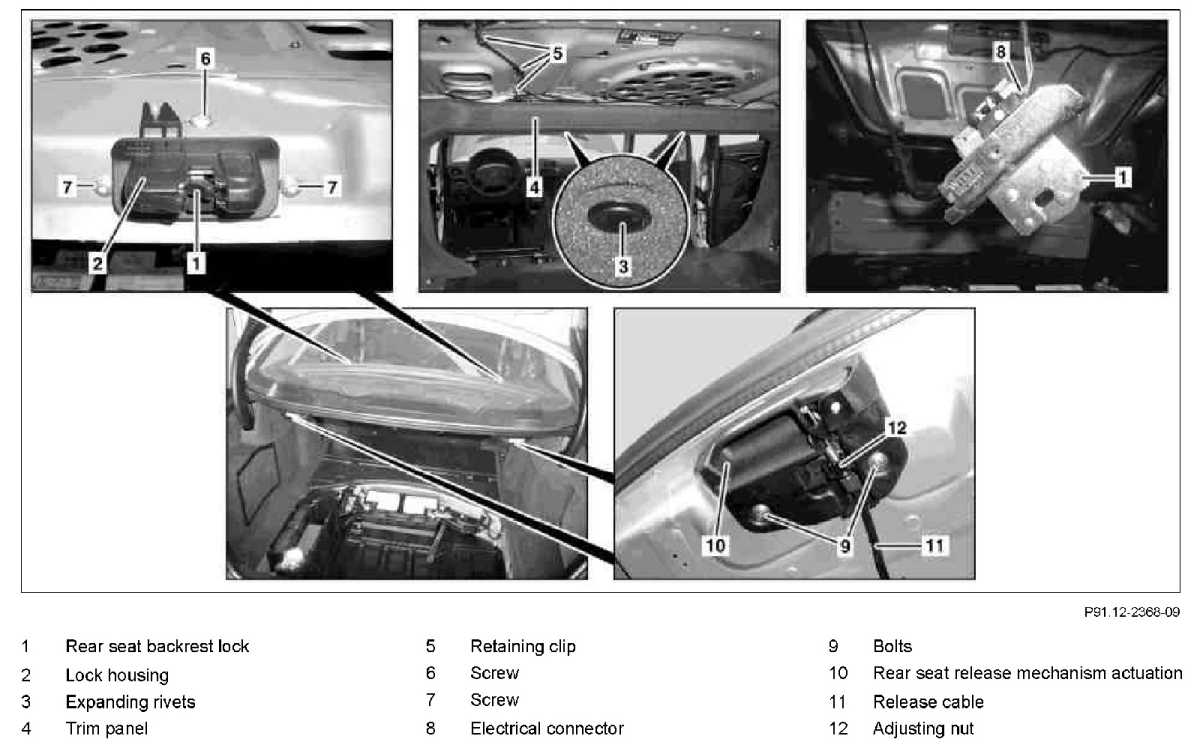

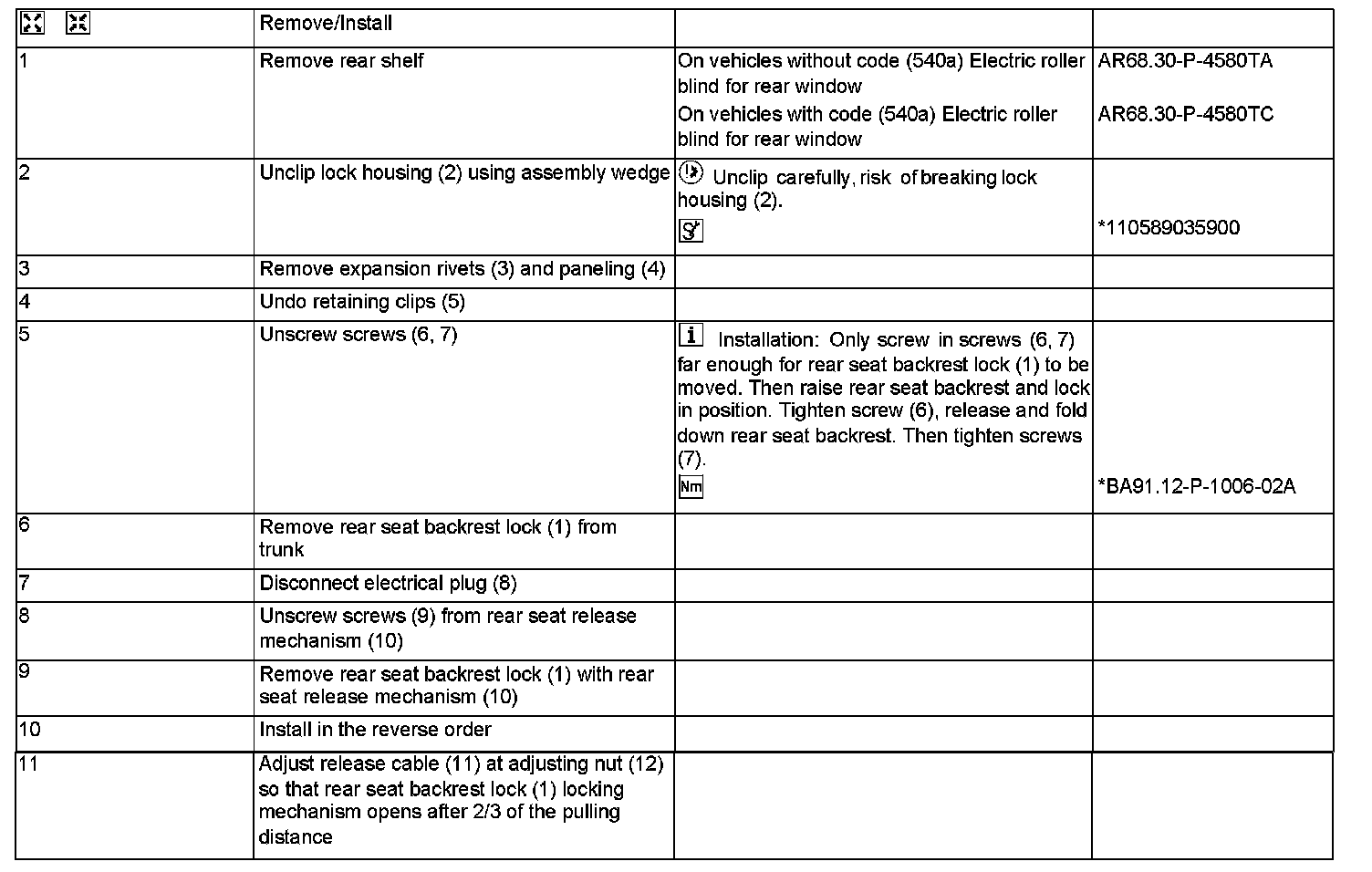

AR91.12-P-1730T Remove/Install Locking Mechanism For Folding Rear Seat Backrest
- with CODE (287a) Through-loading feature

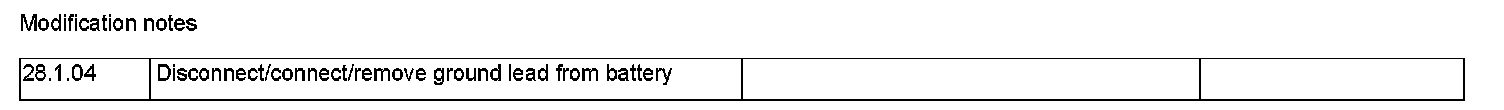

Modification Notes:

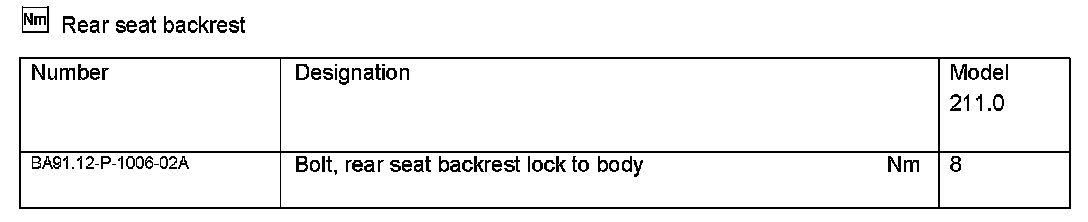

Rear Seat Backrest:
