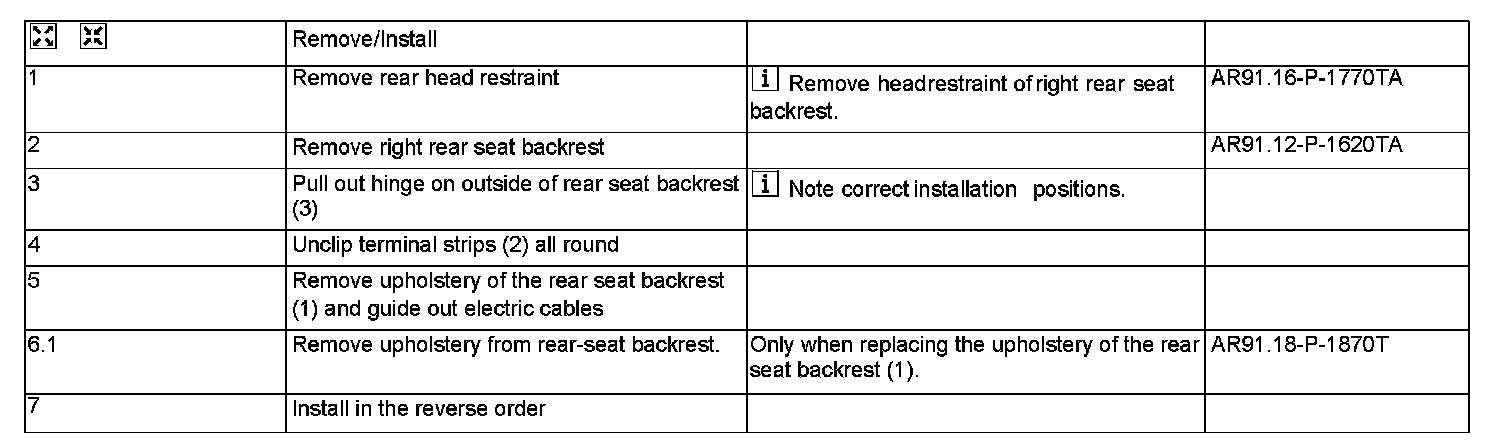

AR91.12-P-1030TB Remove/Install Upholstery For Right Rear Seat Backrest



AR91.12-P-1030TB Remove/Install Upholstery For Right Rear Seat Backrest

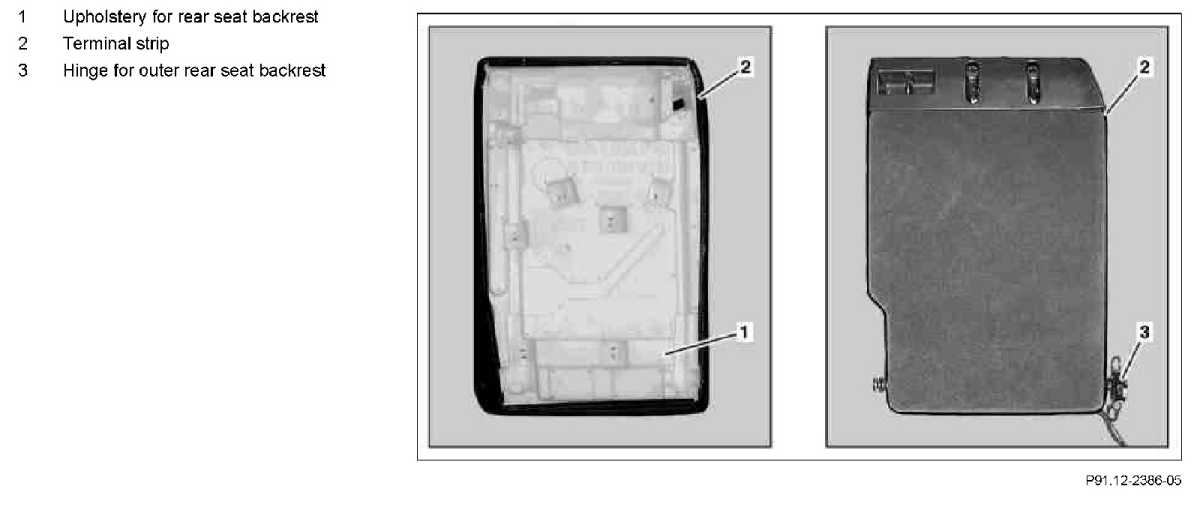

- Right rear seat backrest
- with CODE (287a) Through-loading feature
