AR91.10-P-3334TA Remove/Install Seat Cushion Frame
AR91.10-P-3334TA Remove/Install Seat Cushion Frame
AR91.10-P-3334TA Remove/Install
Seat Cushion
Frame

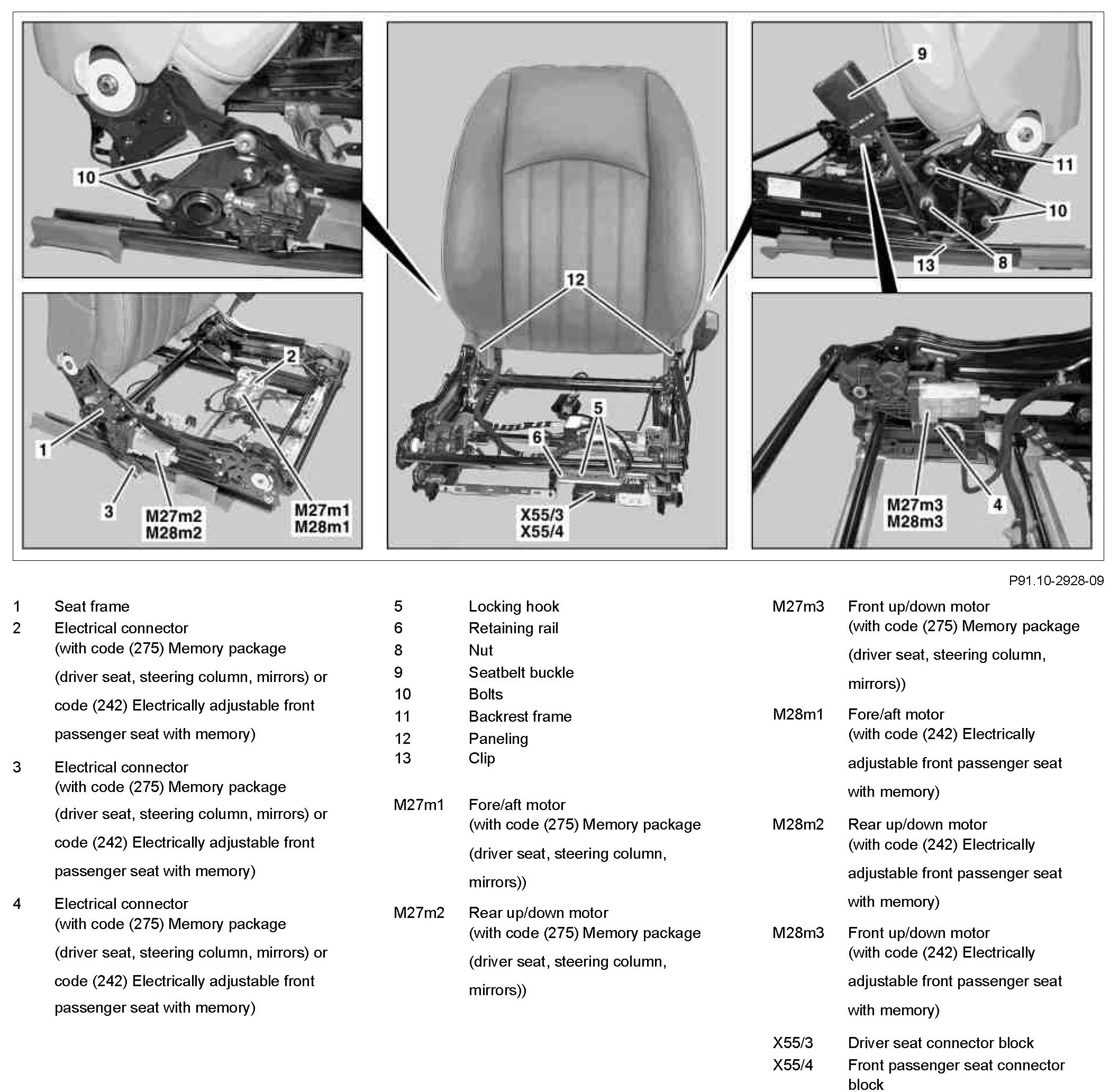

Component Identification:

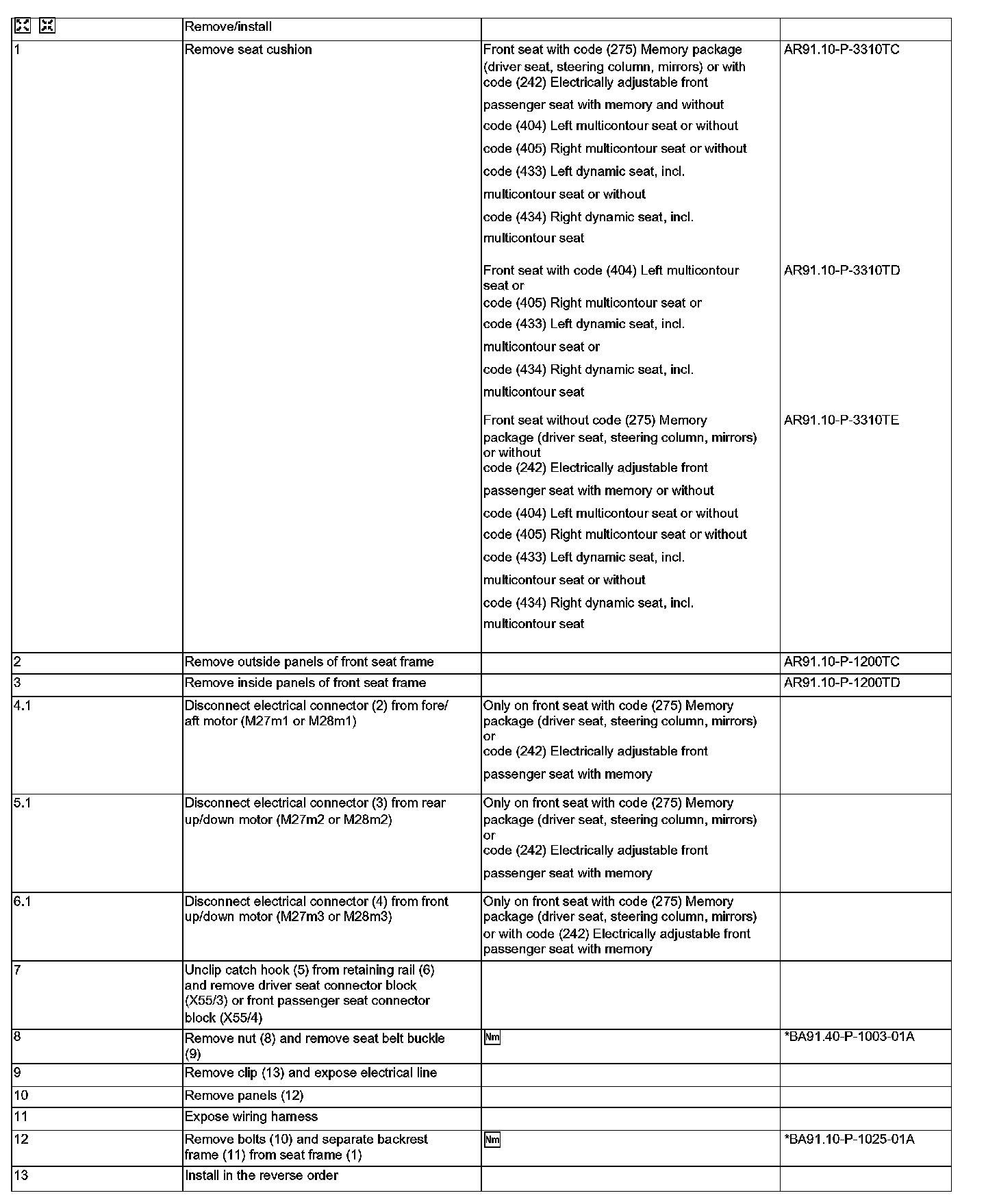

Steps 1 - 13:

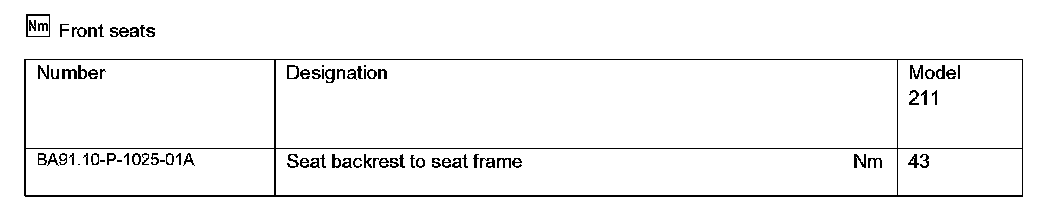

Front Seats:

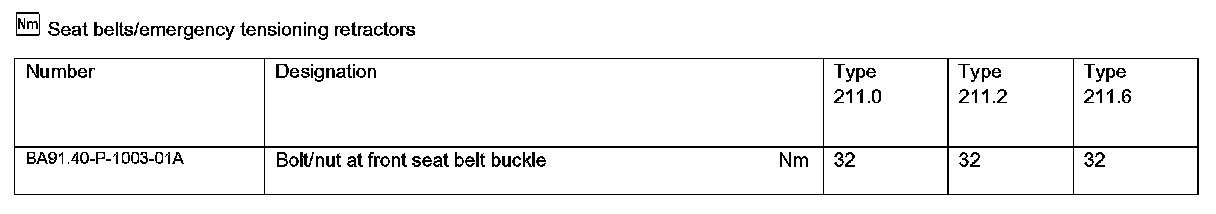

Seat Belts/emergency Tensioning Retractors:
