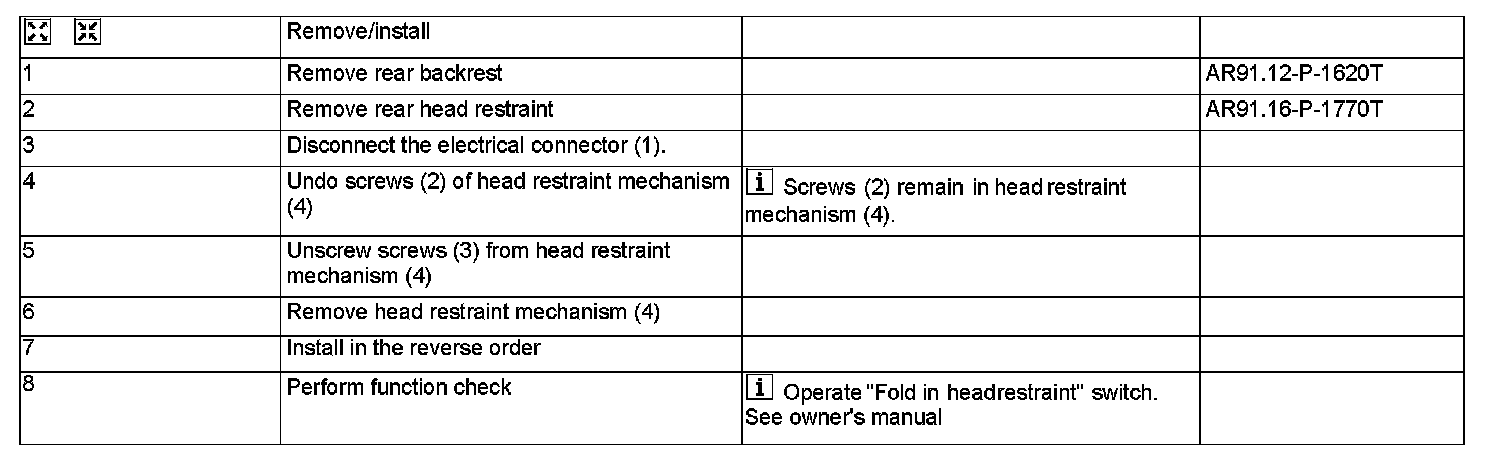

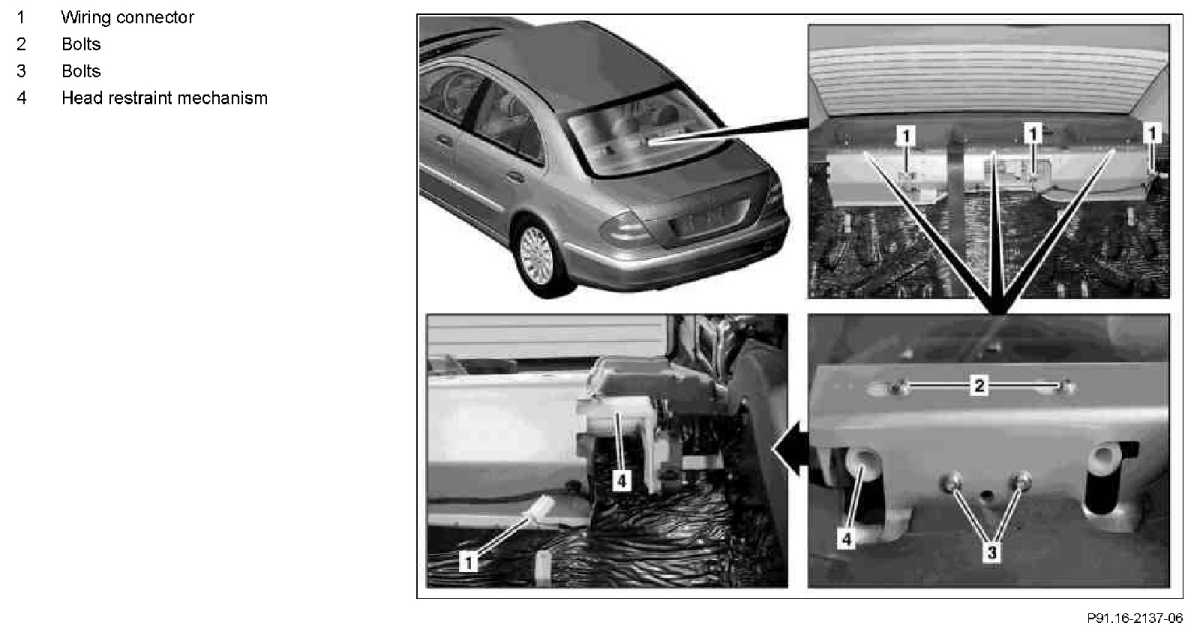

AR91.16-P-1780T Remove/Install Rear Head Restraint Mechanical System



AR91.16-P-1780T Remove/Install Rear Head Restraint Mechanical System
- except CODE (287a) Through-loading feature
