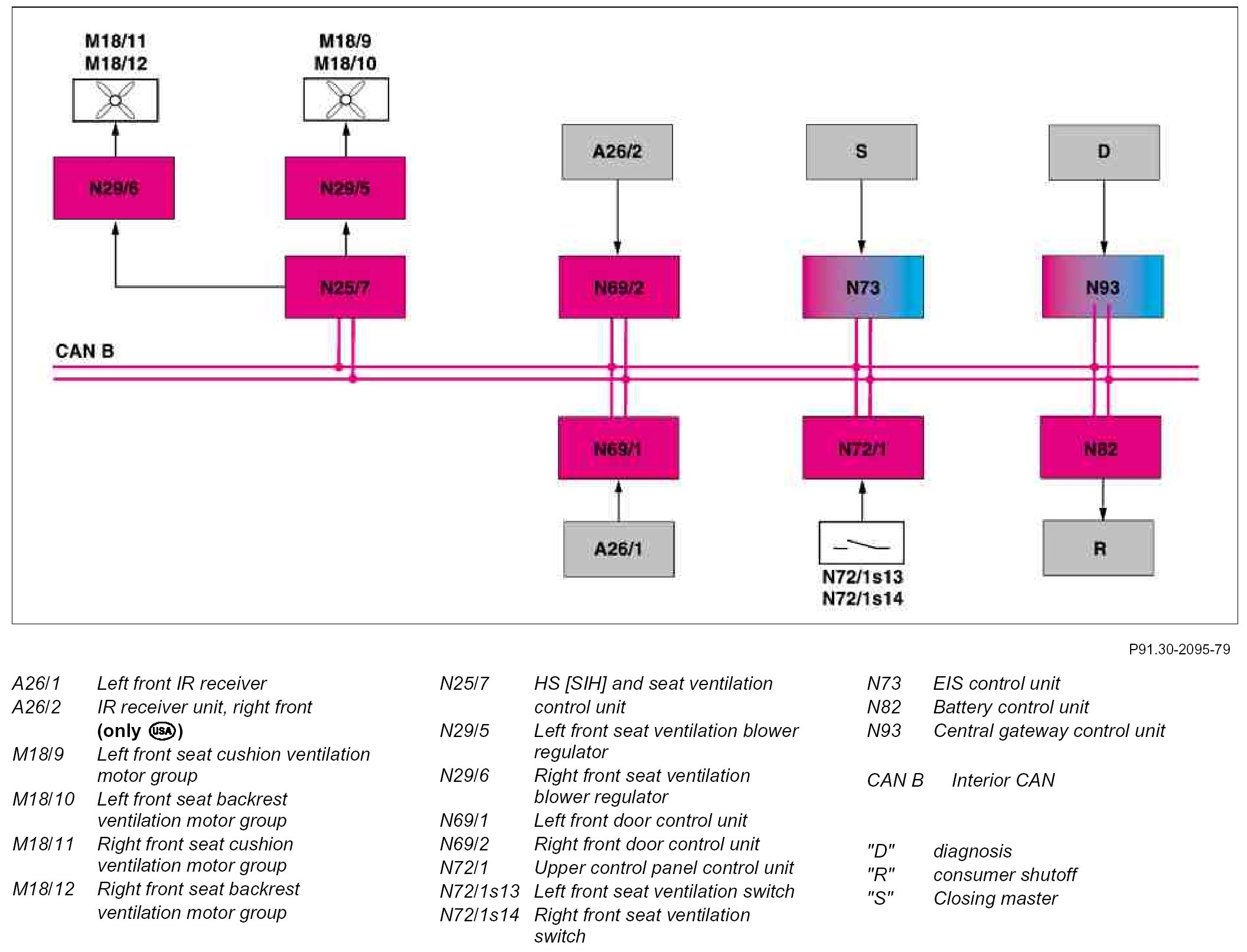

GF91.30-P-0002-01T Electric Seat Ventilation, Networking of Components



GF91.30-P-0002-01T Electric Seat Ventilation, Networking Of Components
- with CODE (401a) Front luxury seats, including seat heating and seat ventilation


Component Identification:
