AR77.21-P-0430T Remove/Install Panoramic Roof Drive Guide Rail

AR77.21-P-0430T Remove/Install Panoramic Roof Drive Guide Rail
- with CODE (413) Panorama sliding roof
- with CODE (419) Solar module for panoramic roof

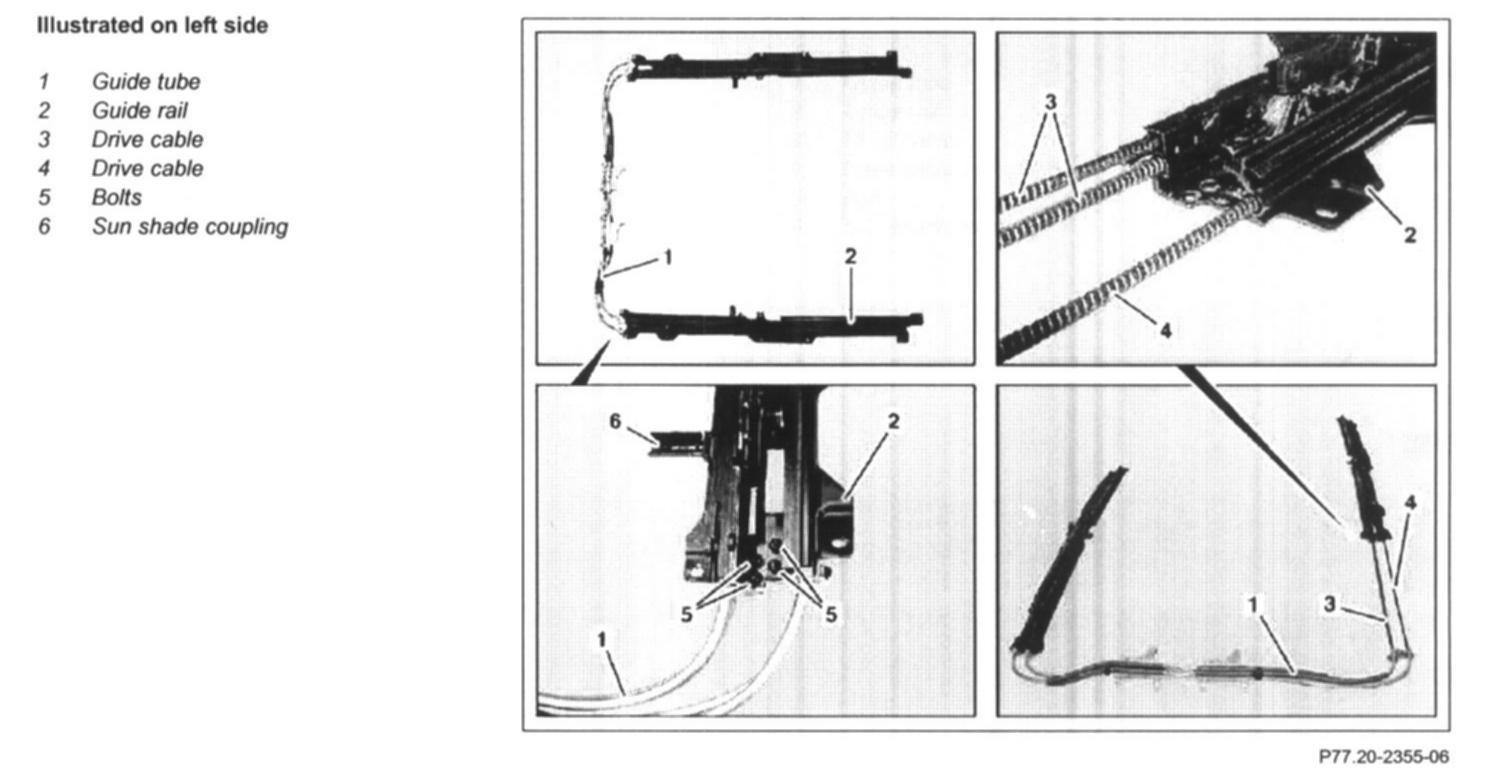

Illustrated On Left Side:

1 Remove panoramic roof drive
2 Push sun shade coupling (6) out of the guide rail (2) to the front

NOTE: Note correct installation position.

3 Unscrew screws (5)
4 Pull guide rail (2) out of guide tube (1) until the drive cables (3, 4) are accessible

NOTE: Note correct installation position.

5 Pull drive cable (4) out of guide tube (1)

NOTE: Note correct installation position.

6 Pull drive cable (3) out of guide rail (2) and place guide tube (1) aside

NOTE: Note correct installation position.

7 Install in the reverse order
