AR88.70-P-9080TM Remove/Install Paneling on Mirror Triangle
AR88.70-P-9080TM Remove/Install Paneling on Mirror Triangle
AR88.70-P-9080TM Remove/Install Paneling On Mirror Triangle

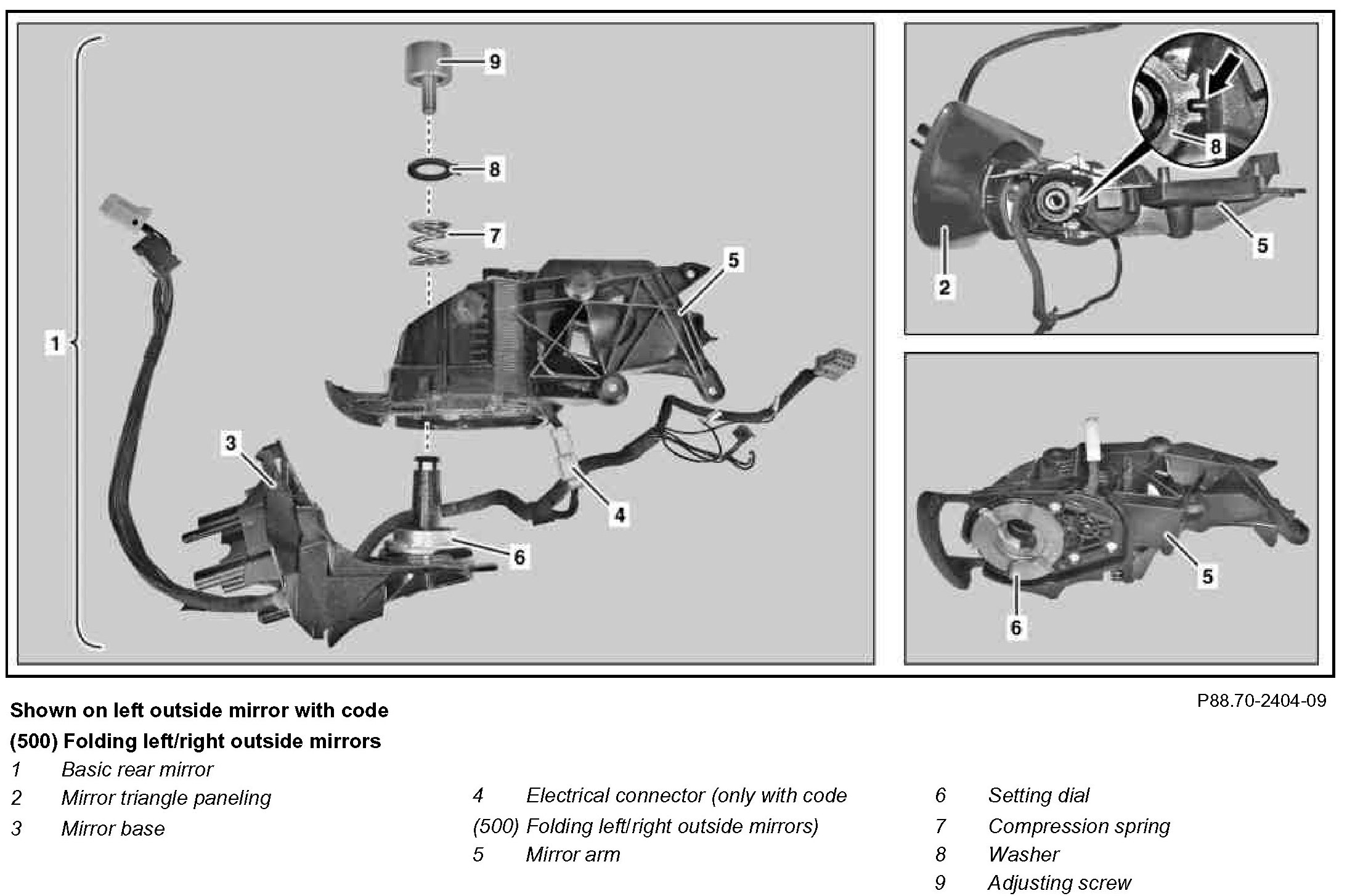

Component Identification:

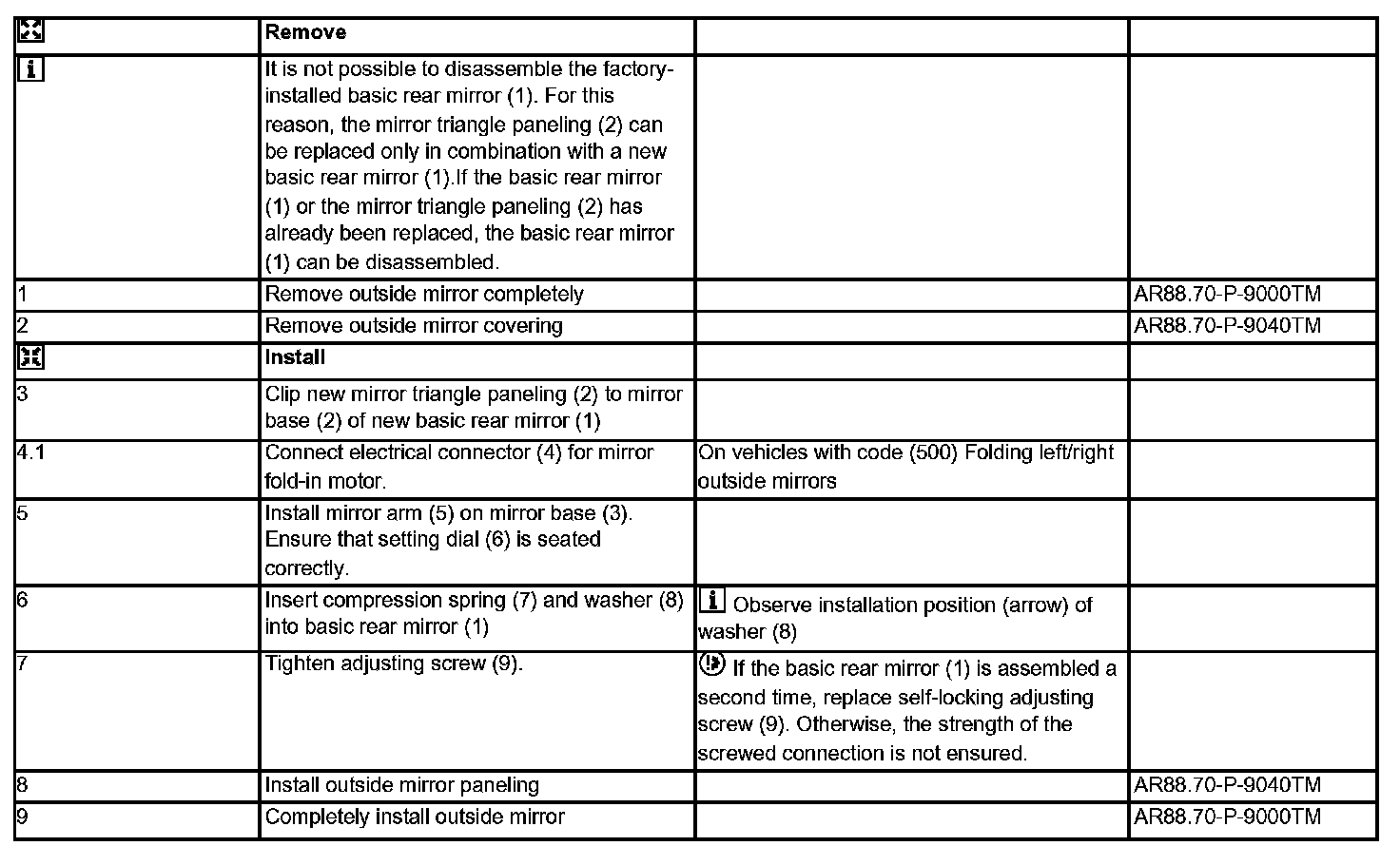

Steps 1 - 9:
