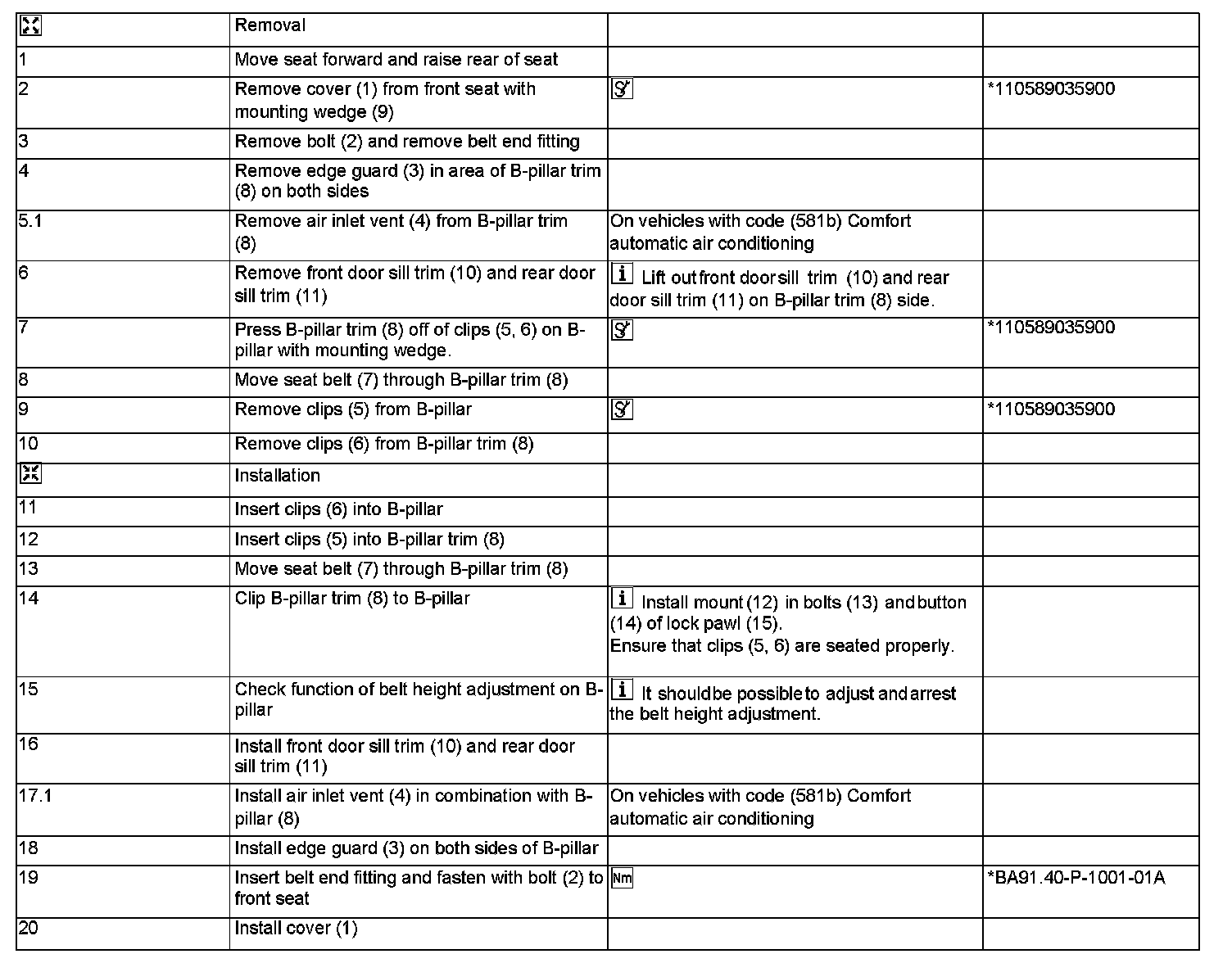

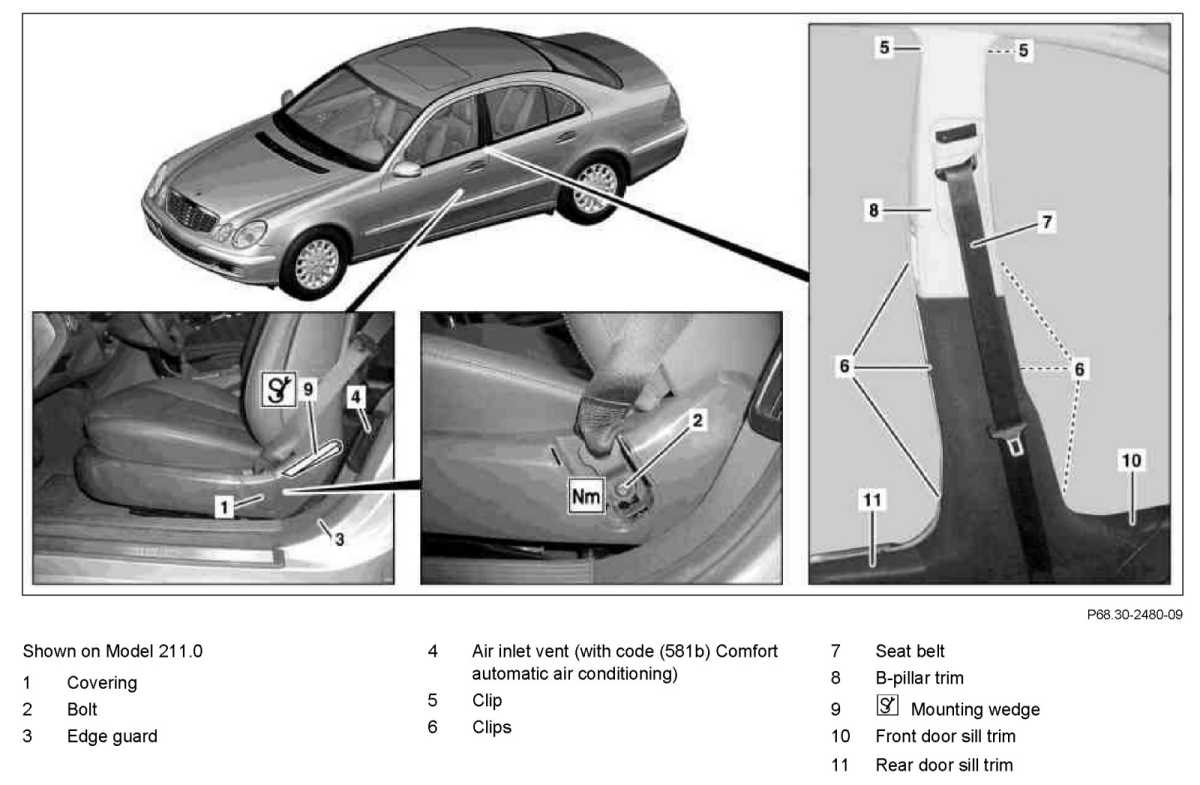

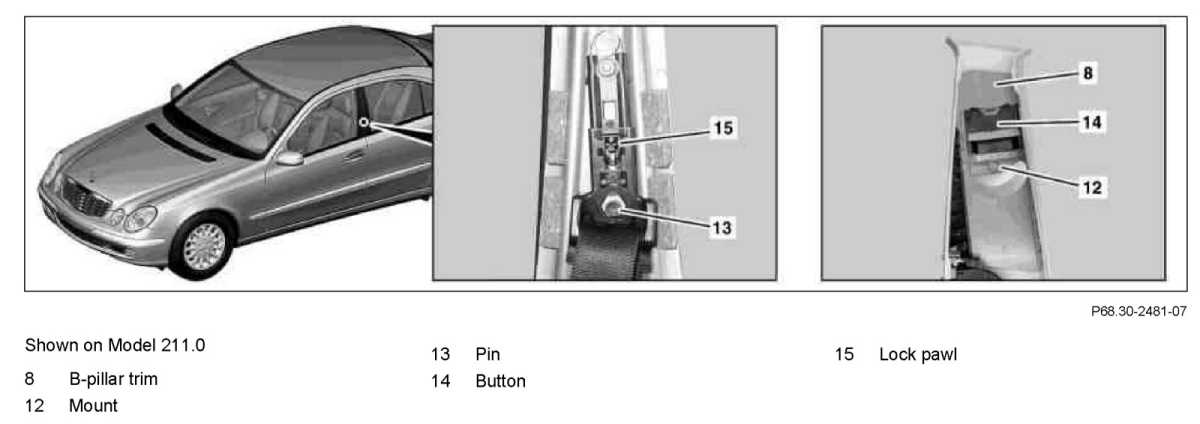

AR68.30-P-4700T Remove/Install Trim on B-Pillar
AR68.30-P-4700T Remove/Install Trim on B-Pillar
AR68.30-P-4700T Remove/Install Trim on B-Pillar
Modification Notes:

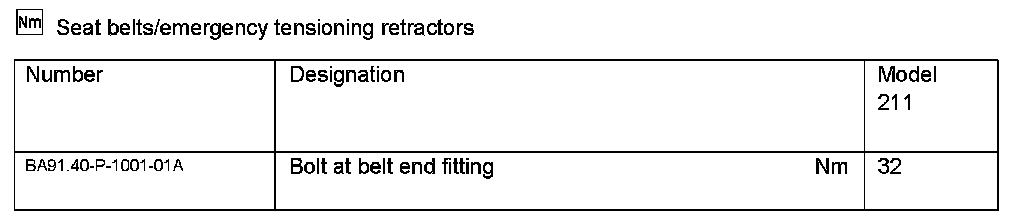

Seat Belts/Emergency Tensioning Retractors:
