AR68.30-P-4305-04T Install Rear Dome Lamp Wiring Harness In Headliner

AR68.30-P-4305-04T Install Rear Dome Lamp Wiring Harness In Headliner

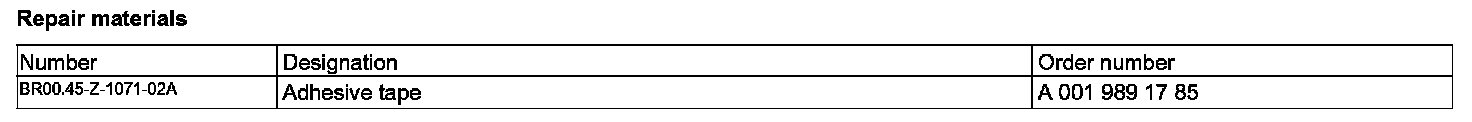

Repair Materials:

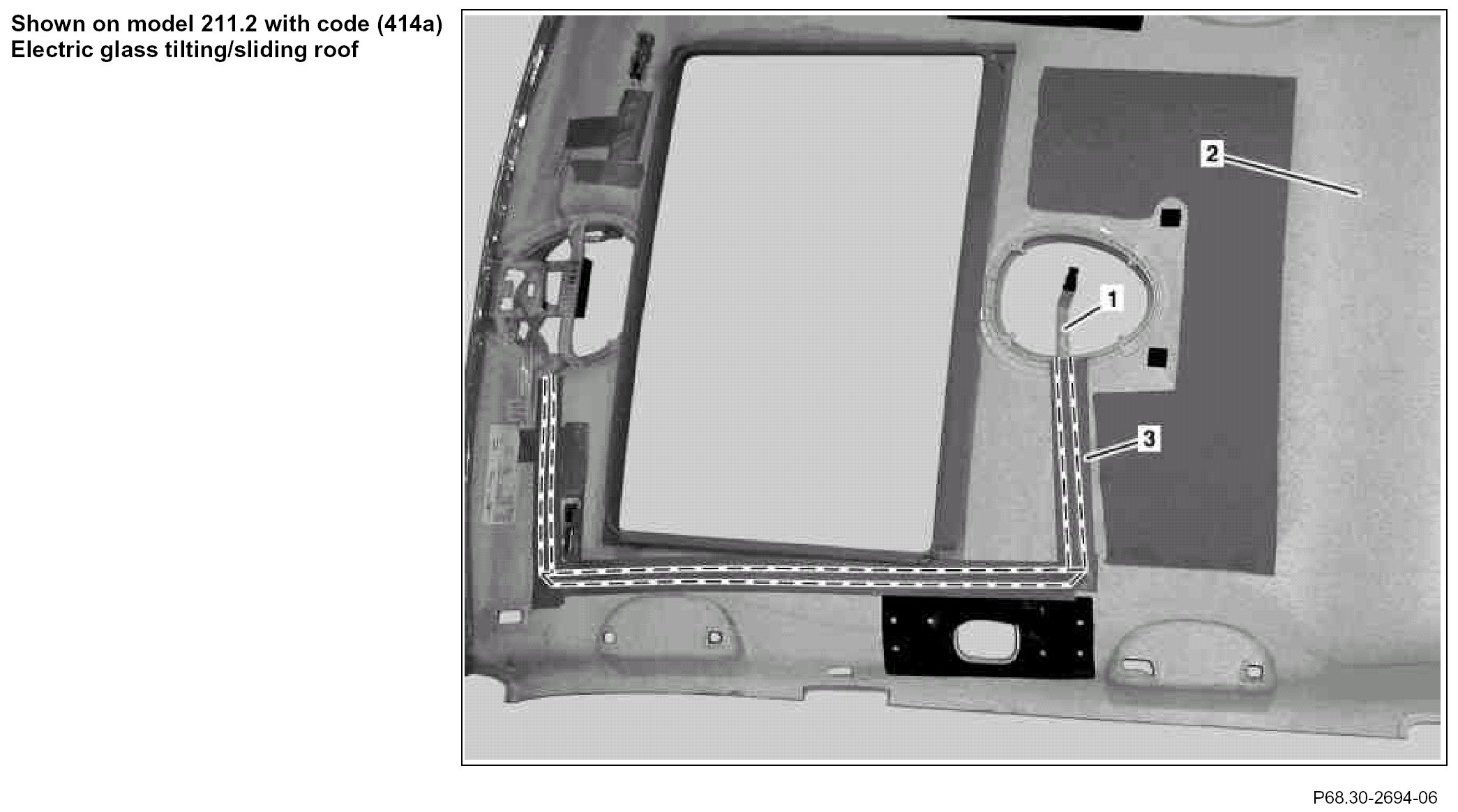

1. Position dome lamp wiring harness (1) on new headliner (2).
Observe marking "UP" at dome lamp wiring harness (1).

2. Route dome lamp wiring harness (1) according to routing of old headliner (2) without kinks and glue to new headliner (2) with adhesive tape (3).
Firmly press on adhesive tape (3), otherwise the adhesive tape (3) can detach itself from the headliner (2).
