FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Headliner
>>
Service and Repair
>>
Removal and Replacement
>>
AR68.30-P-4300TA Remove/Install Headliner
AR68.30-P-4300TA Remove/Install Headliner
AR68.30-P-4300TA Remove/Install
Headliner
- with CODE (414) Power glass tilting/sliding roof

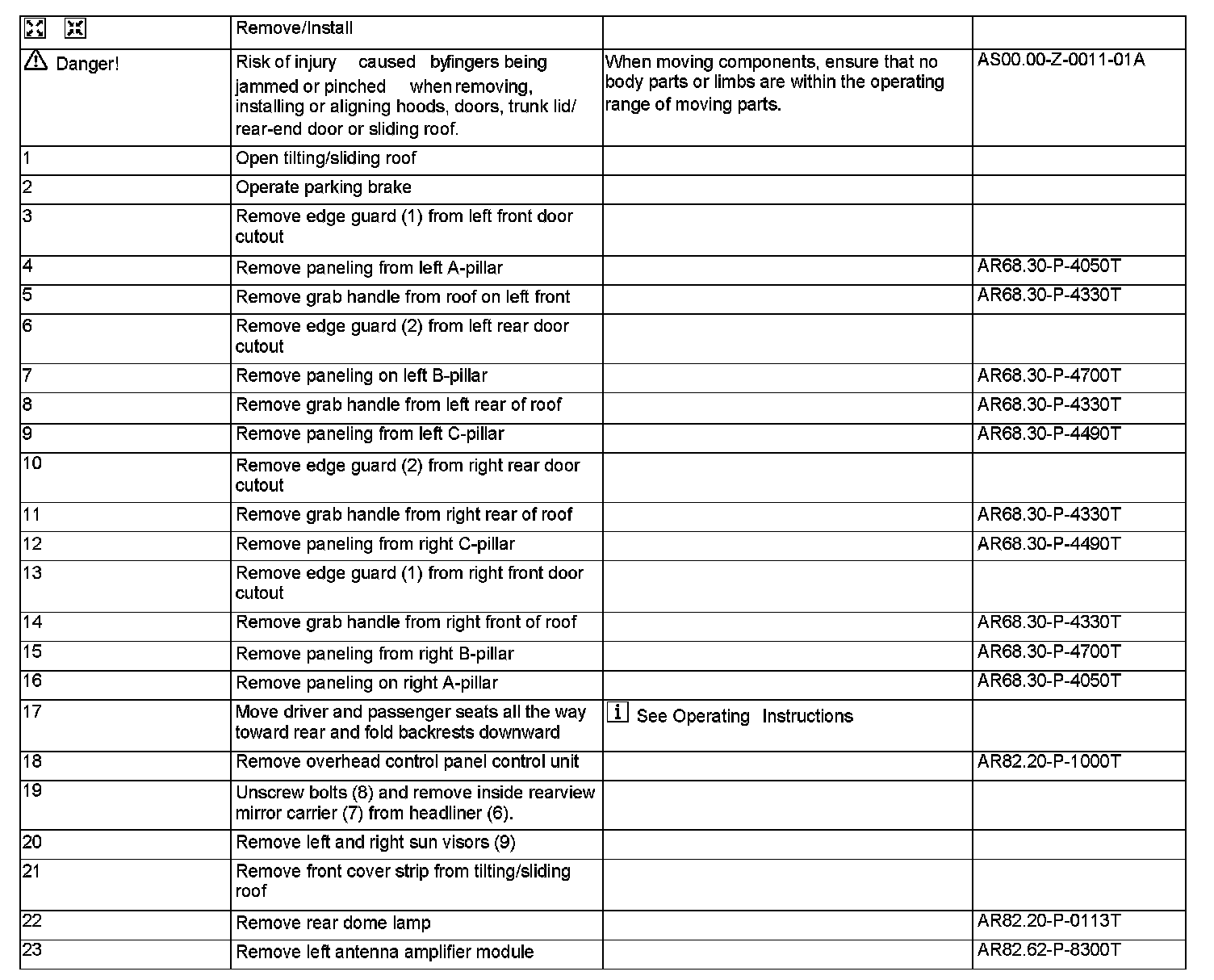

Part 1:

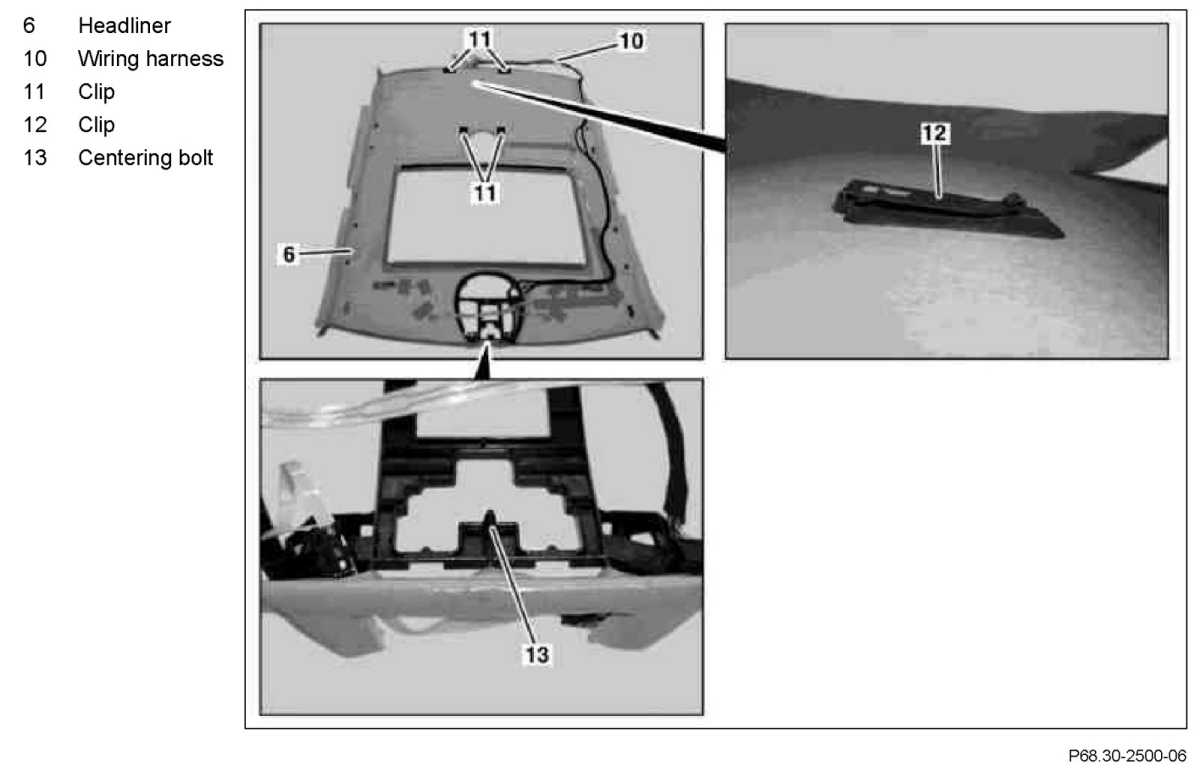

Part 2:
